GTH-1056

Telehandlers

gth-1056_Top Photo

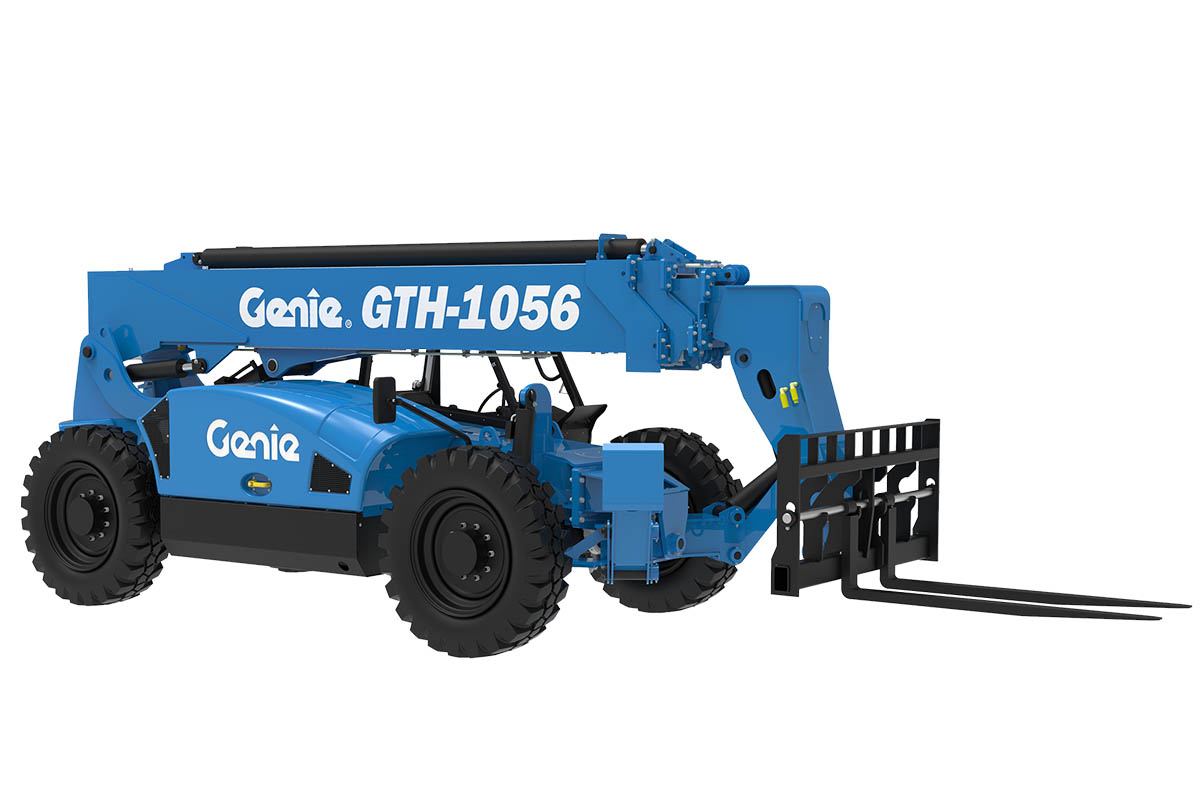

The new Genie® GTH-1056 telehandler. Extensively field tested to validate performance, the GTH-1056 has been purposefully designed to lower total cost of ownership by 10% while delivering 20% more lift capacity at max height in a machine with a 30% stronger design. The GTH-1056 builds on popular features found on the proven GTH-636 and GTH-846 models, including a side-mounted engine and stronger boom design, to deliver a rugged, reliable telescopic handler with a 10,000 lb (4,536 kg) capacity.

Overview

  • 74 HP, DEF-free engine option offering a low-maintenance solution

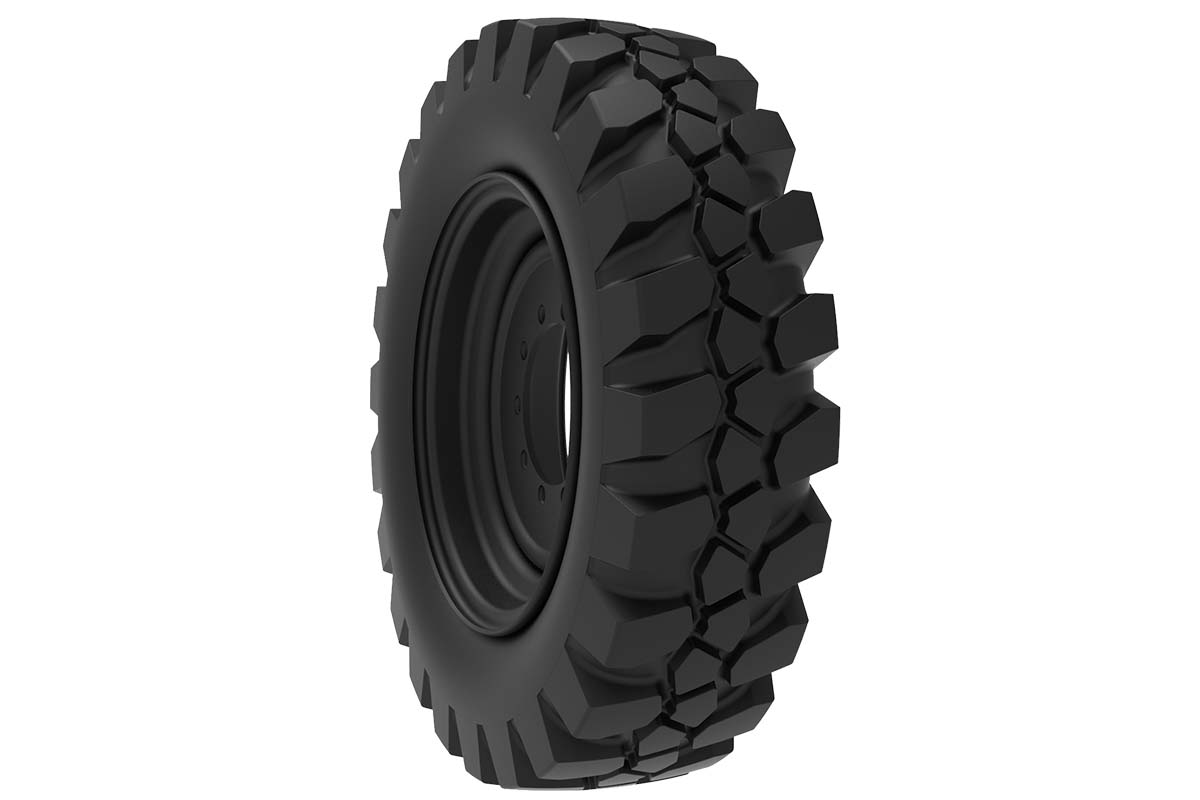

  • New long-life Enduro A/T tires, a hybrid, all-terrain tread design exclusive to Genie
  • Able to lift 5,000 lbs. (2,268 kg) at maximum height of 56 ft. 7 in. (17.25 m), and 3,000 lbs.



Specification Value
Max Lift Capacity 10,000 lb | 4,536 kg
Max Lift Height 56 ft 10 in | 17.32 m
Max Forward Reach 42 ft | 12.80 m
Capacity at Max Height 4,000 lb | 1,814 kg
Capacity at Max Reach 3,000 lbs | 1,361 kg
gth-1056_load-imp 2021

Cab Configuration

  • Front and top glass
  • Fully enclosed cab:  full glass, heater, defroster, wipers, washer and split door
  • Fully enclosed cab with air conditioner:  full glass, heater, defroster, wipers, washer and split door

Tire Options

  • Foam-filled rough terrain tires
  • Solid rough terrain tires

Carriage/Attachment Options

  • 48 in. manual Quick-Attach™ carriage
  • 60 in. QA carriage
  • 72 in. QA carriage
  • 48 in. QA side tilt (rotating) carriage
  • 60 in. QA side tilt (rotating) carriage
  • 72 in. QA swing carriage (45 deg L/R)
  • 14 ft.QA Variable reach truss boom

Fork Options

  • 48 in. pallet forks (2 x 4 x 48 in.)
  • Set of two 60 in. pallet forks,  2 x 4 x 60 in.
  • Set of two 72 in. pallet forks, 2 x 4 x 72 in.
  • Set of two 60 in. lumber forks, 1.75 x 7 x 60 in.
  • Set of six 48 in. cubing tines,  2 x 2 x 48 in.

Accessories

  • Electric block heater
  • Dual joystick control
  • Fire extinguisher
  • Flashing beacon
  • Right side steel mesh screen for open canopy
  • Work lights:   High output LED cab, boom, rear
  • Road and Work lights:   Work lights and front turn/headlights, rear stop/turn/tail
  • Rear proximity alarm
  • Rear proximity alarm ready
