Boom & Scissor Lift Accessories

Designed to help eliminate clutter and potential tripping hazards for operators in a platform.

Provides operators and workers with a convenient place to store their tools, fasteners and small materials in the platform.

• 1275089GT

Like a traditional tonal alarm, the new White Noise Alarm sounds when a mobile elevating work platform travels forward or in reverse, or moves up or down.

• Factory fit available:
  GS™-30 series, 32 series, 46 series, GS-4655
  Z®-40- Parts #1313257GT
  GTH™ Telehandlers

• GS-69 DC/RT, GS-90 Series
  S® Telescopic Booms
  Z® Articulating Booms, Except Z-40 -Expected 2023

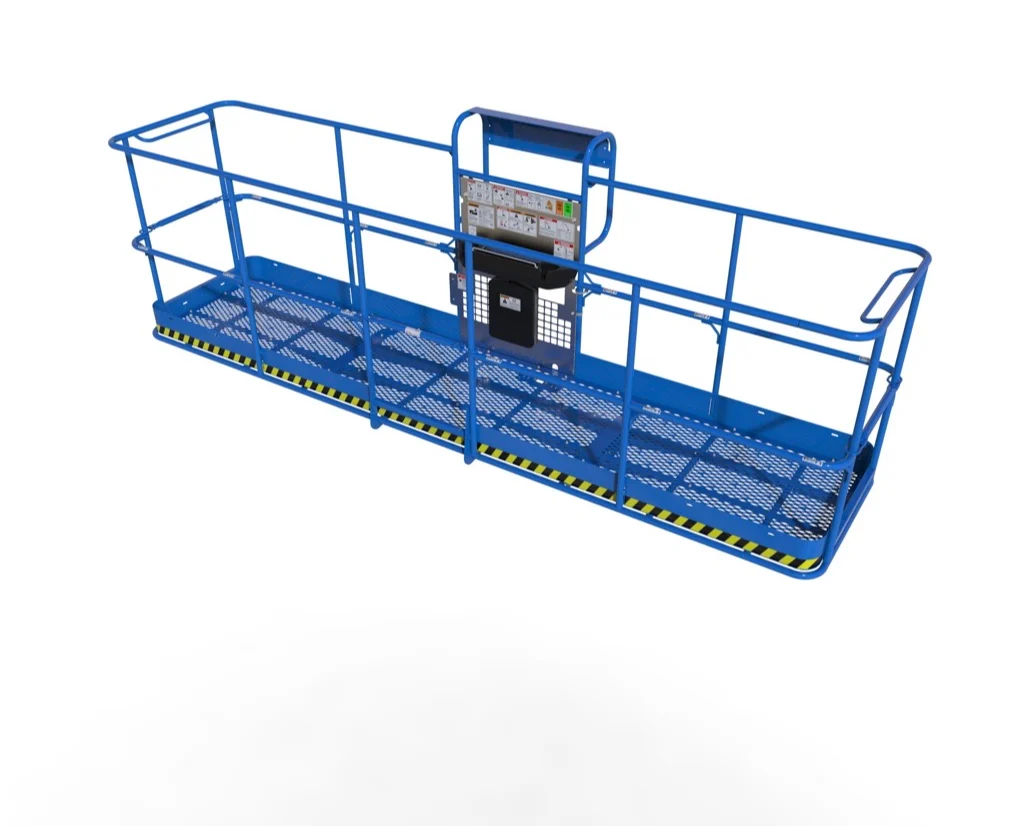

The new extra-large 13 ft / 4 m platform provides the ability to get more work done, faster and more comfortably.

• 1312552GT - Tri-Entry 13 ft | 4 m Platform Kit
  Genie® S®-45 XC™, S-45 TraX™, S-65 XC, S-65 TraX, S-85 XC
• 1312373GT* - Off-Center Transport Lock (OCTL) Kit
  Genie S-45 XC & S-45 TraX
• 1312374GT* - Off-Center Transport Lock (OCTL) Kit
  Genie S-65 XC & S-65 TraX
• 1312375GT* - Off-Center Transport Lock (OCTL) Kit
  Genie S-85 XC

Designed to make operators more efficient when working at height, the Genie^® Lift Tools™ Expo Installer allows for precise, easy placement of signs, banners and hanging décor. Ideal for use in convention centers, arenas, malls, theaters and other locations that decorate with suspended ornamentation, this new accessory helps to maximize safe productivity while operating Genie booms.

This is an indoor-use only aftermarket accessory, available through Genie Genuine Parts, designed for 6-ft and 8-ft articulating and telescopic boom platforms. This new option allows operators to hang signs, banners and décor at height.

• 1285719GT 6ft KIT ANSI/CSA Word Decals
• 1290034GT 6ft KIT CSA French Decals
• 1288801GT 8ft KIT ANSI/CSA Word Decals
• 1290036GT 8ft KIT French Decals

Works with telescopic and articulating booms from 30 ft to 135 ft

• Motion-shutoff proximity-sensing system under the platform
• High-visibility dense foam padding on railings provides additional protection
• Retrofittable for 6-ft Genie Platforms without a side or swing gate

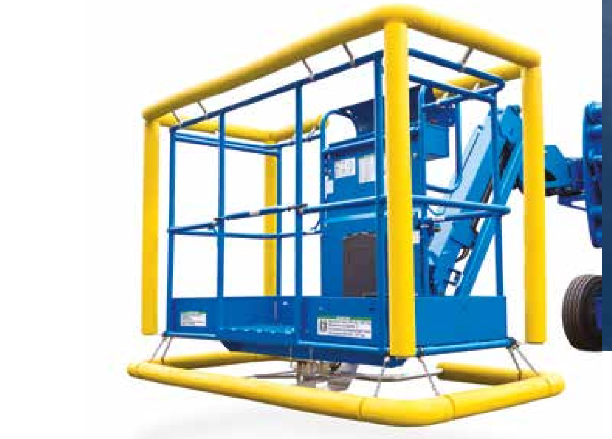

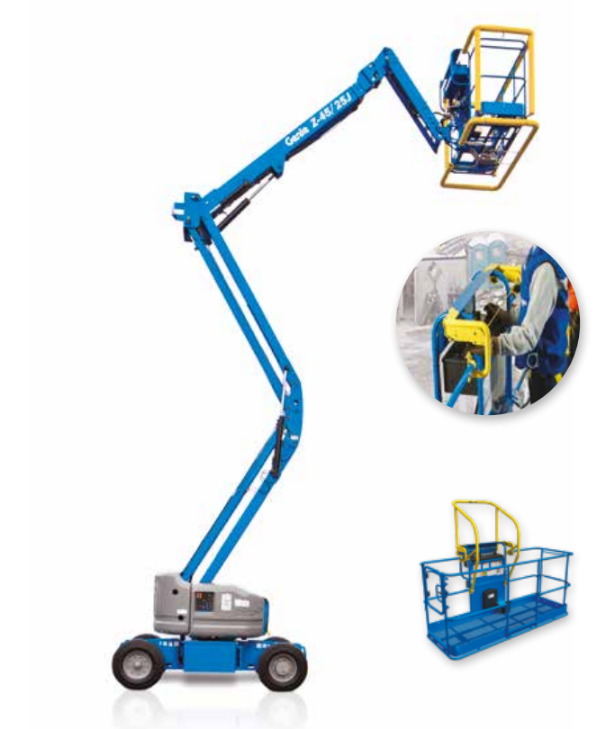

To protect aircraft and other sensitive work sites from damage, the APR package features foam padding to cover top and lateral auxiliary platform rails, plus a padded proximity-sensing rail beneath the platform.

• 1327693GT Kit for 6-ft Standard Platforms without Side or Swing Gate*

AND

• 110657GT, 139882GT and 128203GT for Z-45DC/BE
• 1278025GT for Z-45XC for serial numbers before 2342
• 1314717GT and 128203GT for Z-45XC for serial numbers after 2342
• 1271407GT for Z-45FE/DC & Z-60E
• 28448GT and 128203GT for Z-62
• 228448GT and 128203GT for Z-45IC, Z-60/34, & Z-80
• 81532GT and 128203GT for S-40, S-45, & S-65 TraX
• 1269721GT, 1269734 and 128203GT for S-40/60/65/80XC, & S-60/80J
• 228448GT and 128203GT for S-65
• 1261292GT and 128203GT for S-65 TraX
• 128504GT and 128200GT for SX-135 & SX-125

* 1272303GT front entry 6ft basket can also be ordered to replace an existing platform with a side or swing gate

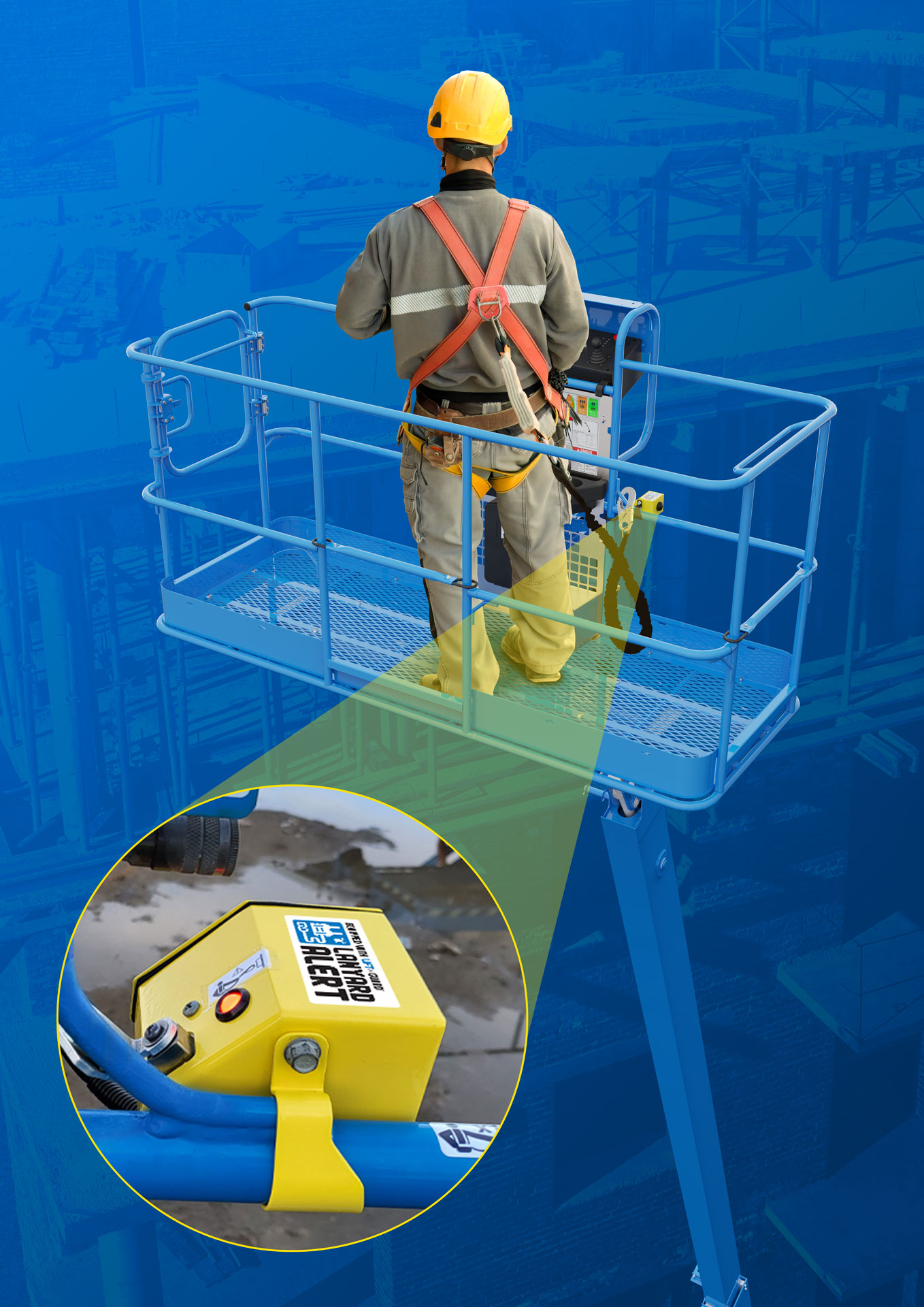

This new secondary guarding system is designed to encourage boom lift operators to attach their harness lanyards to established platform anchor points. It comes in “Alert” and “Advanced” configurations and is comparable to the automotive industry's universal adoption of seatbelt in-use while driving warning systems. Designed for affordability, easy installation and quality, this device is easy for fleets to incorporate, whether large or small, so that it is available to everyone. It can be purchased both as a factory-fit option or as an aftermarket kit, retrofitted to all Genie boom models manufactured as of 2003 and is compatible with industry’s most popular lanyard carabiners (clips). The aftermarket kit can be retrofitted to existing models with basic tools in just under 15 minutes and without altering the machine - simplifying service work and fleet management.

Lift Guard Lanyard Alert provides visual and audible warnings only for jobsites where a simple, automotive-style solution is needed. The Lanyard Alert reminds the operator that the lanyard should be attached but does not prevent or interrupt operation. If the machine is on and the lanyard is not attached, a red light will flash. If the footswitch is enabled and the lanyard is still not attached, an audible alarm will start beeping.

Alternatively, the Advanced configuration provides both visual and audible warnings, as well as operation cut-off to meet employer or jobsite requirements. By combining both an alarm and function cut-off, it is both alerting the operator that the lanyard should be attached and will interrupt operation if it’s not. The red light and audible alarm will remain active until the lanyard is engaged. Additionally, machine functions will be disabled until the lanyard is engaged.

ASSEMBLY, 12V – LIFT GUARD LANYARD ALERT

• 1333585GT – KIT, DTP, 4-PIN, 12V, LGLA – S-60 J, S-80 J
• 1333723GT – KIT, 2-PIN, 12V, LGLA –
  S-40 XC, S-45 XC, S-40 HF, S-45 HF (ALC600),
  S-60 J, S-80 XC, S-80 HF, S-85 HF (ALC600), S-80 J,
  S-100, S-105, SX-105 XC, S-120, S-125 XC, SX-135 XC,
  S-60 XC, S-65 XC, S-60 HF, S-65 HF, S-60 TX (ALC600),
  Z-45, Z-80, ZX-135
• 1333724GT – KIT, EXTENSION, 2-PIN, 12V, LGLA – SX-150, SX-180
• 1333725GT – KIT, 3/4-PIN, 12V, LGLA –
  Z-45, Z-45 N, Z-51, Z-45 XC,
  S-60, S-65, S-60 TX, S-65 TX, S-60 XC,
  S-65 XC (ALC500),
  S-40, S-45 (ALC500), S-80, S-85, S-80 XC (ALC500),
  Z-60/34, Z-62/40,
  Z-34 IC, Z-34 GP
• 1333726GT – KIT, DTP, 4-PIN, 12V, LGLA – Z-34 IC, Z-34 GP

ASSEMBLY, 24V – LIFT GUARD LANYARD ALERT

• 1334019GT – KIT, DTP, 3/4-PIN, 24V, LGLA –
  Z-30, Z-34, Z-30 N, Z-34 N, Z-34 BE, Z-45 DC / BE,
  Z-60 FE / DC
• 1334020GT – KIT, 2-PIN, 24V, LGLA –
  S-60 FE / DC, S-85 XC (HYBRID),
  Z-60/37,
  Z-45 FE / DC

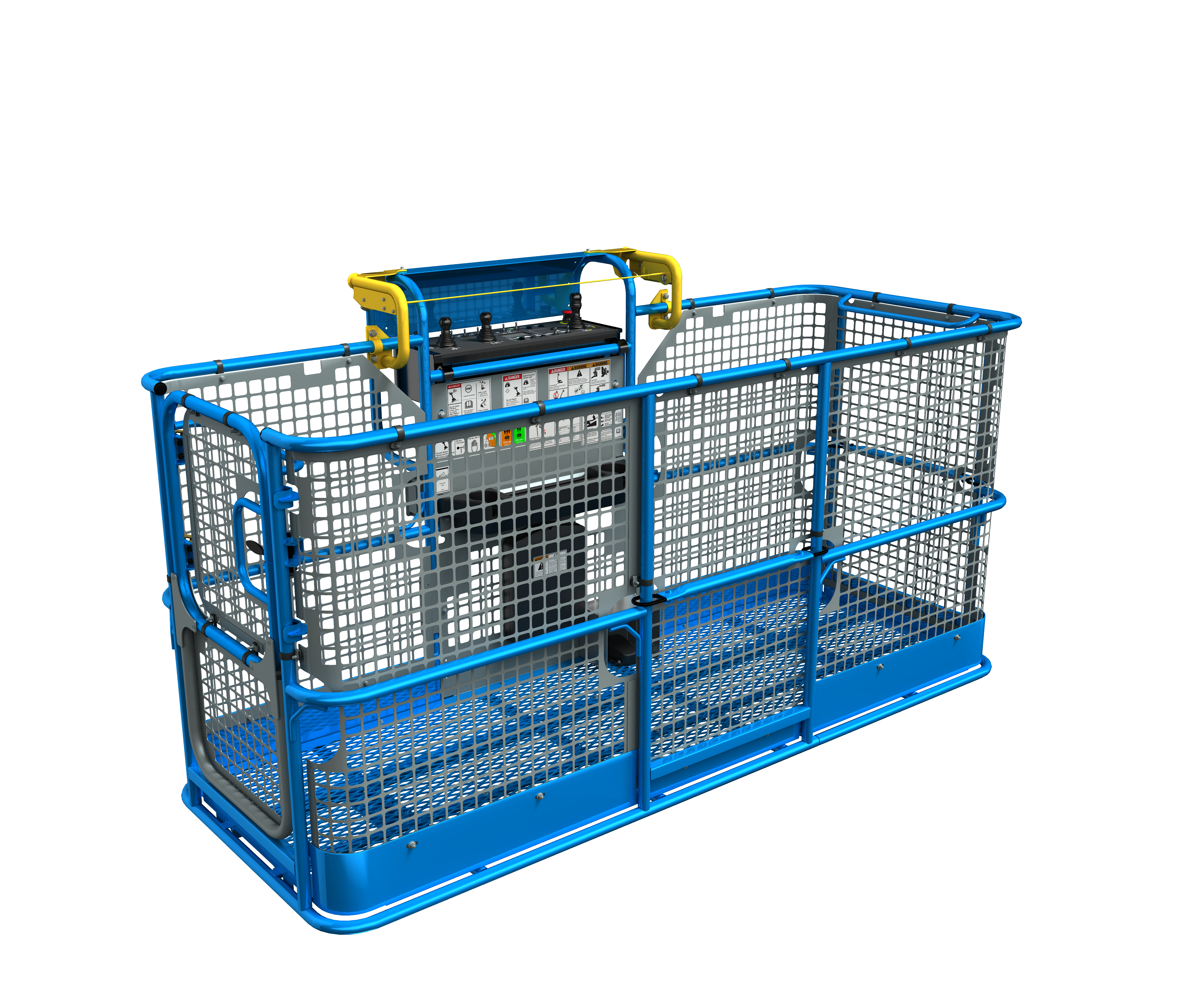

Genie® protective solutions continue to evolve to meet the demands of today’s aerial jobsites. The Genie Lift Guard™ Platform Mesh family of accessories is designed to prevent dropped objects falling from aerial worksites. With two options to choose from — half-height aluminum and full-height aluminum, these contemporary mesh accessories engineered to help operators keep jobsite materials and tools from falling out of boom platforms working at height.

• 1283049GT Kit, 8’ Full Mesh, Side Gate
• 1286622GT Kit, 6’ Full Mesh, Side Gate
• 1290896GT Kit, 8’ Full Mesh, Front Gate
• 1290895GT Kit, 6’ Full Mesh, Front Gate
• 1275281GT Kit, 8’ Half Mesh, Side Gate
• 1275282GT Kit, 6’ Half Mesh, Side Gate
• 1290894GT Kit, 8’ Half Mesh, Front Gate
• 1290893GT Kit, 6’ Half Mesh, Front Gate

• 1276686GT

• 219158GT

• 1256377GT 8ft. word decal
• 1256378GT 6ft word decal
• 1261018GT 8ft. French decal
• 1261019GT 6ft. French decal

• 119950 available on all boom lifts

Designed, tested and approved by Genie, pipe cradles reduce the risk of fatigue by providing a secure way to lift pipes when working from a scissor lift or even an S or Z boom lift. Genie pipe cradles deliver stability and rigidity with a robust design which transfers the load away from the guard rails and onto the platform deck. The pipe cradle assembly mounts easily to the platform guardrails with U-bolts and rests on the floor of the platform when installed.

Maximum Capacity Rating: 200 lbs.

• 85300GT (Must order 2 per machine) or Kit PN 56572GT available on all S and Z boom lifts.
• 72878GT (available on GS-2046, GS-2646, GS-3246)
• 131626GT (available on GS-2668, GS-3268, GS-2669, GS-3369, and GS-4069)
• 131627GT (available on GS-3384, GS-3390, GS-4390, GS-5390)

• 1279134GT, 6-ft & 8-ft platform, ALC1000

• 1279135GT, 6-ft & 8-ft platform, NON-ALC1000

This accessory is an additional railing system that can be quickly and easily mounted on the outside of a Genie boom’s standard platform rails.

This railing system adds an extra measure of security for the operator when working at height.

• 1291495GT – 6 ft (1.8 m) platform with swing gate
• 1291496GT – 8 ft (2.4 m) platform with swing gate

A hinged cover to pull down over the platform controls when the boom is not in operation.

This accessory helps to prevent loose debris from getting into the control box.

• 102854GT

The new Genie® Lift Tools™ Access Deck for boom lifts provides operators with a secondary surface to work from, elevating them 22 in (0.56 m) above the platform floor. Attached to the platform midrail, this additional access enables operators to get into restricted spaces to increase productivity.

Providing more than 3 sq ft (0.27 m) of additional work area in the platform, this accessory is designed for use on jobsites where operators in a standard boom platform cannot reach their work. This additional access is ideal for use in HVAC, electrical, lighting, plumbing and welding applications, as well as between rafters or other structures at height. It is rated for both indoor and outdoor use.

• KIT Number: 1291798GT

Allows operators to place materials outside of the platform for access at height. It includes the cradle, two foam cushions and a load retaining strap.

For use lifting drywall, glass panes, plywood and other material that comes in panels up to 250 lb (113.4 kg). The combined weight of the attachment, panels, occupants and tools must not exceed the platform rated capacity

• KIT Number: 1298841GT

*Not compatible with the old style bolt on platform toeboards, for platforms with the bolt on toeboard and for platforms manufactured before 2016, use P/N 77683GT

Many jobsites require operators to access restricted areas above or beyond where a scissor lift’s platform can reach. This accessory provides operators with a secondary surface to elevate them above the platform floor for a productive solution to access hard-to-reach areas.

This additional deck installs to the inside of the extension deck guardrails on Genie® GS™-1930, GS-1932 scissor lift platforms as well as Genie® GS™-1432m and GS-1932m micro slab scissors (with an additional adapter). It is designed with a collapsible guardrail to ensure uninhibited maneuverability for operators using the accessory.

• 1291517GT for GS™-1930 and GS-1932
  (225 lb weight capacity)
• 1321967GT for GS™-1432m and GS-1932m
  (222 lb weight capacity)

The new Genie^® Lift Tools™ Material Carrier attachment offers Genie GS™-2669, GS-3369 GS-4069, GS-3390, GS-4390 and GS-5390 DC and RT rough terrain scissor lift operators a solution to efficiently carry materials to jobsites. Designed to accommodate a wide range of materials and higher load capacities than a standard pipe cradle attachment, this new Genie accessory is ideal for use in applications that require lifting materials to height, such as tilt-up construction, post-frame building construction, fire suppression installation, HVAC installation, rooftop contracting and facility maintenance.

The large carriage and high capacity of the Genie Lift Tools Material Carrier attachment is suitable for multitude of material types, including lumber, pipe, HVAC materials, siding and plate material.

• KIT 1288239GT, available as an aftermarket part

The Genie Lift Power™ system includes a new generation of hydraulically driven generators for your customers, and their operators, who rely on productive power at the platform to get their work done. This new configuration is a significantly different design from its predecessor system. Instead of relying on the lift circuit or drive hydraulic circuit, this new generator system runs on a stand-alone circuit with a separate hydraulic pump to supply continuous power. This contemporary accessory allows your customers to lift, drive and power tools, such as heavy-duty welders, for increased productivity.

Reduce costly leaks with the Genie® Lift Tool™ Spill Guard. Designed to contain hydraulic leaks, it is simple to install and easy to service.

Work over sensitive surfaces without concern. A field retrofit takes less than 15 minutes. One-time installation with easily-replaceable absorbent pads.

• GS -1432m E-Drive
• GS-1932m E-Drive
• GS-1930/1932 E-Drive
• GS-2032 E-Drive
• GS-2046 E-Drive
• GS-2632 E-Drive
• GS-2646 E-Drive
• GS-3232 E-Drive
• GS-3246 E-Drive
• GS-4046 E-Drive
