Z-34/22 N

Articulated Boom Lifts

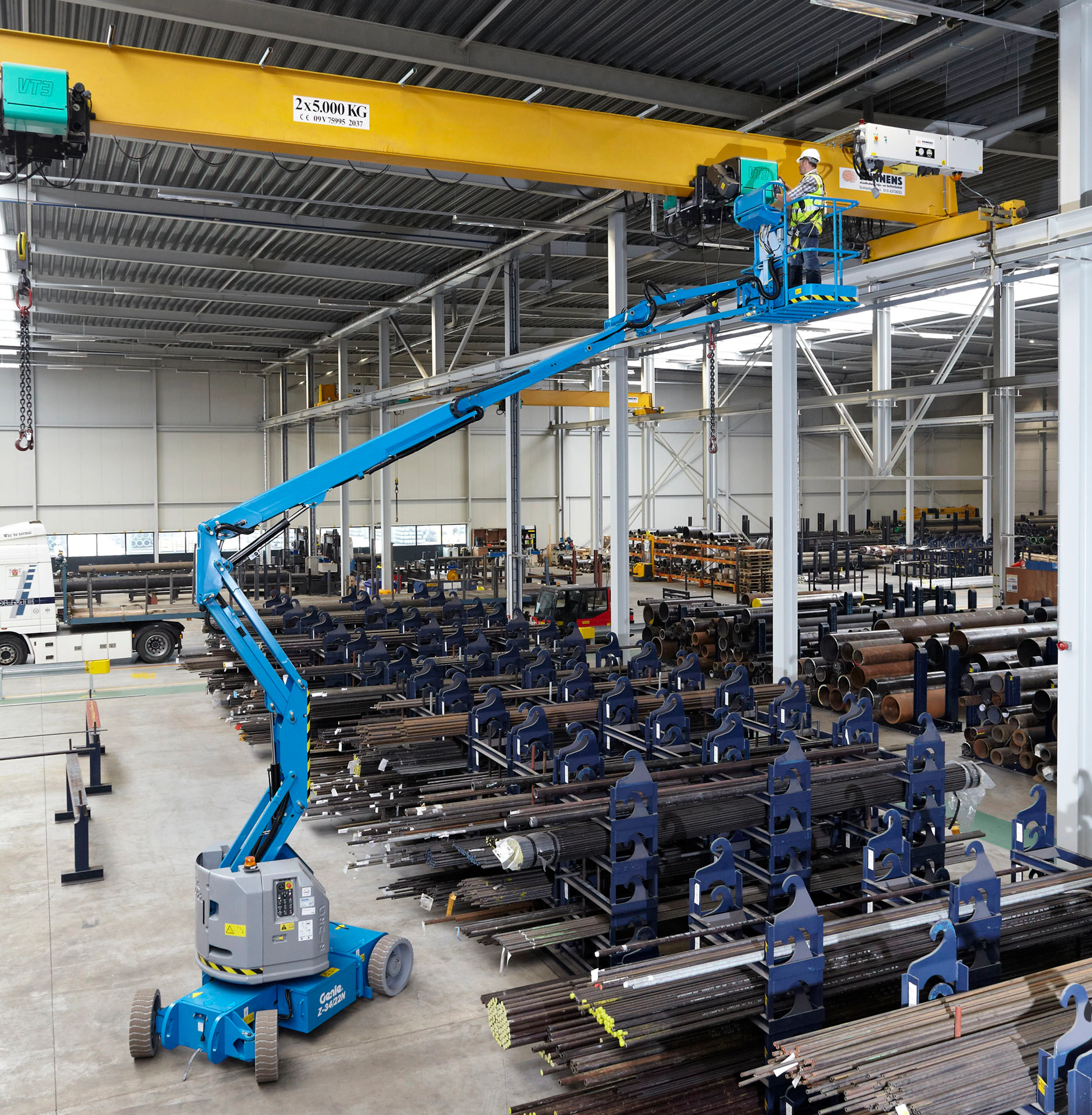

Genie Z-34/22 articulating boom lift

The Genie® Z®-34/22 N electric articulating boom lift offers quiet, emission-free operation in the most sensitive work environments, as a 48V DC machine.

Overview

  • 30% gradeability drive performance and 4.0 mph travel speed
  • Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability of the drive system
  • Self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation
  • Versatile 40 ft 6 in (12.52 m) working height, 22 ft 3 in (6.78 m) horizontal reach
Specification Value
Max Working Height 40 ft 6 in | 12.52 m
Max Horizontal Reach 22 ft 3 in | 6.78 m
Max Up and Over Clearance (riser extended) 15 ft 3 in | 4.65 m
Platform Capacity 500 lbs | 227 kg

Certification Options

  • EE rating, DC only

Lift/Turntable Options

  • AGM maintenance-free batteries
  • Battery charge indicator (BCI) (standard on Bi-Energy model)
  • Specialty hydraulic oil  (6 gal - cold weather, fire resistant, or biodegradable)
  • Low voltage interrupt with BCI (DC only)
  • Low voltage interrupt with BCI (Bi-Energy only)
  • Power inverter, 800W, 120V AC, 60 Hz (DC only)
  • Hostile environment kit: cylinder bellows, boom wiper seals and lockable platform control box covers

Platforms

  • 4 ft. platform

Platform Options

  • Air line to platform:  ? in. inner diameter
  • Aircraft protection kit:  platform foam padding and padded disable system
  • Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
  • Lockable platform control box cover
  • Platform with ½ height mesh inserts and swing gate
  • Platform auxiliary top rail
  • Platform swing gate
