Z-34/22 DC
Articulated Boom Lifts

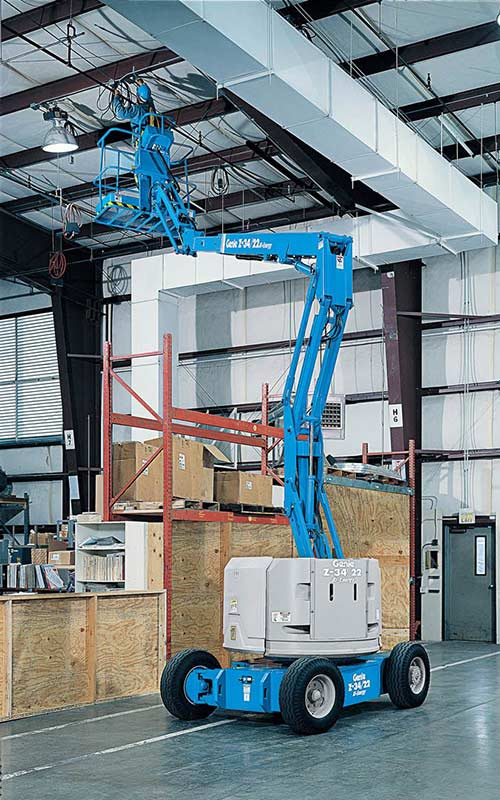

The Genie® Z®-34/22 DC electric articulating boom lift offers quiet, emission-free operation. With this Genie electric boom lift, operators can easily work close to buildings or around obstacles and access overhead work from aisles and other congested areas.
Overview
- Zero tailswing and zero front arm swing in stowed and raised positions allow for work in tight spaces
- Compact chassis for narrow aisle access
- 30% gradeability and 4 mph (6.4 km/h) travel speed for excellent drive performance
- 4 ft (1.22 m) articulating jib with a 139° vertical rotation to accurately position workers
- 180° hydraulic platform rotation and self-levelling platform for easy operation
- Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability of the drive system
| Specification | Value |
|---|---|
| Max Working Height | 40 ft 6 in | 12.52 m |
| Max Horizontal Reach | 22 ft 3 in | 6.78 m |
| Max Up and Over Clearance (riser extended) | 15 ft | 4.57 m |
| Platform Capacity | 500 lb | 227 kg |
- Z-34/22 DC - Product Specifications - 2022 - EN-US
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
Chassis - Engine Options
- Cold weather kit for Z-34/22 Bi-Energy model only, includes: 5W-40 synthetic oil, oil pan heater, battery heater, hydraulic tank heater
Certification Options
- EE rating, DC only
Chassis - Tires Options (not available with Z-34/22N)
- Industrial foam-filled tires (water based)
- Non-marking industrial air-filled tires
- Non-marking industrial foam-filled tires (water based)
- Tire sealant: air-filled tires only
Lift/Turntable Options
- AGM maintenance-free batteries
- Battery charge indicator (BCI) (standard on Bi-Energy model)
- Specialty hydraulic oil (6 gal - cold weather, fire resistant, or biodegradable)
- Low voltage interrupt with BCI (DC only)
- Low voltage interrupt with BCI (Bi-Energy only)
- Power inverter, 800W, 120V AC, 60 Hz (DC only)
- Hostile environment kit: cylinder bellows, boom wiper seals and lockable platform control box covers
Platforms
- 4 ft. platform
Platform Options
- Air line to platform: ? in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform control box cover
- Platform with ½ height mesh inserts and swing gate
- Platform auxiliary top rail
- Platform swing gate
