Z-34/22 IC

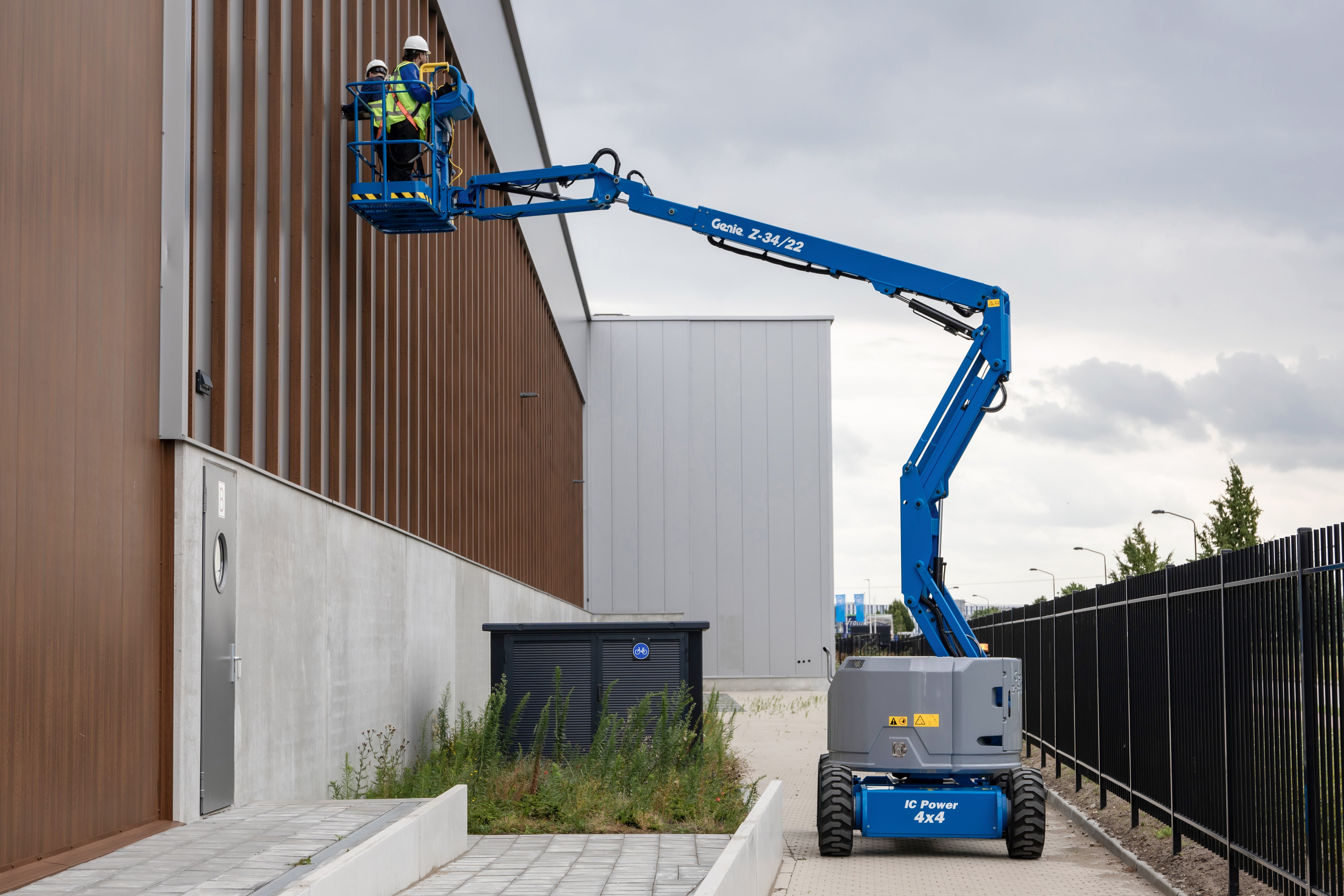

Genie Z-34/22 articulating boom lift

Ideal for outdoor construction and industrial applications, the engine-powered Genie® Z®-34/22 IC articulating boom lift provides lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. This model is available in 2WD and 4WD models.

Overview

  • Smooth control, durability and efficient power transmission ideal for rough terrain operation
  • Two-speed hydraulic motors for optimum speed and torque
  • Zero tailswing and nose swing in all positions allow excellent maneuverability in confined areas
  • Ascent and descent along a vertical plane with or without boom retraction or extension
Specification Value
Max Working Height Z-34/22 IC 2WD: 40 ft 6 in | Z-34/22 IC 4WD: 40 ft 10 in | Z-34/22 IC 2WD: 12.52 m | Z-34/22 IC 4WD: 12.62 m
Max Horizontal Reach 22 ft 3 in | 6.78 m
Max Up and Over Clearance (riser extended) Z-34/22 IC 2WD: 15 ft | Z-34/22 IC 4WD: 15 ft 1 in | Z-34/22 IC 2WD: 4.57 m | Z-34/22 IC 4WD: 4.6 m
Platform Capacity 500 lb | 227 kg

Tire Options

  • 2WD Industrial foam-filled tires (water based)
  • 2WD Non-marking industrial air-filled tires
  • 2WD Non-marking industrial foam-filled tires (water based)
  • 2WD Rough-terrain air-filled tires
  • 4WD Rough-terrain foam-filled tires (water based)
  • Tire sealant: air-filled tires only

Engine Options

  • 28 hp GM, gas / LPG Dual Fuel, including gauge package
  • Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater
  • Engine gauge package, Kubota: oil pressure, temperature and voltage

Lift/Turntable Options

  • AC generator, 110V/60Hz or 220V/50Hz, 2200W, hydraulically driven
  • Specialty hydraulic oil  (22 gal - cold weather, fire resistant, or biodegradable)
  • LPG tank, 33.5 lb. capacity: GM gas/LPG engine only
  • Hostile environment kit: cylinder bellows, boom wiper seals and platform control box cover

Platforms

  • 4 ft. platform
  • 4ft. or 4 ft. 8 in. platform with ½ height mesh inserts and swing gate

Platform Options

  • Air line to platform:  ? in. inner diameter
  • Aircraft protection kit :  4ft. 8in.  platform foam padding and padded disable system
  • Entry toe boards
  • Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
  • Lockable platform control box cover
  • Platform auxiliary top rail
  • Platform swing gate
Range of motion - Genie Z-34/22 IC articulating boom lift
