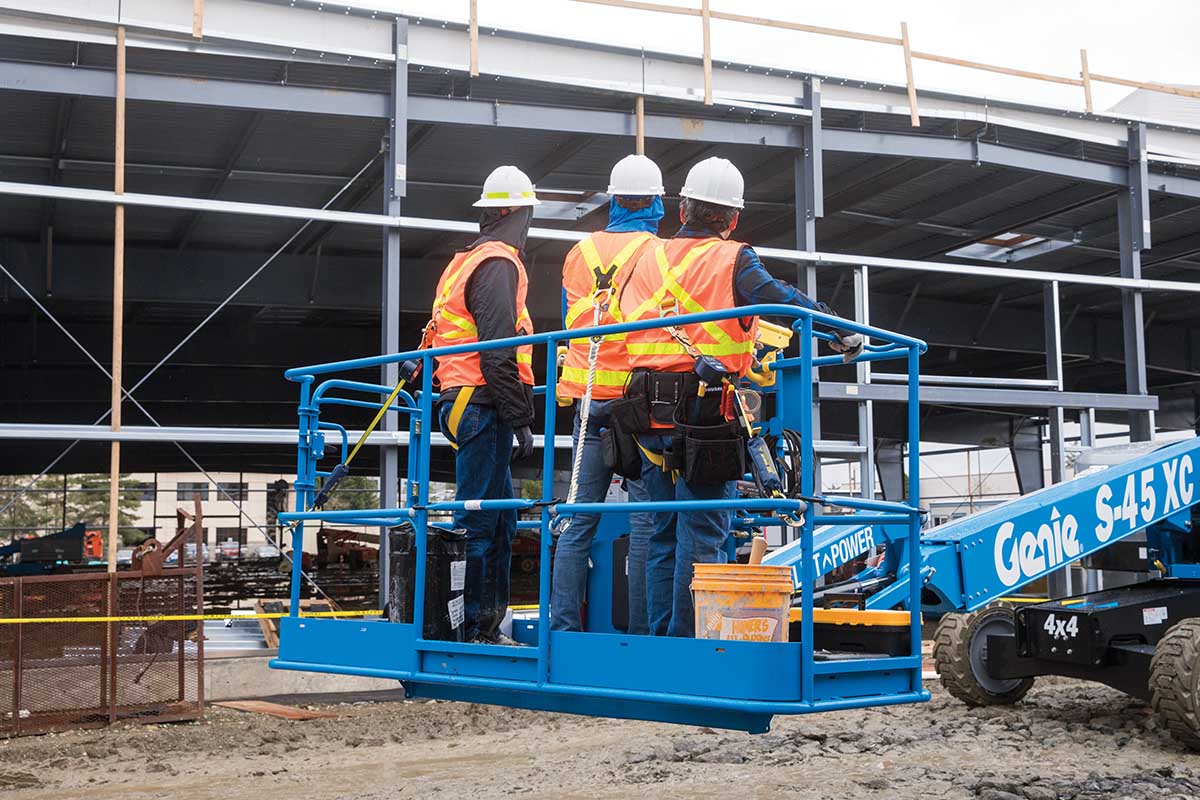

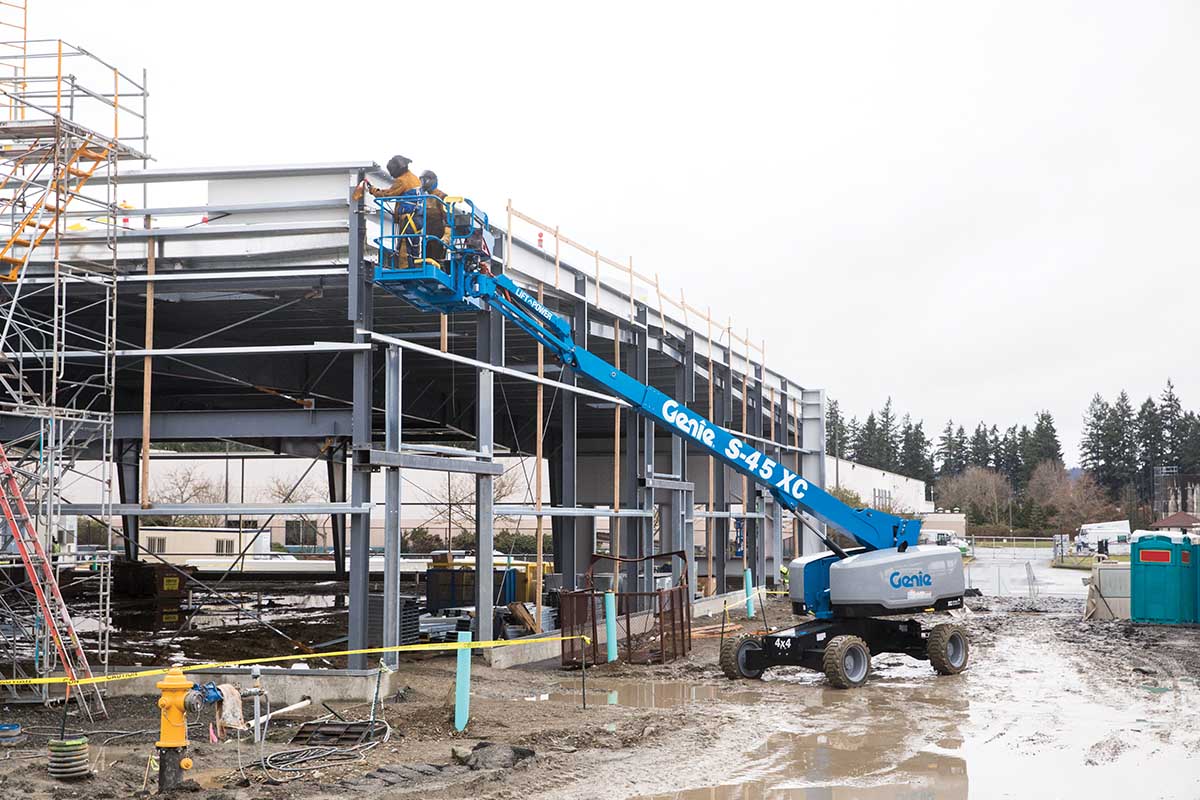

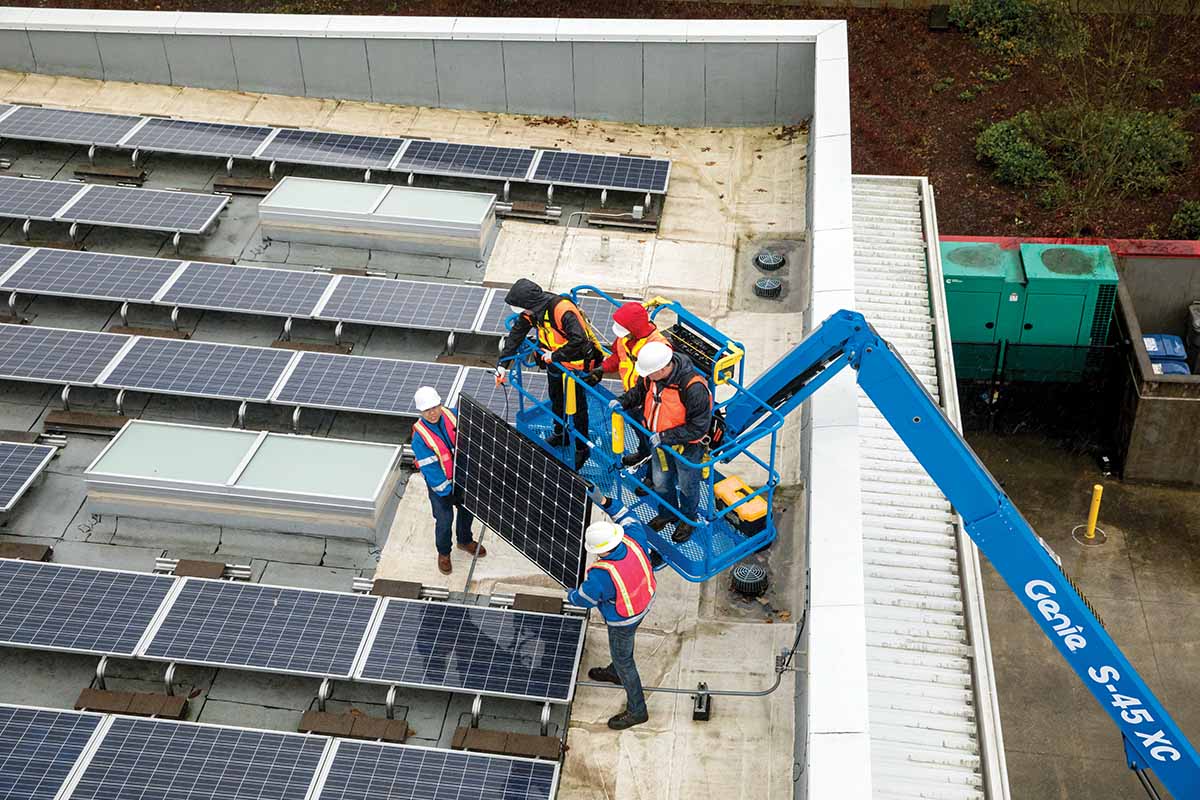

S-40 XC and S-45 XC
Telescopic Boom Lift
The Genie® S-40 XC™ and S-45 XC™ telescopic booms are engineered to work in more applications that require higher capacities. With industry-leading dual lift capacity — 660-lb (300 kg)/1,000-lb (454 kg) — a smooth operating envelope, this new XC boom lift is a perfect fit for your customers’ heavy lifting in construction, bridge inspections and maintenance, stadium and sports arena, gas and oil refineries, industrial, telecommunications and utility applications.
Overview
- 660-lb (300 kg)/1,000-lb (454 kg) dual platform capacity
- Load sense technology for accurate load weighing and zero-load field calibration
- Automatic envelope control enables boom to retract when it reaches its operating envelope
- Chassis tilt sensor technology maximizes operators’ ability to access hard-to-reach work areas
- Robust jib is capable of easily handling increased maximum capacity
- CAN-bus control system with onboard diagnostics maximizes serviceability
- Design focus on user interface and simplicity makes this machine easy-to-use
- Can be equipped with the new Genie Lift Power™ generator system
- Commonality in design and parts with other Genie booms
| Specification | Value |
|---|---|
| Max Working Height | S-40 XC: 46 ft / S-45 XC: 51 ft | S-40 XC: 14.19 m / S-45 XC: 15.72 m |
| Max Horizontal Reach | S-40 XC: 31 ft 8 in / S-45 XC: 36 ft 2 in | S-40 XC: 9.67 m / S-45 XC: 11.02 m |
| Below Ground Reach | S-40 XC: 1 ft / S-45 XC: 4 ft 2 in | S-40 XC: 0.30 m / S-45 XC: 1.27 m |
| Platform Capacity | 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted |
| Machine Width and Length | 8 ft 2 in, 31 ft 1 in | 2.49 m, 9.47 m |
- S-40 S-45 XC & TraX Product Specifications – ANSI A92.2
- S-40XC Trax and S-45XC Trax Product Specifications – 2019
- Boom Lift Family Brochure 2020
- S-45 XC Product Specifications 2019
- Boom Lifts Family Brochure 2019
- S-40 XC & S-45 XC & S-40 TraX & S-45 TraX Характеристики продукции
- S-40 XC and S-45 XC Especificaciones Tecnicas 2020
- S-40 XC & S-45 XC & S-40 TraX & S-45 TraX Product Specifications (CE)
- Genie Accessories Brochure 2021
- S-40-45 XC & TraX Product Specifications 2020 (ANSI)
- Telescopic Booms Family Brochure 2020
- S-40-45 XC & TraX Product Specifications 2020
- S-40 XC, S-45 XC, S-40 TraX, and S-45 TraX Product Specifications 2020
- S-40 XC, S-45 XC, S-40 TraX, & S-45 Trax Specifiche tecniche 2020
- S-40 XC, S-45 XC, S-40 TraX, & S-45 Trax Especificaciones técnicas 2020
- S-40 XC, S-45 XC, S-40 TraX, & S-45 Trax Produktspezifikationen 2020
- S-40 XC, S-45 XC, S-40 TraX, & S-45 Trax Spécifications Techniques 2020
- Especificaciones Tecnicas S-40XC and S-45XC
Chassis Options
- Tow package
Tire Options
- Rough terrain foam-filled (standard)
- Rough terrain non-marking (air or foam-filled)
- Trax (track system)
Engine Options
- 49 hp (36.54 kW) Deutz diesel T4f (standard)
- 48 hp (35.79 kW) Perkins turbo diesel T4f 404F-E22T
- 60hp (44.74kW) Ford Gas/LPG
Lift/Turntable Options
- Specialty hydraulic oil (60 gal - cold weather, fire resistant, or biodegradable)
- LPG tank, 33.5 lb. capacity: Ford engine only
- Second battery
- Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
- Deluxe hostile environment kit: hostile environment kit, ring gear guard, cable track hose cover, air pre-cleaner
Platforms
- Steel 8 ft (2.44 m) tri entry with side swing gate (standard)
- Steel 6 ft (1.83 m) dual entry with side swing gate
Platform Options
- Lift Power™ 3kW AC generator, 110V/60Hz or 220V/50Hz
- Air line to platform: ½ in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Aircraft protection kit: with swing gate
- Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
- Lockable platform and ground control box covers
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Lift Power™ 12kW Welder - Select Lincoln or Miller
- Lift Power™ 12kW Welder Ready package
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
