S-40 HF and S-45 HF

Telescopic Boom Lift

The Genie^® S^®-40 HF and S-45 HF high float telescopic booms are designed to perform heavy-lifting tasks in sensitive turf conditions, such as sand and turf ground conditions. Engineered to “float” on soft or delicate surfaces, the Genie S-40 and S-45 HF booms protect softer surfaces during operation that could be damaged by the more aggressive tread on regular rough terrain tires.

Overview

This new generation of Genie HF booms retain the productivity features that enhance customers’ ability to get work done quickly, including:

A virtual pivot primary boom that aligns the machine’s center of gravity for lower machine weight
- 13,544 lb (6,143 kg) on the Genie S-40 HF model
- 15,720 lb (7,130 kg) on the Genie S-45 HF model
4WD and positive traction drive maintains equal power to all drive wheels
45% gradeability (stowed) for driving on slopes1
60˚ platform rotation and 360˚ continuous rotation turntable for quick, precision positioning

Get a Quote Order Parts Manuals Sign Up

Specification	Value
Max Working Height	S-40 HF: 45 ft 6 in / S-45 HF: 50 ft 6 in \| S-40 HF: 13.87 m / S-45 HF: 15.56 m
Max Horizontal Reach	S-40 HF: 28 ft 11 in / S-45 HF: 34 ft \| S-40 HF: 8.81 m / S-45 HF: 10.36 m
Below Ground Reach	S-40 HF: 1 ft / S-45 HF: 4 ft 2 in \| S-40 HF: 0.30 m / S-45 HF: 1.27 m
Platform Capacity	600 lb \| 272 kg
Machine Width and Length	S-40 HF: 8 ft 5 in, 26 ft 4 in / S-45 HF: 8 ft 5 in, 31 ft 1 in \| S-40 HF: 2.56 m, 8.03 m / S-45 HF: 2.56 m, 9.47 m

S-40 HF & S-45 HF - Product Specifications - 2022 - EN-US
To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.

Range of Motion - Genie S-40 HF and S-45 HF

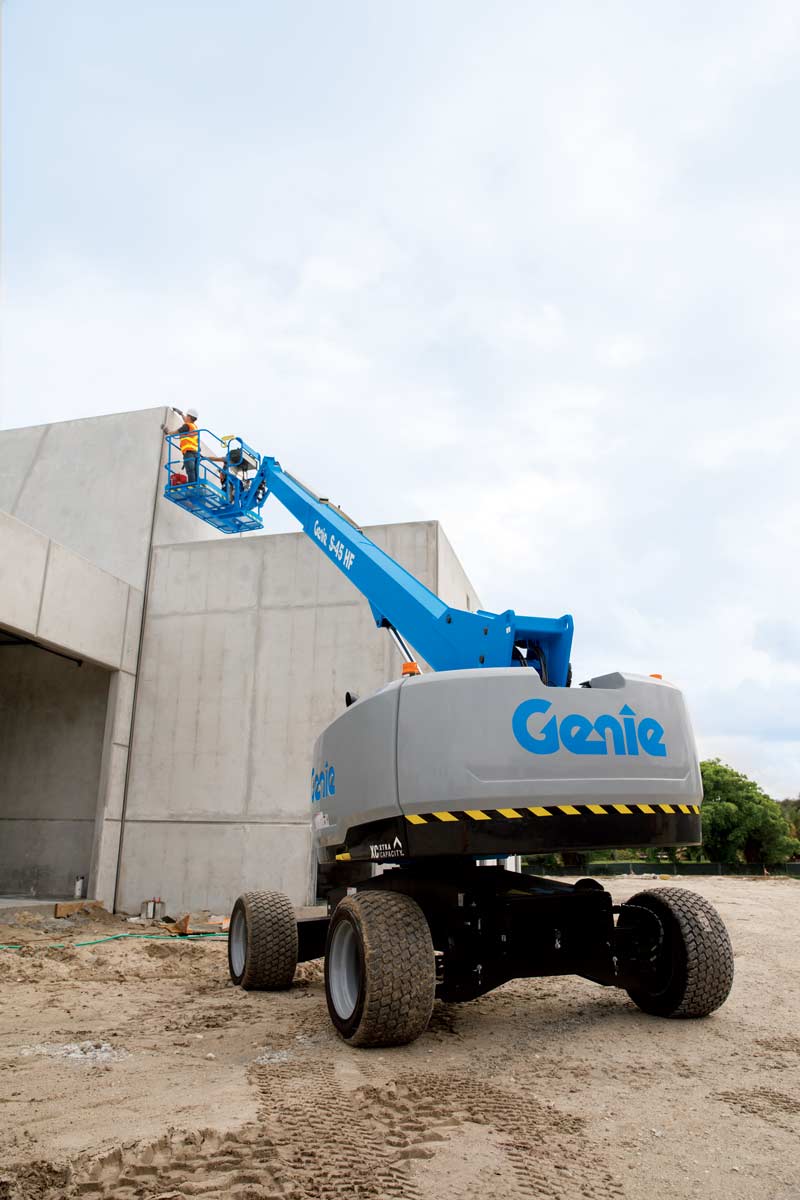

View S-45-HF-1025 Image

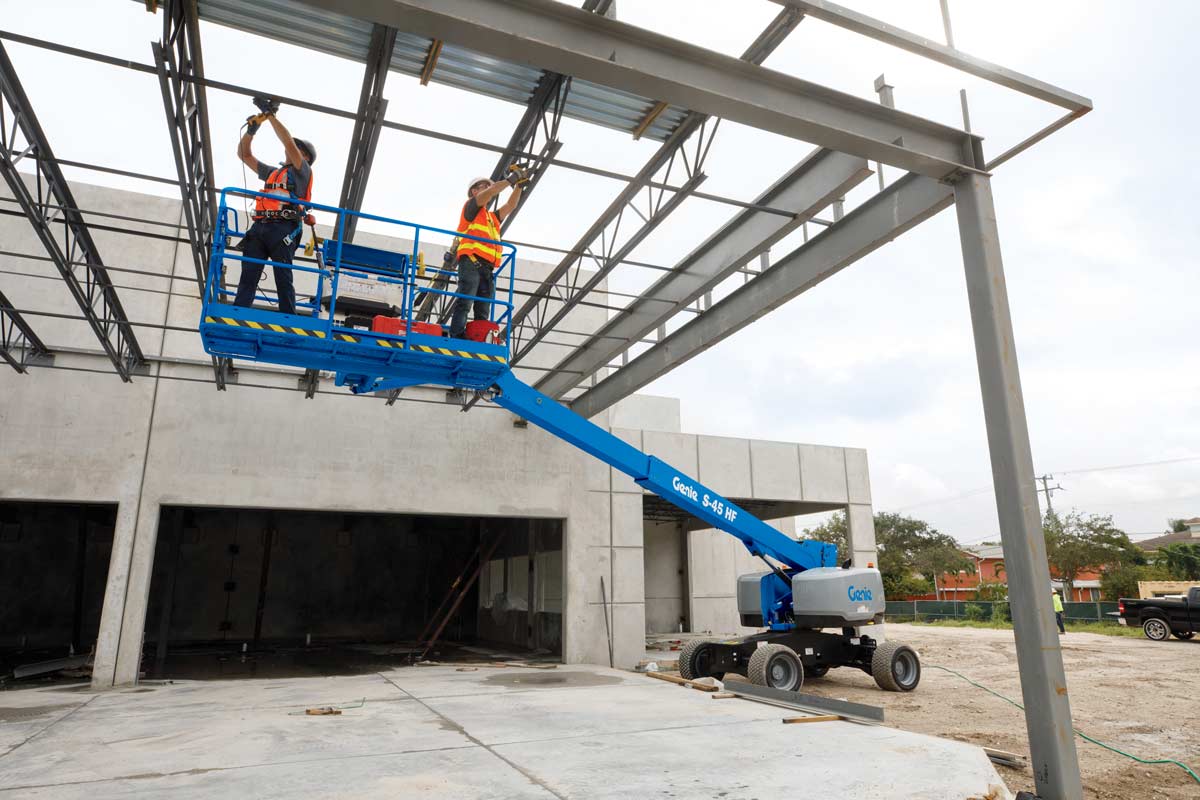

View S-45-HF-1076 Image

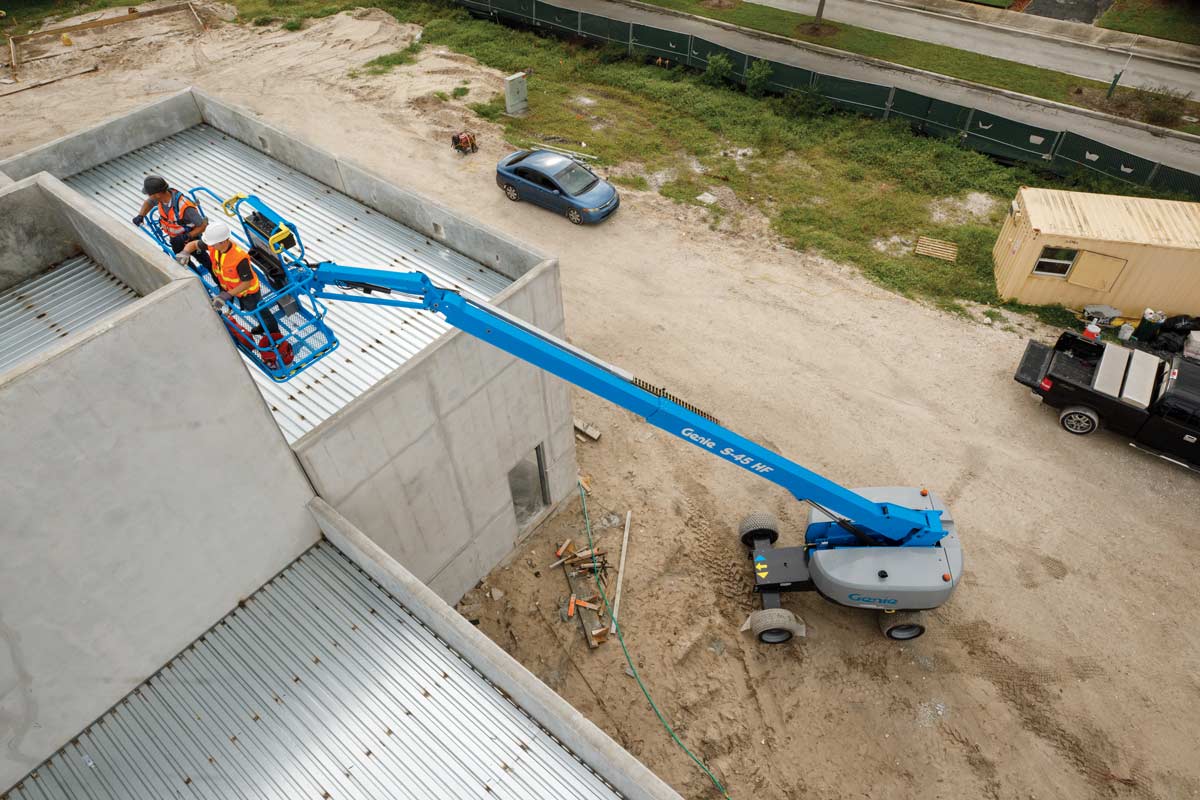

View S-45-HF-1044 Image

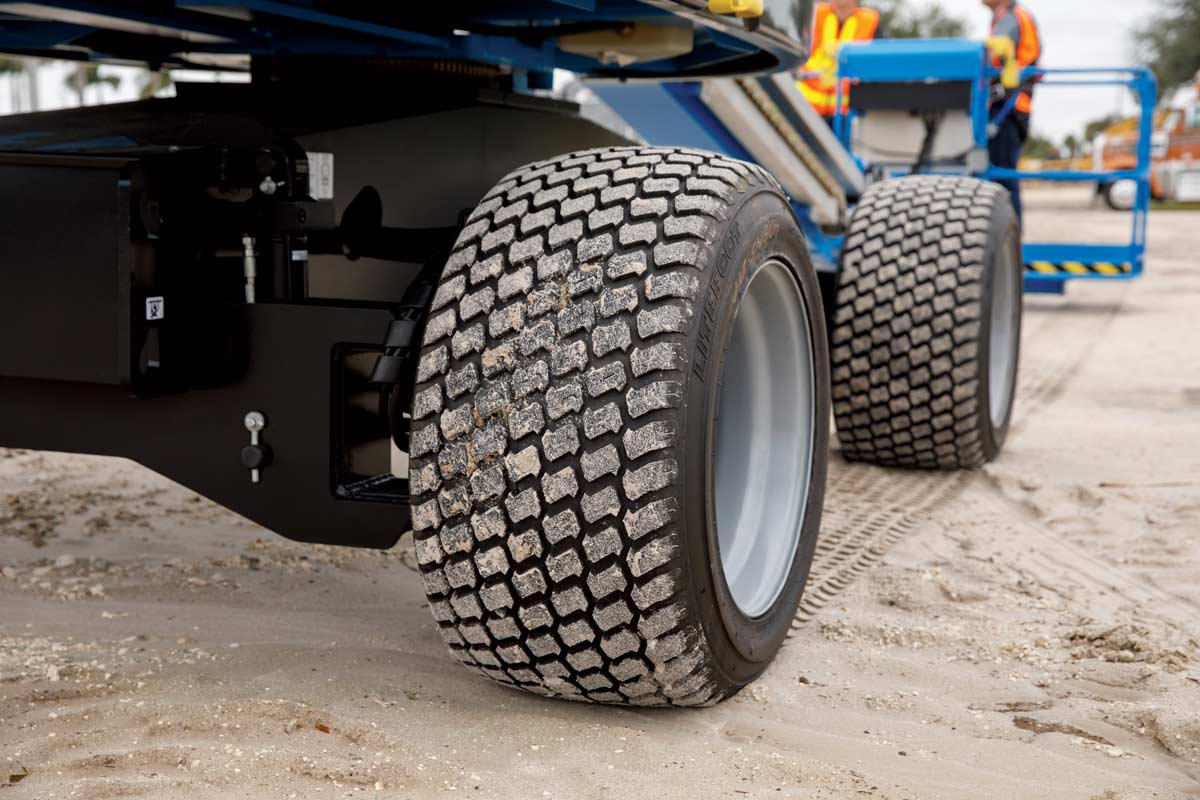

View S-45-HF-1007 Image

View S-45-HF-1259 Image
