S-80 J and S-80 J TraX
Telescopic Boom Lift

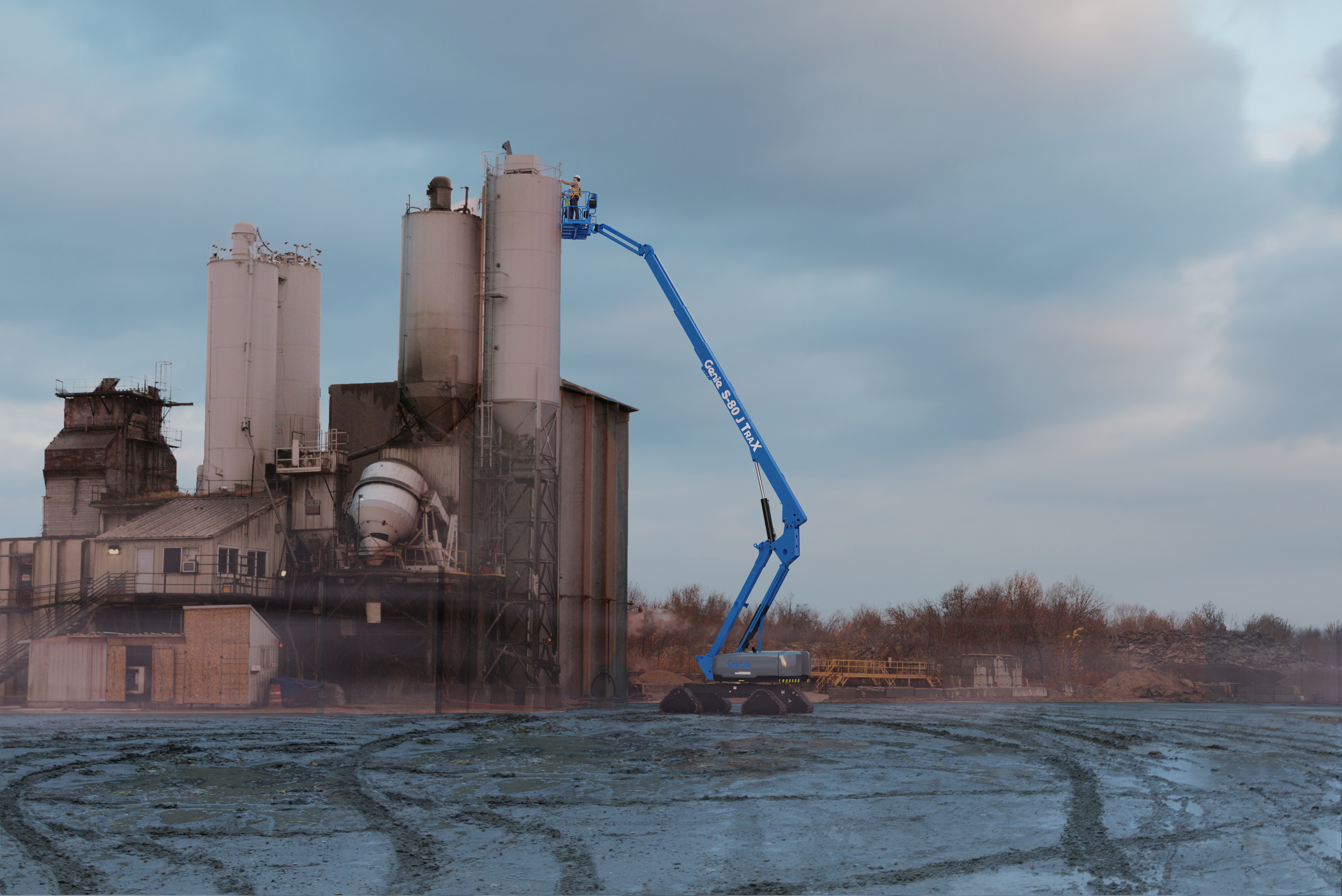

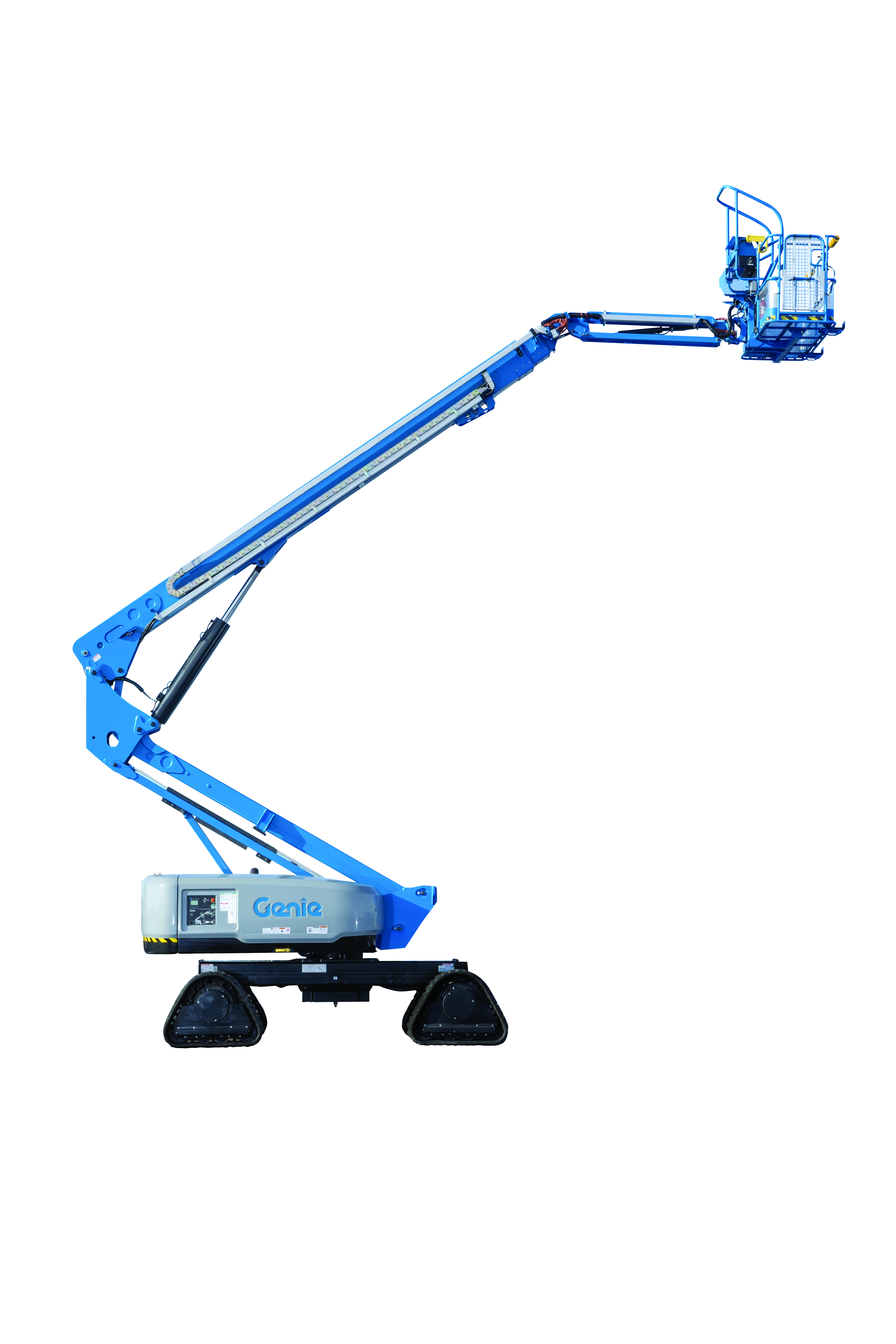

Genie® S®-80 J telescopic boom offers the essential performance that operators need to get work done at height. It offers the right solution to get work done at height, including leading unrestricted platform capacity of 660 lb (300 kg), allowing for two occupants plus tools. For increased jobsite productivity, it is the first and only boom model in the 80 ft (26 m) working height category to offer a tracked option.
Overview- Suited for use in general construction, maintenance, inspection and painting tasks
- Leading unrestricted platform capacity of 660 lb (300 kg) with 6 ft (1.8 m) jib
- 80-ft (24.4 m) platform height and 55 ft (16.8 m) horizontal reach for access at the top of the envelope
- High-ground clearance helps clear rocks, curbs, trailer break-overs and other daily obstacles
- Same features as above
- Patented track design features 4 independent tracks, swivelling vertically up to 20° for a smooth drive on rough ground conditions
- 30° steer angle for easy manoeuvring
| Specification | Value |
|---|---|
| Max Working Height | 86 ft 5 in | 26.51 m |
| Max Horizontal Reach | 54 ft 9 in | 16.69 m |
| Platform Capacity | 660 lb | 300 kg |
| Machine Width and Length | S-80 J: 8 ft 2 in, 34 ft 3 in | S-80 TraX: 8 ft 4 in, 34 ft 3 in | S-80 J: 2.49 m, 10.44 m | S-80 TraX: 2.54 m, 10.44 m |
- S-80 J & S80 J TraX - Product Specifications - 2022 - EN-US
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
