Z-80/60
With outreach that’s second to none, the Genie® Z®-80/60 articulating boom lift delivers outstanding lifting versatility with up, out and over positioning capabilities — ideal for outdoor construction and industrial applications.
Overview
- Genie® Fast Mast™ system lowers the platform to the ground without having to lower the secondary boom; raises primary and secondary booms simultaneously
- Full-time positive traction and full-time 4WD for a smooth ride on rough ground conditions
- Reverse-articulating secondary boom with 29 ft (8.83 m) of up and over reach and zero front arm swing
- Quiet diesel engine options for increased performance, gradeability and terrainability
| Specification | Value |
|---|---|
| Max Working Height | 84 ft | 25.77 m |
| Max Horizontal Reach | 60 ft | 18.29 m |
| Max Up and Over Clearance (riser extended) | 29 ft | 8.83 m |
| Below Ground Reach | 15 ft 10 in | 4.83 m |
| Platform Capacity | 500 lb | 227 kg |
Chassis Options
- 4 wheel steering
Tire Options
- Rough terrain, foam-filled tires (petroleum based)
- Rough terrain, non-marking, foam-filled tires (water based)
- Rough terrain, non-marking, foam-filled tires (petroleum based)
- High floatation, rough terrain, air-filled tires: requires 4WD and includes additional counterweight and higher torque wheel drive motors
Engine Options
- 70 hp GM Vortec 3.0L Gas/LPG Dual Fuel
- Diesel air intake pre-cleaner
- LPG tank, 33.5 lb. capacity: Duel Fuel engine only
- Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater, hydraulic tank heater
Lift/Turntable Options
- Specialty hydraulic oil (80 gal - cold weather, fire resistant, or biodegradable)
- Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
- Deluxe hostile environment kit: hostile environment kit, center turntable shield, ring gear guard, tail pipe guard, engine cover flaps and air pre-cleaner
Platforms
- 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
- 6 ft. dual entry platform with side swing gate
Platform Options
- AC generator, 110V/60Hz, 110V/ 50Hz, or 220V/50Hz, 3000W, hydraulically driven
- Air line to platform: ½ in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Aircraft protection kit: with swing gate
- Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
- Lockable platform and ground control box covers
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Welder - Select Lincoln or Miller
- Welder ready package
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
Image and Video Gallery
Related Products, Attachments and Accessories
-
![Genie ZX-135/70 articulating boom lift]()
-
![Genie Z-60/37 DC or FE articulating boom lift]()
Z-60/37 DC and FE
The Genie® Z®-60/37 DC all-electric articulating boom lifts and the Genie® Z®-60/37 FE fuel-electric hybrid articulating boom lifts are ideal for outdoor and indoor applications that demand low noise and clean ...
-
![Genie Z-62/40 articulating boom lift]()

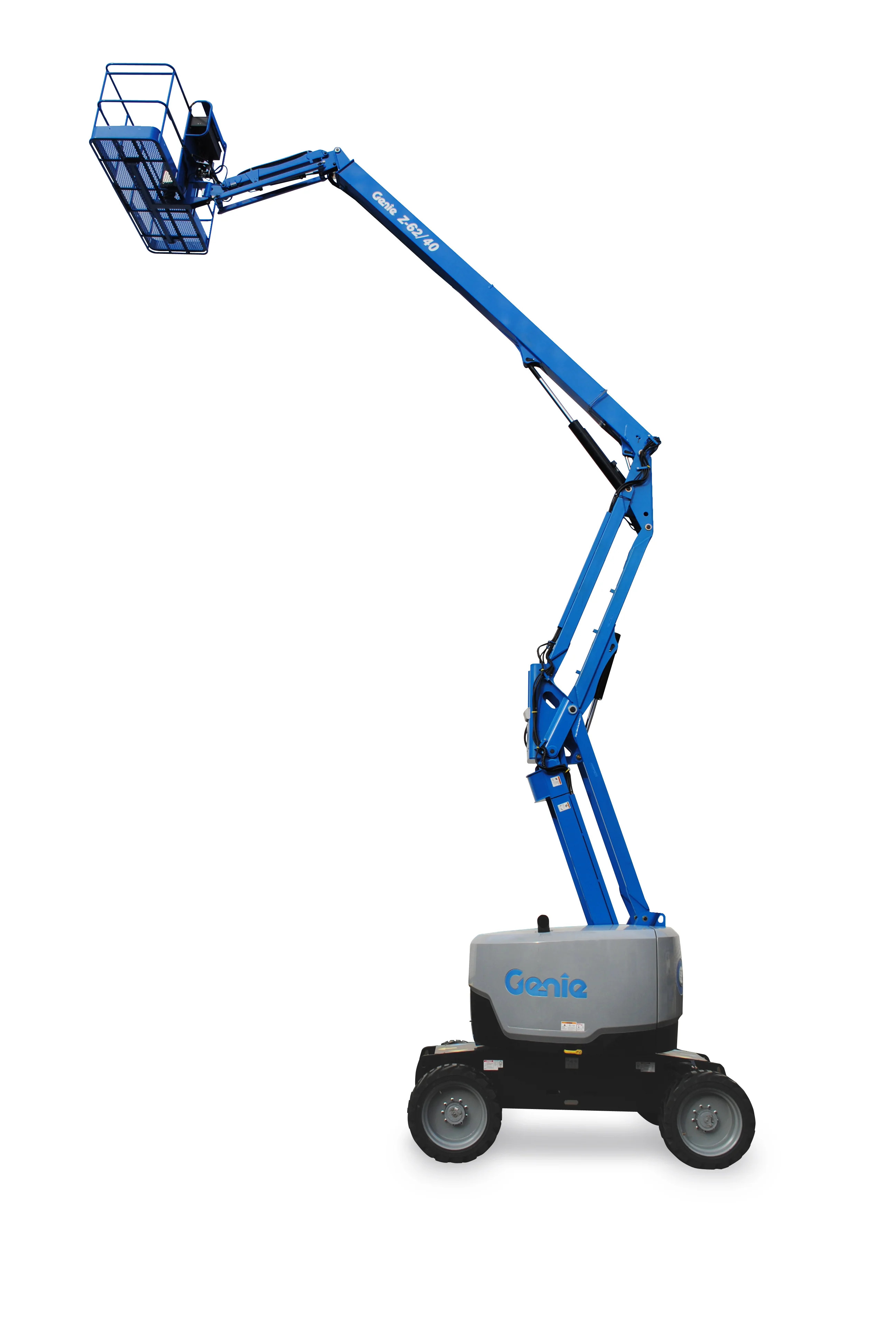

Z-62/40
