Z-45 XC
Articulated Boom Lifts

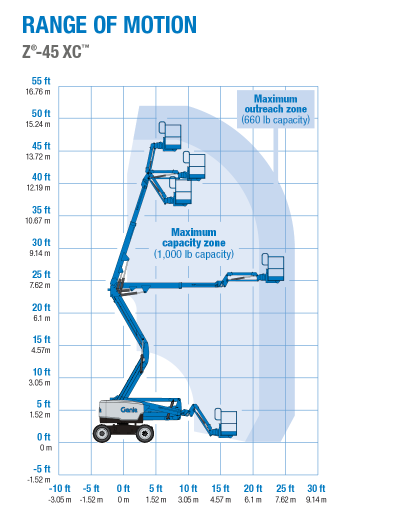

The Genie® Z®-45 XC™ articulating boom is the redesigned Xtra Capacity™ version of the popular rough-terrain Genie Z-45/25 J RT diesel powered articulating boom. It’s the first Genie XC articulating boom model, boasting the benefits of a dual-envelope design to provide an unrestricted platform capacity of 660 lb (300 kg) and a restricted capacity of 1,000 lb (454 kg).
It can be outfitted with the new Genie Lift Power™ generator solution that lets operators lift and drive during operation.
Overview
- Load sense technology for accurate load weighing and zero-load field calibration
- Rough terrain capabilities include 45% gradeability
- Updated oscillating system boasts faster response time
- Commonality in design and accessories with other Genie booms for easy parts stocking
Due to the delays in updating the ANSI A92 standards, Genie has temporarily suspended the production of the new Genie® S-60 XC™, S-65 XC and Z-45 XC booms*. Current Genie S-60, S-65 and Z-45 models will continue to be available for purchase until further notice.
* Please check back often for production updates on these units.
| Specification | Value |
|---|---|
| Max Working Height | 51 ft 6 in | 15.87 m |
| Max Horizontal Reach | 24 ft 8 in | 7.54 m |
| Max Up and Over Clearance (riser extended) | 23 ft 8 in | 7.22 m |
| Platform Capacity | 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted |
- Z-45 XC Product Specifications 2022 (CE)
- Z-45 XC Product Specifications 2025 (ANSI)
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
