Z-34/22 DC
Articulated Boom Lifts
.jpg?sfvrsn=4bde60d0_1)

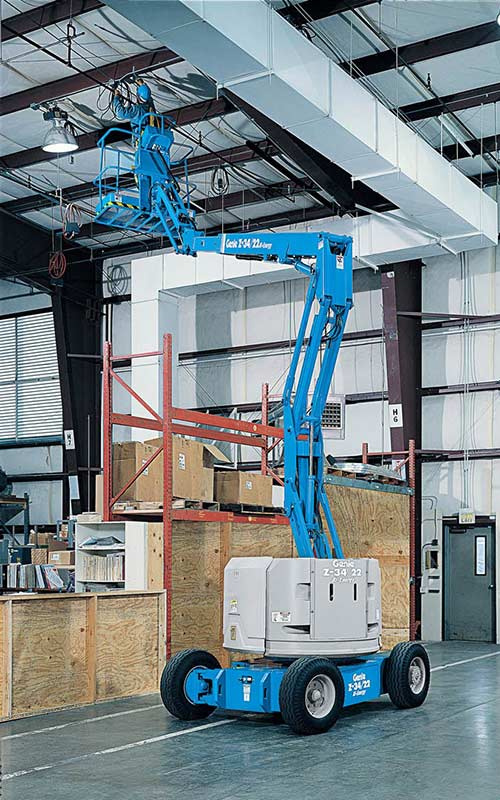

The Genie® Z®-34/22 electric articulating boom lift offers quiet, emission-free operation in the most sensitive work environments. It’s a 48V DC machine with a diesel-powered generator acting as a 100 amp battery charger, making it ideal for indoor and outdoor applications.
Overview
- 30% gradeability drive performance and 4.0 mph travel speed
- Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability of the drive system
- Self-leveling platform features 180° powered horizontal rotation for precise positioning and easy operation

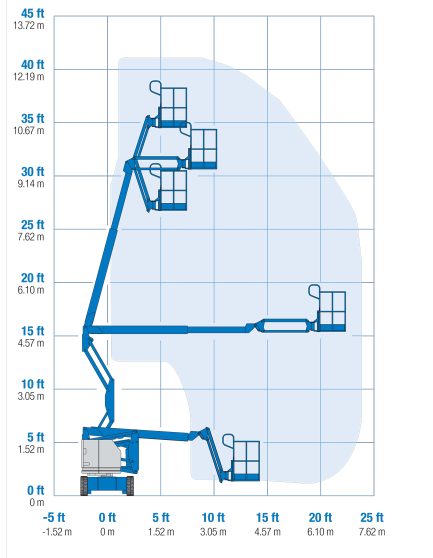

- Versatile 40 ft 6 in (12.52 m) working height, 22 ft 3 in (6.78 m) horizontal reach
| Specification | Value |
|---|---|
| Max Working Height | 40 ft 6 in | 12.52 m |
| Max Horizontal Reach | 22 ft 3 in | 4.57 m |
| Max Up and Over Clearance (riser extended) | 15 ft | 4.57 m |
| Platform Capacity | 500 lb | 227 kg |
- Z-3422 DC Product Specifications 2022 (ANSI)
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
