Z-30/20 N
Articulated Boom Lifts
The Genie® Z®-30/20 N articulating boom lift offers quiet, emission-free operation in the most sensitive work environments.
With this Genie® narrow electric lift, operators can easily drive through standard doorways, work close to buildings or around obstacles, and access overhead work from aisles and other congested areas.
Overview
- Works in tight spaces with zero tailswing and front arm swing in stowed and raised positions
- Compact chassis for narrow aisle access
- 4 ft (1.22 m) jib boom has 139° range of motion allowing precise positioning above or below
- 35% gradeability drive performance and 3.3 mph travel speed

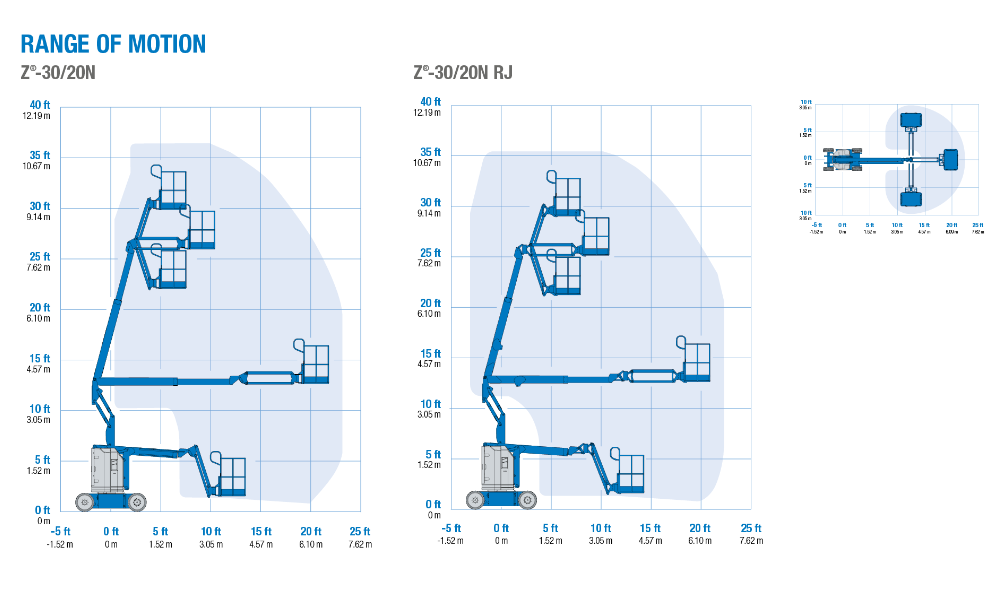

| Specification | Value |
|---|---|
| Max Working Height | 36 ft | 11.14 m |
| Max Horizontal Reach | 21 ft 5 in | 6.53 m |
| Max Up and Over Clearance (riser extended) | 12 ft 8 in | 3.86 m |
| Platform Capacity | 500 lb | 227 kg |
- Z-30/20N & Z-30/20N RJ - Product Specifications 2022 (ANSI)
- Z-30/20N & Z-30/20N RJ - Product Specifications 2022 (CE)
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
