ZX-135/70

Articulated Boom Lifts

Genie ZX-135/70 articulating boom lift

Ideal for outdoor construction and industrial applications, the Genie® ZX®-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib. Four-wheel drive and steer means that this articulating boom can handle rough jobsite ground conditions with ease.

Overview

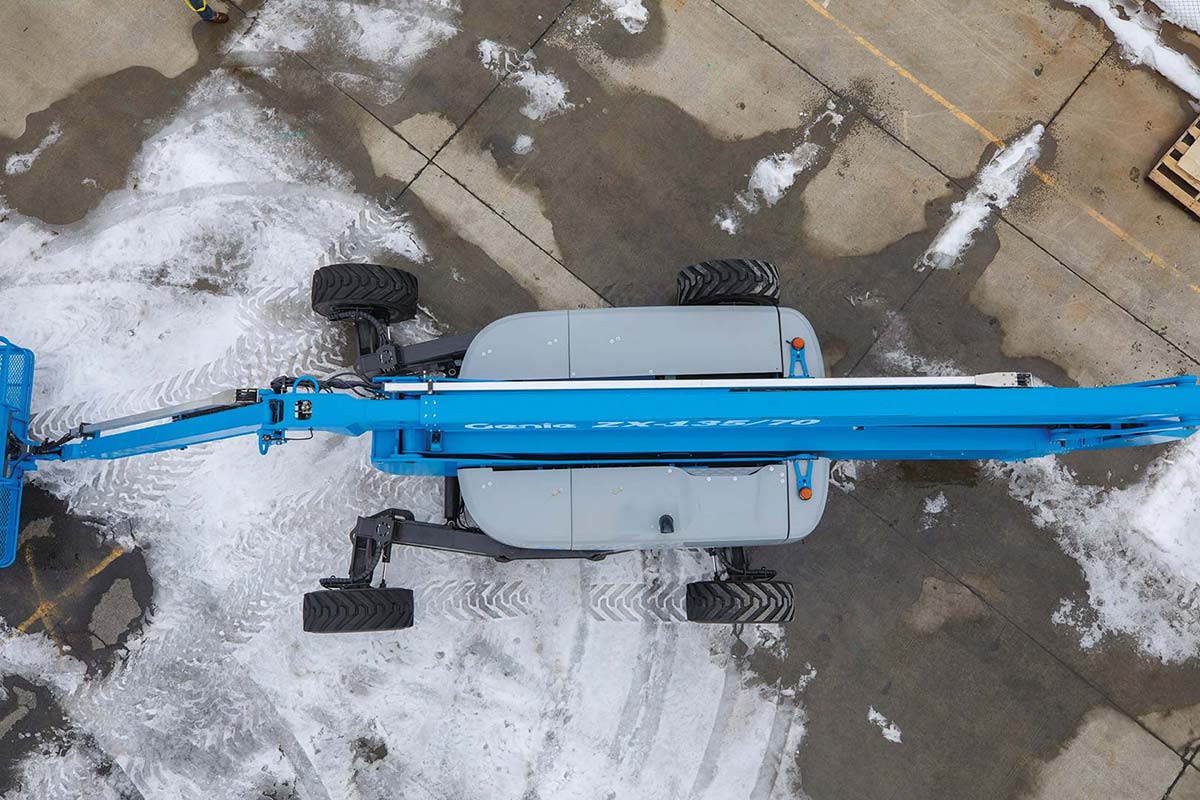

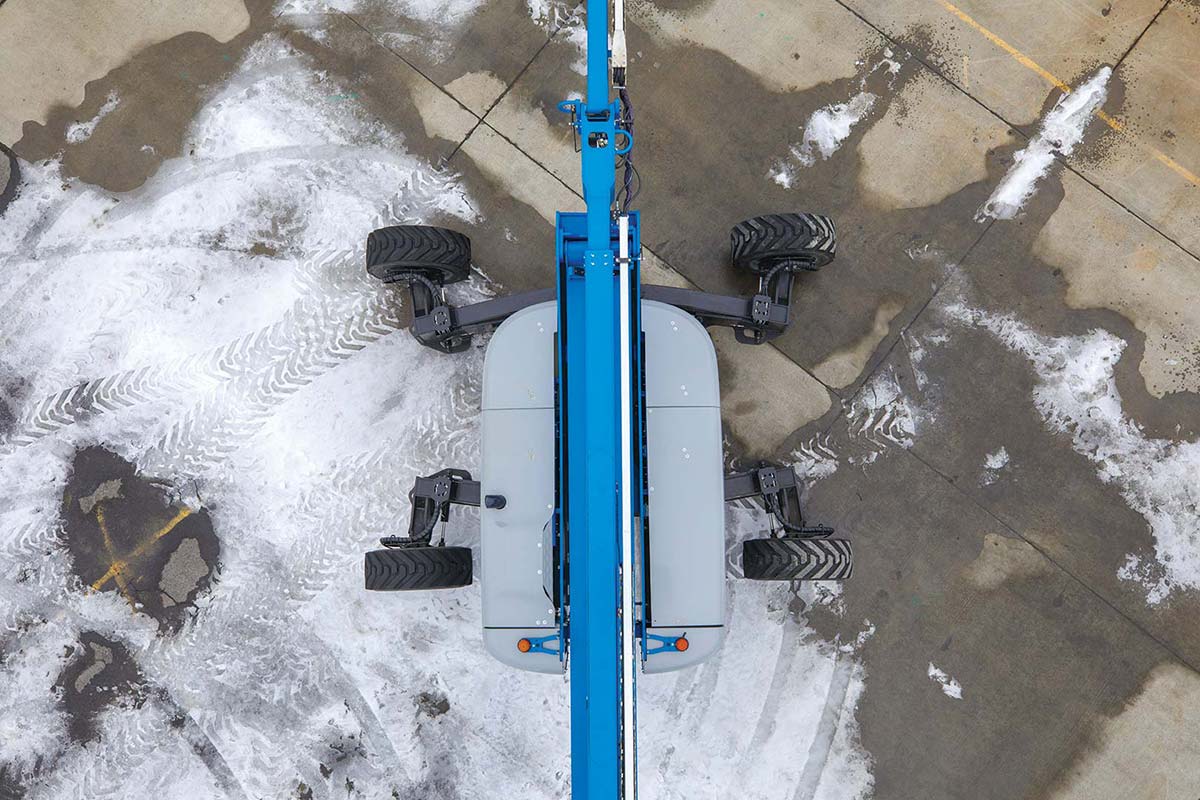

• Mini Genie X-Chassis® system extends and retracts to provide both stability on the job and a narrow profile for transport
• 3.66 m to 6.10 m (12 ft to 20 ft) telescoping Jib-Extend® with a 110˚ vertical range of motion
• 360˚ continuous rotation turntable and 160˚platform rotation for fast, easy positioning
• Four-wheel steer with front-wheel, rear-wheel, crab and coordinated steer options available to provide additional manoeuvrability

Specification Value
Max Working Height 141 ft | 43.15 m
Max Horizontal Reach 69 ft 9 in | 21.26 m
Max Up and Over Clearance (riser extended) 75 ft 6 in | 23.01 m
Below Ground Reach 19 ft 3 in | 5.87 m
Platform Capacity 600 lb | 272 kg
  • ZX-135_70 Product Specifications 2024
  • To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
    The relevant specification data will be on the last page.
