The Genie® SX™-180 telescopic boom lift offers operators access to jobsites inaccessible by other booms, boom trucks and cranes. It is purpose-built to work on jobsites in the oil and gas industries and in indu...
Telescopic Boom Lift

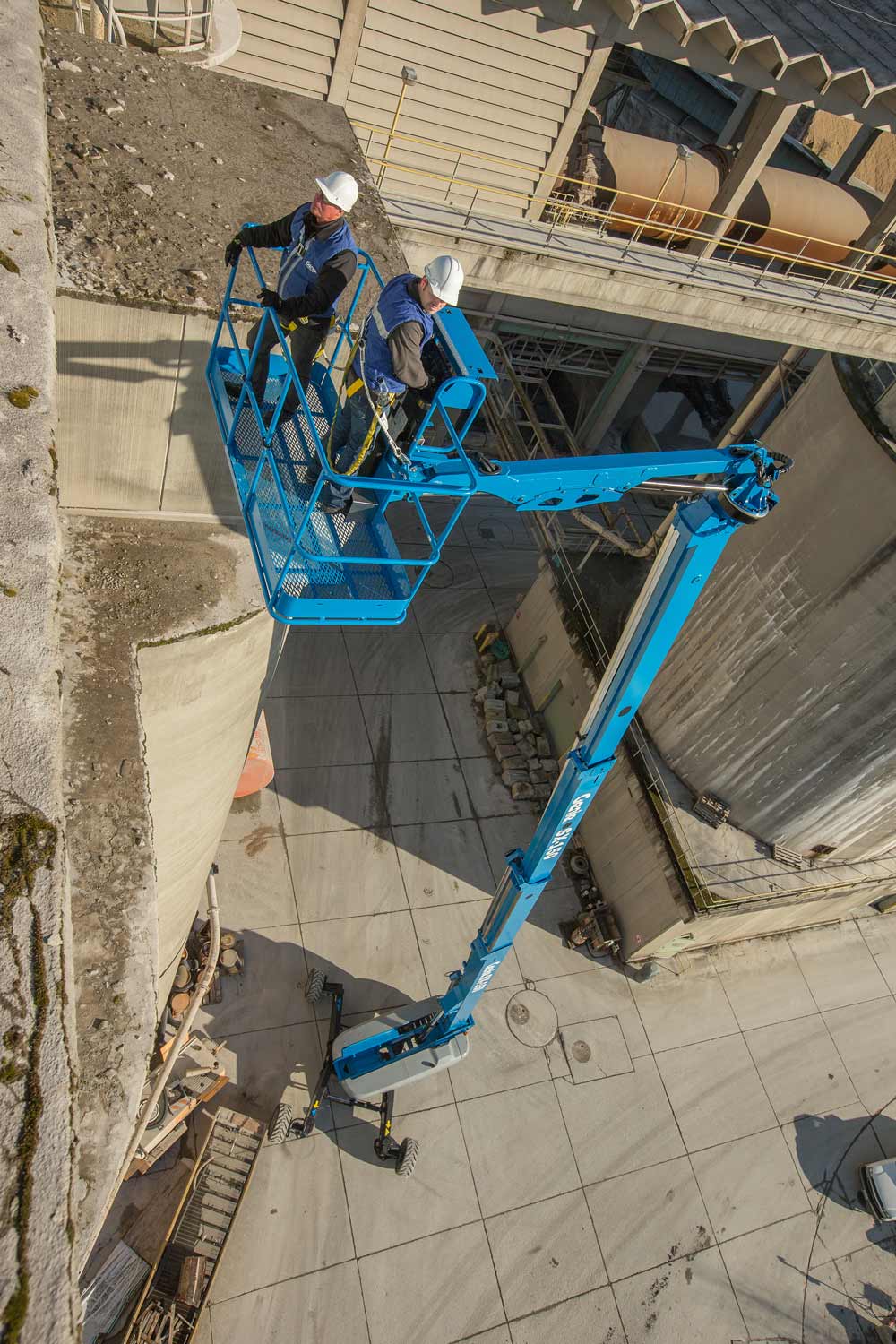

The Genie® SX™-150 telescopic boom lift offers uncompromising productivity and industry-leading capacity through the full working envelope. This Genie boom is designed to perform in even the most extreme construction, maintenance, telecommunications, gas and oil, chemical maintenance, and large utility applications.
• Genie XChassis™ system extends and retracts to provide stability on the job and a narrow profile for transport
• 3.05 m (10 ft) rotating jib with 135˚ vertical and 60˚ horizontal articulation to easily position workers and gear
• Standard 2.44 m (8 ft) self-levelling platform with an unrestricted capacity of 340 kg (750 lb)
• Drive-enable at full height for more productivity on the jobsite
• Features a working envelope ideal for the most extreme access jobs with a working height of 48.33 m (158 ft) and a horizontal reach of 24.38 m (80 ft)
|Max Working Height||157 ft | 48.02 m|
|Max Horizontal Reach||80 ft | 24.38 m|
|Max Up and Over Clearance (riser extended)||2 ft | 0.61 m|
|Platform Capacity||750 lb | 340 kg|
|Machine Width and Length||8 ft 2 in / 53 ft 1 in | 2.49 m / 16.18 m|
