Z-80/60

Articulated Boom Lifts

Genie Z-80/60 articulating boom lift

With outreach that’s second to none, the Genie® Z®-80/60 articulating boom lift delivers outstanding lifting versatility with up, out and over positioning capabilities — ideal for outdoor construction and industrial applications.

Overview

• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and full-time positive traction for a smooth ride on rough ground conditions
• Reverse-articulating secondary boom with 8.83 m (29 ft) of up and over reach and zero front arm swing
• 1.83 m (6 ft) articulating jib with a 135° vertical rotation to accurately position workers
• Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height

Get a Quote Order Parts Manuals
Specification Value
Max Working Height 84 ft | 25.77 m
Max Horizontal Reach 60 ft | 18.29 m
Max Up and Over Clearance (riser extended) 29 ft | 8.83 m
Below Ground Reach 15 ft 10 in | 4.83 m
Platform Capacity 500 lb | 227 kg
  • Z-80/60 Product Specifications 2023
  • To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
    The relevant specification data will be on the last page.

Image and Video Gallery

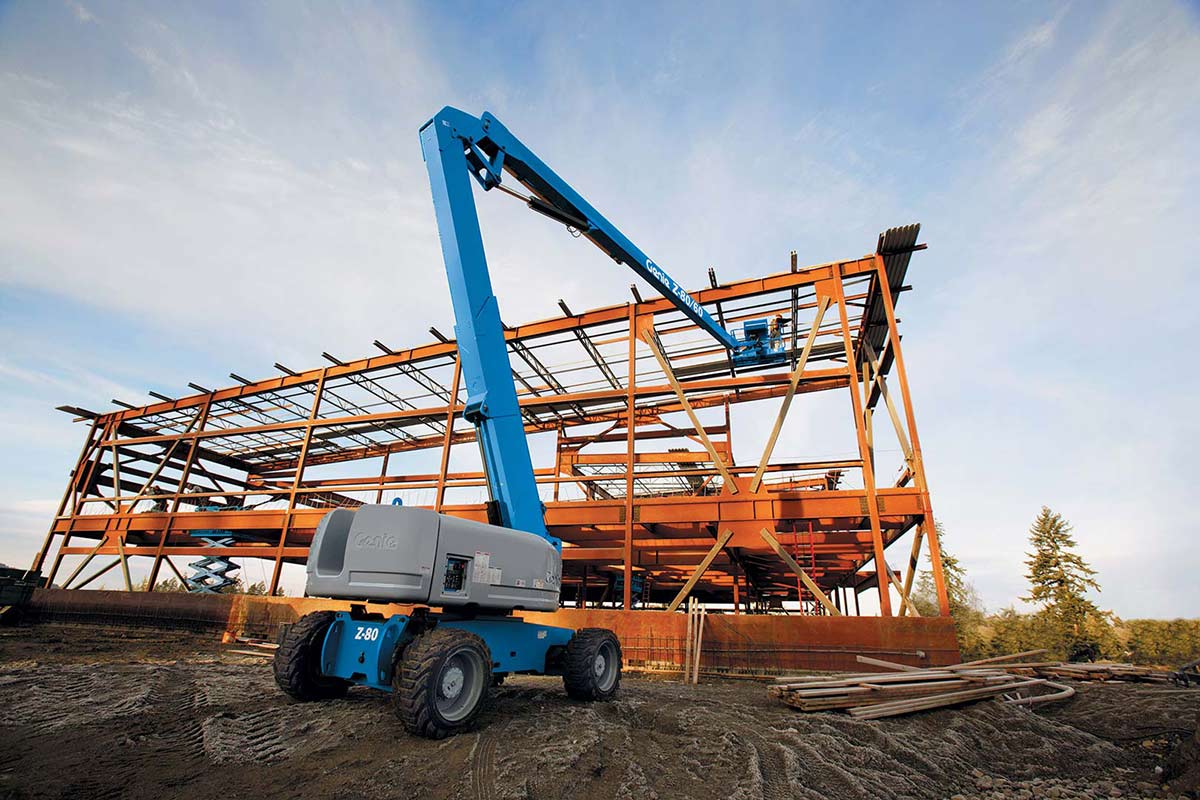

View Z-8060_Alt5 Image Genie Z-80/60 articulating boom lift

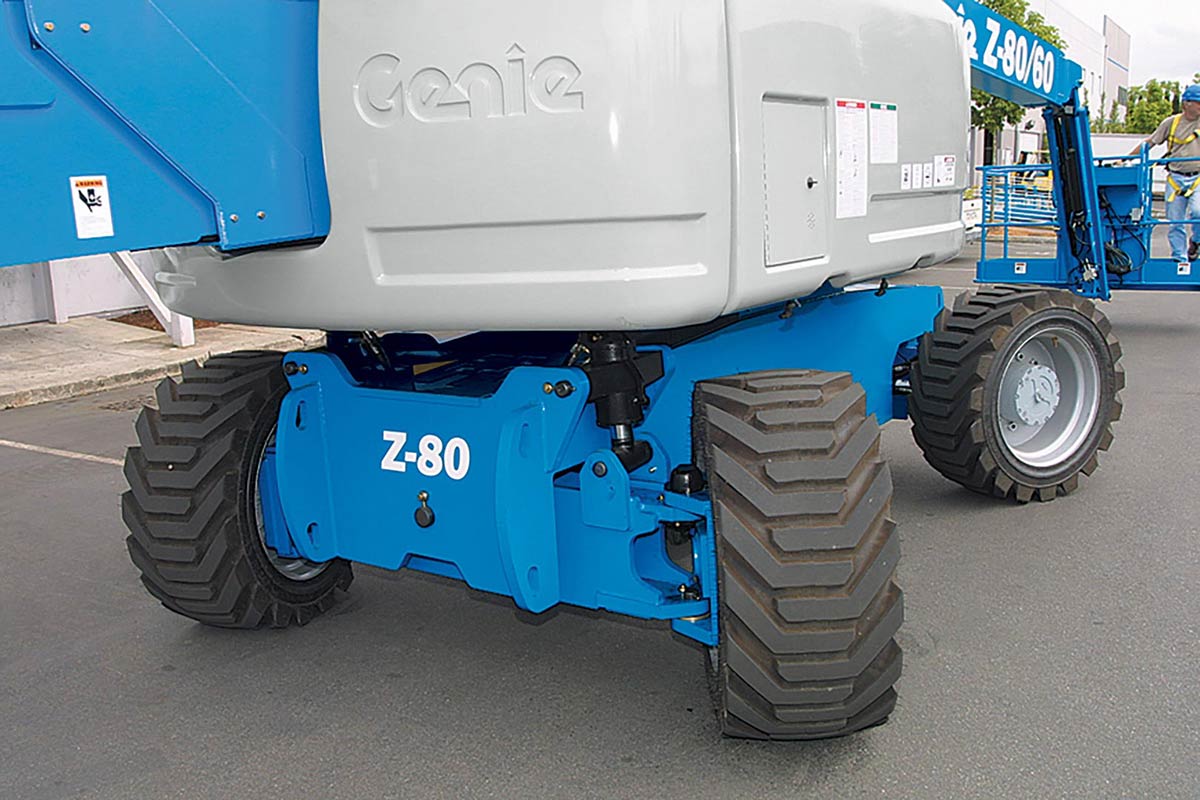

View Z-8060_Alt6 Image Genie Z-80/60 articulating boom lift

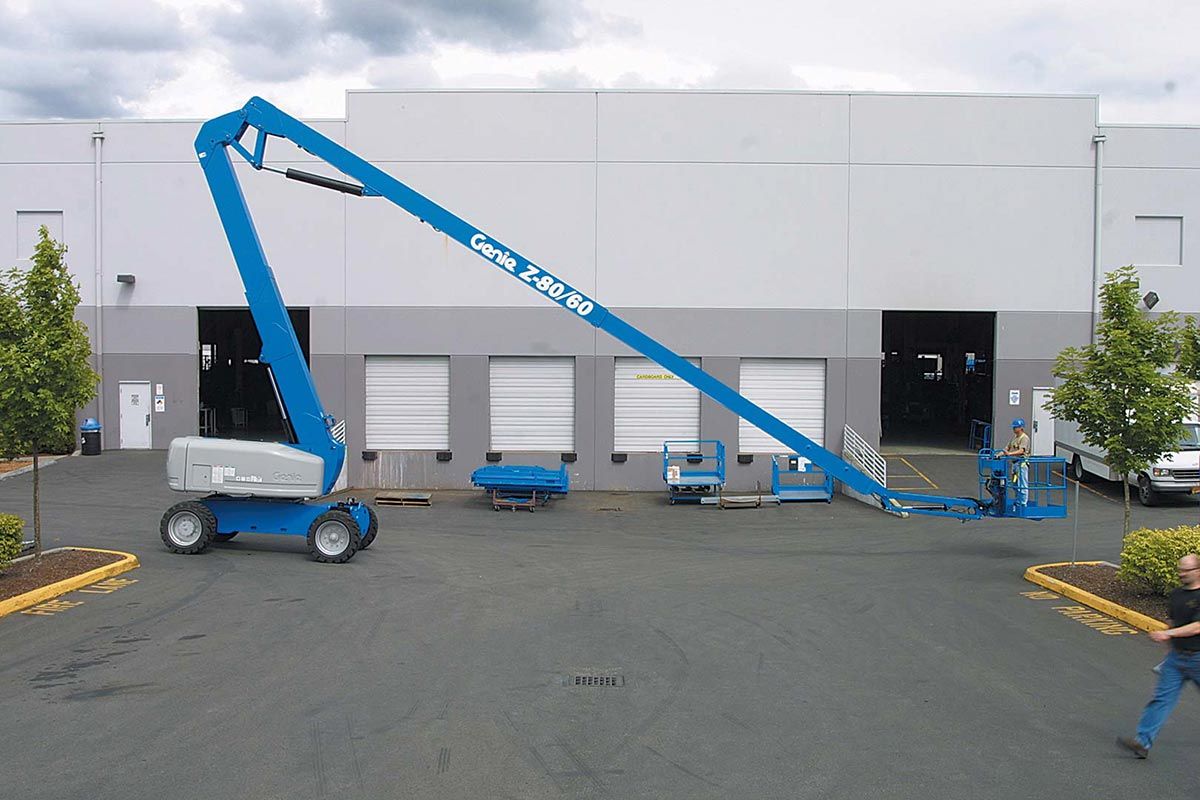

View Z-8060_Alt3 Image Genie Z-80/60 articulating boom lift

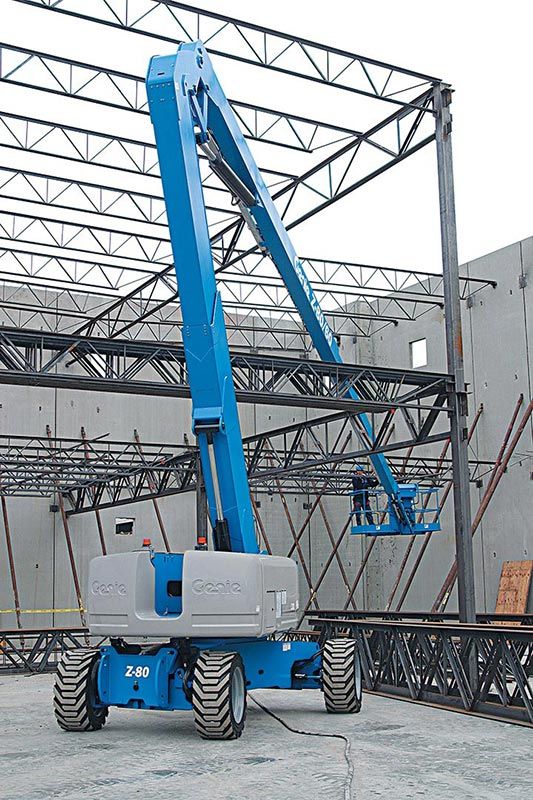

View Z-8060_Alt4 Image Genie Z-80/60 articulating boom lift

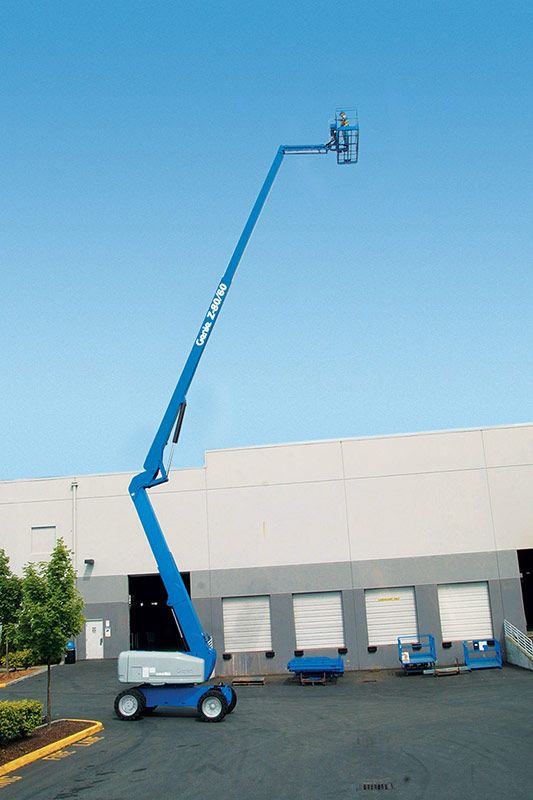

View Z-8060_Alt2 Image Genie Z-80/60 articulating boom lift
