The Genie® SX™-180 telescopic boom lift offers operators access to jobsites inaccessible by other booms, boom trucks and cranes. It is purpose-built to work on jobsites in the oil and gas industries and in indu...
Telescopic Boom Lift

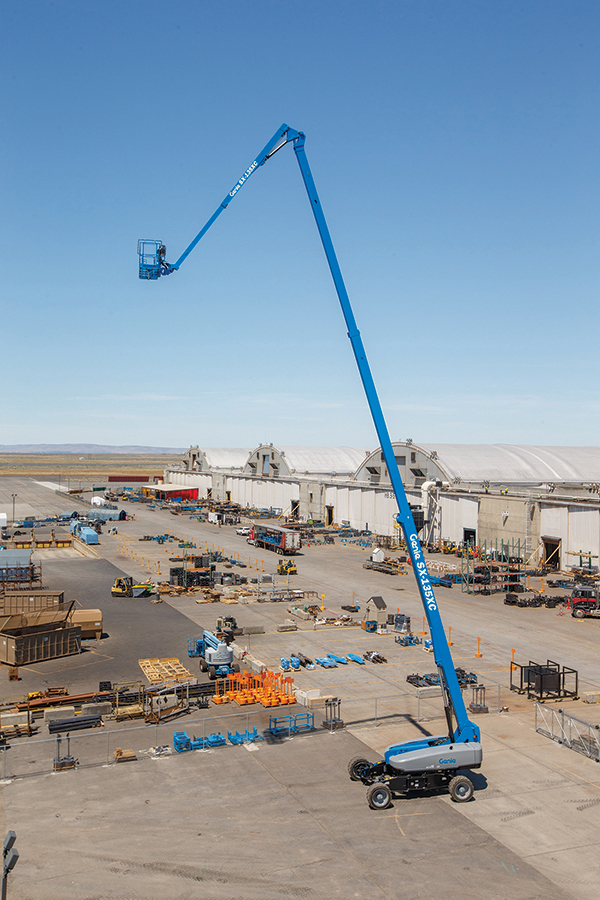

The Genie® SX™-135 XC™ telescopic boom lift provides 3 m (10 ft) more outreach and 32 per cent more capacity across its full working envelope than typical self-propelled booms of this size. Thanks to its unique up-and-over style capability, operators will easily navigate any obstacles at height.
• Mini Genie XChassis™ design for easy transport
• 5.48 m to 9.14 m (18 to 30 ft) telescoping Jib-Extend™ with 125˚ articulation, for an increased range of motion
• Dual lifting capacity of 300 kg (660 lb) and 454 kg (1,000 lb) to lift increased loads and up to 3 operators
• Impressive outreach (27.43 m - 90 ft) and below-grade (6 m - 19 ft 8 in) capabilities
• Automatic envelope control and chassis tilt sensor technology for smooth operation
• Zero-load field calibration and onboard diagnostics maximize serviceability
|Max Working Height||141 ft | 43.15 m|
|Max Horizontal Reach||90 ft | 27.43 m|
|Below Ground Reach||19 ft 8 in | 6.00 m|
|Platform Capacity||660 lb Unrestricted, 1000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted|
|Machine Width and Length||12 ft 11 in / 64 ft 10 in | 3.94 m / 19.76 m|
