Z-45/25J DC
Articulated Boom Lifts
The Genie® Z®-45/25J DC electric and bi-energy articulating boom lifts offer quiet, emission-free operation in the most sensitive work environments. They’re 48V DC machines with a diesel-powered generator acting as a 100-amp battery charger, making these articulating boom lifts ideal for indoor and outdoor applications.
Overview
- 2WD travels at 3 mph (4.8 km/h) with 30% gradeability
- Large 6 ft (1.83 m) all-steel platform lifts up to 500 lb (227 kg)
- Self-leveling platform features a 160° hydraulic rotation for Genie Z-45/25 J models
- Self-leveling platform features 180° powered rotation for precise positioning and easy operation
| Specification | Value |
|---|---|

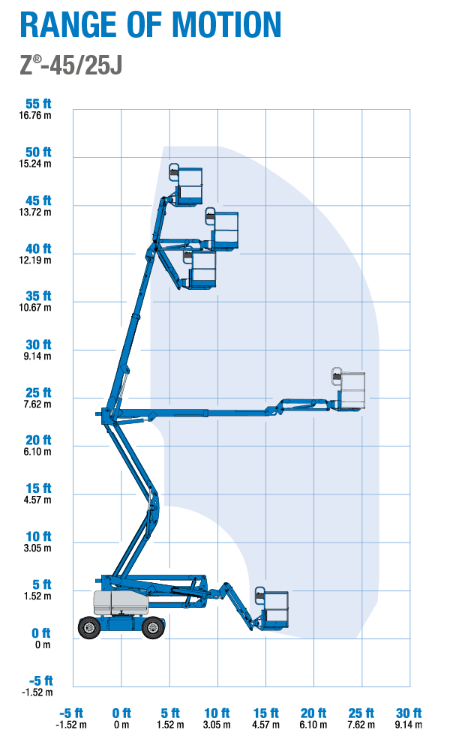

| Max Working Height | 51 ft 9 in | 15.94 m |
| Max Horizontal Reach | 22 ft 8 in | 6.91 m |
| Max Up and Over Clearance (riser extended) | 21 ft 3 in | 6.48 m |
| Platform Capacity | 500 lb | 227 kg |
- Z-4525J DC Product Specifications 2022 (ANSI)
- Z-4525J DC Product Specifications 2022 (CE)
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
