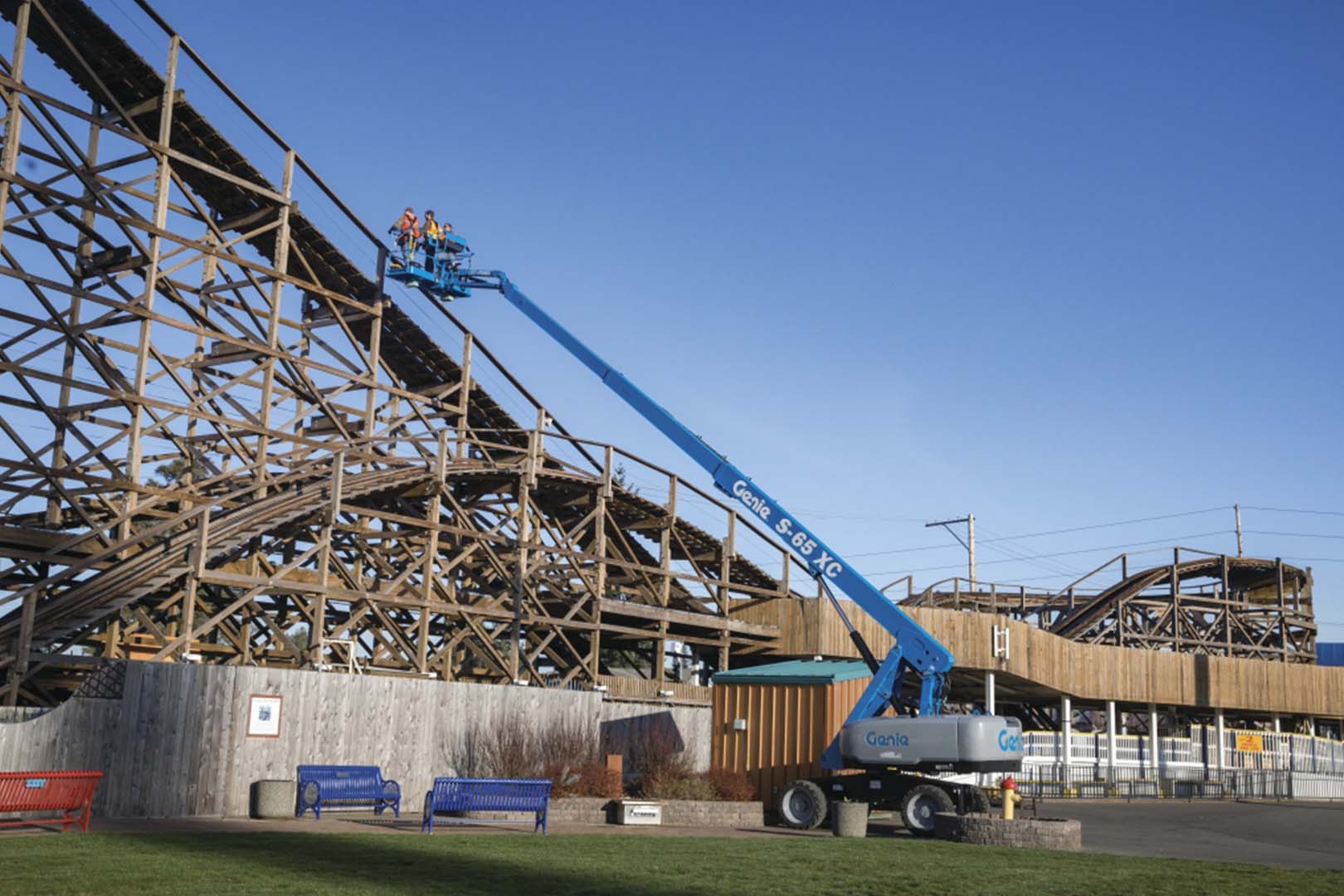

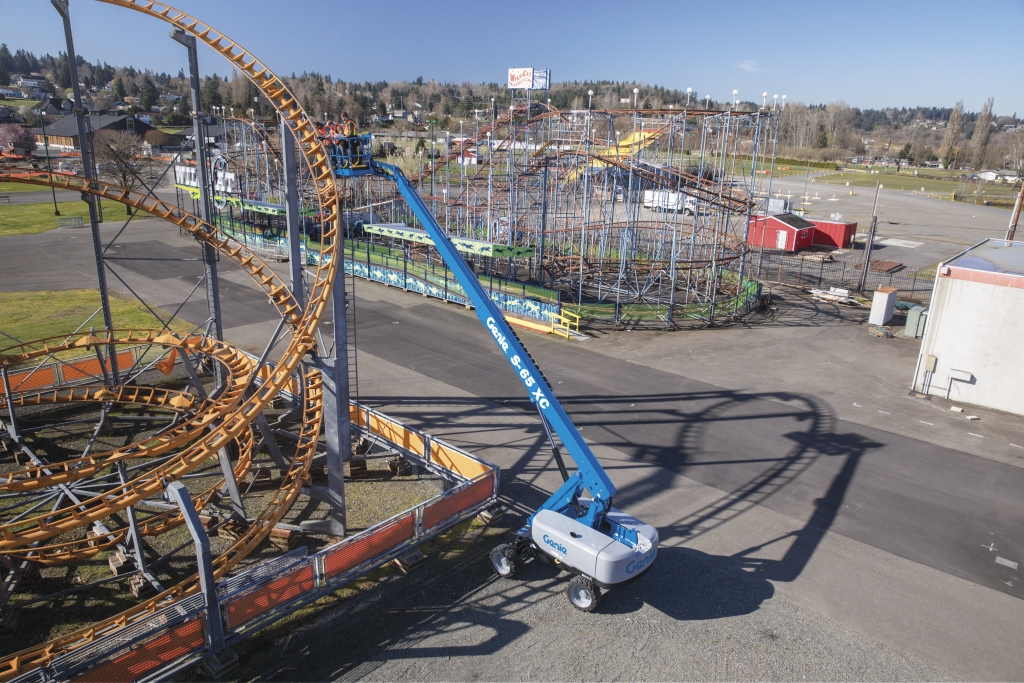

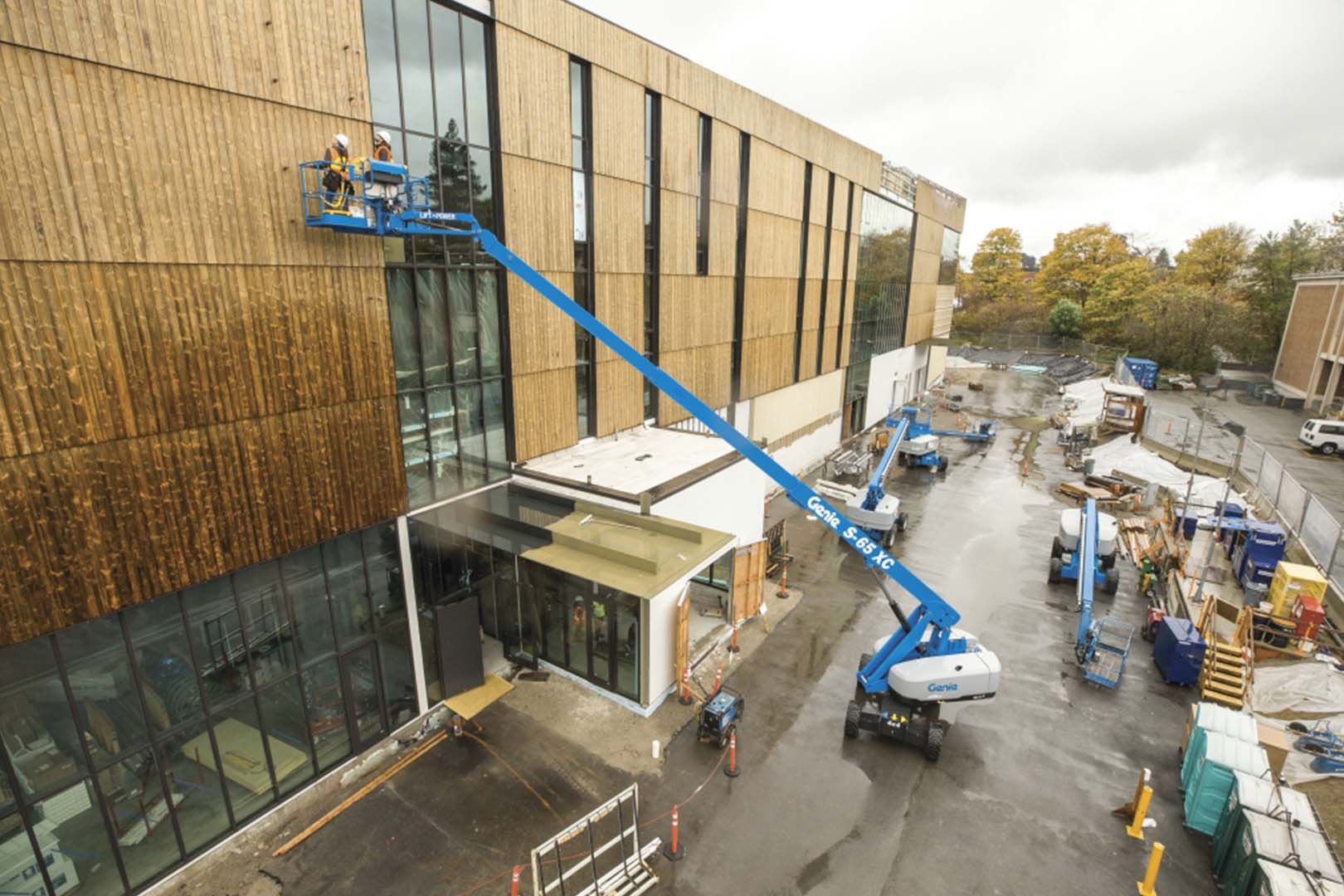

S-65 XC and S-65 TraX
Telescopic Boom Lift
Genie® S®-65 XC™ and S-65 TraX™ telescopic boom lifts are the redesigned Xtra Capacity™ version of the popular Genie S-65 and S-65 TraX. They can perform a wider range of heavier lift tasks on construction and industrial jobsites thanks to their dual lift capacity and offer innovative features to help increase jobsite efficiency.
S-65 XC Overview
• Full-time active oscillating axle and full-time positive traction for superior terrainability
• Chassis tilt sensor technology maximizes access to hard-to-reach work areas
• 1.52 m/5 ft robust articulating jib
• Dual lifting capacity of 300 kg/660 lb and 454 kg/1,000 lb to lift increased loads and up to 3 operators
• Automatic envelope control technology for a smooth operating envelope
• Zero-load field calibration and onboard diagnostics maximize serviceability

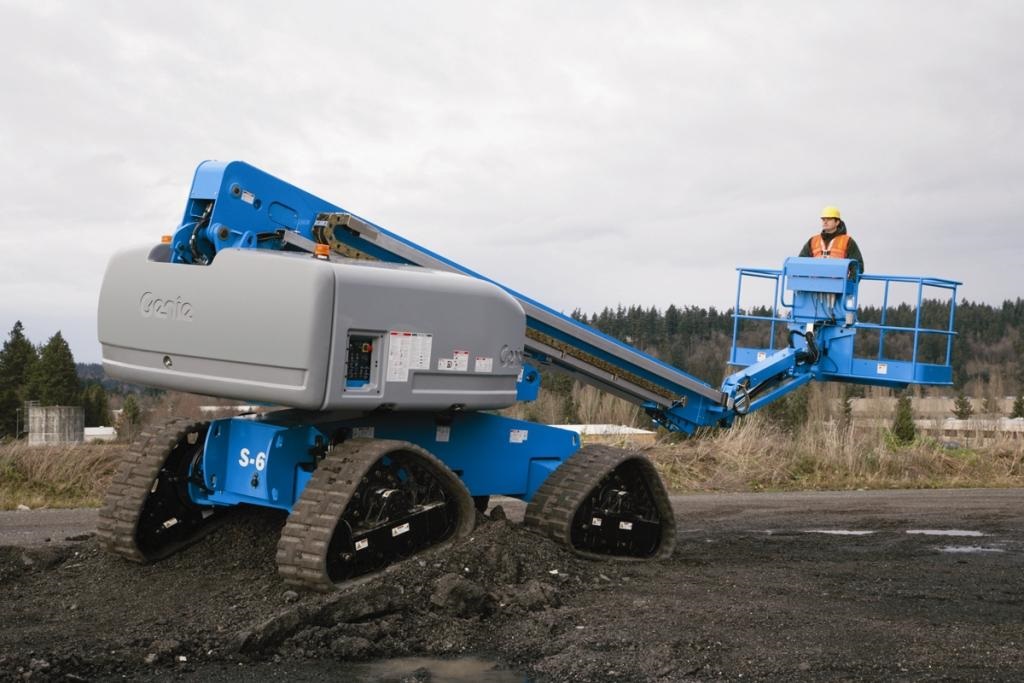

S-65 TraX Overview
• Same features as above
• Patented track design features 4 independent tracks, swivelling vertically up to 20° for a smooth drive on rough ground conditions
• 30° steer angle for easy manoeuvring
| Specification | Value |
|---|---|
| Max Working Height | 71 ft | 21.81 m |
| Max Horizontal Reach | 54 ft 2 in | 16.51 m |
| Below Ground Reach | 8 ft 8 in | 2.65 m |
| Platform Capacity | 660 lb Unrestricted, 1,000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted |
| Machine Width | S-65 XC: 8 ft 2 in, 32 ft | S-65 TraX: 8 ft 6 in, 32 ft | S-65 XC: 2.49 m, 9.76 m | S-65 TraX: 2.58 m, 9.76 m |
- S-65 XC & S-65 TraX Product Specifications 2024
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
