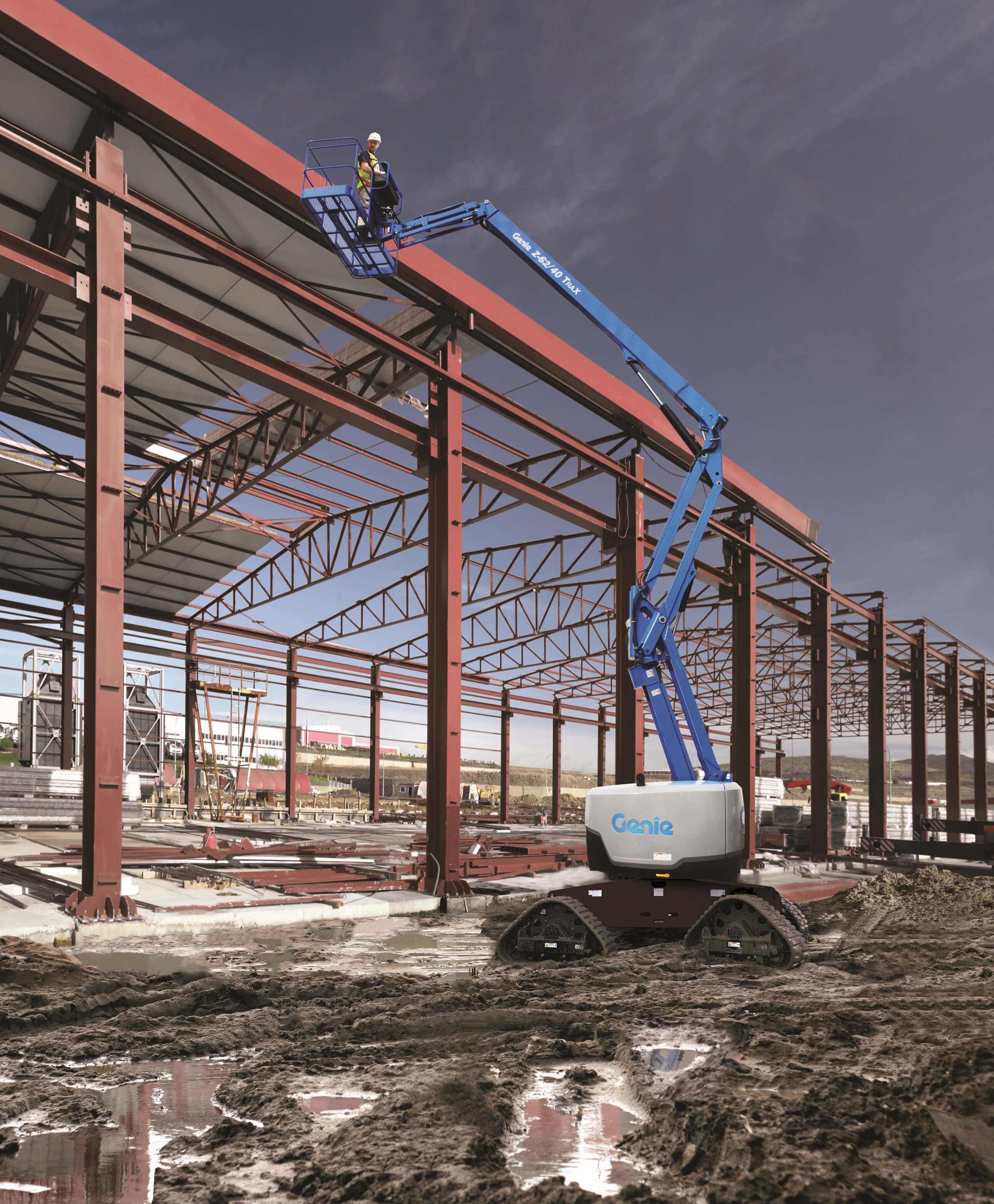

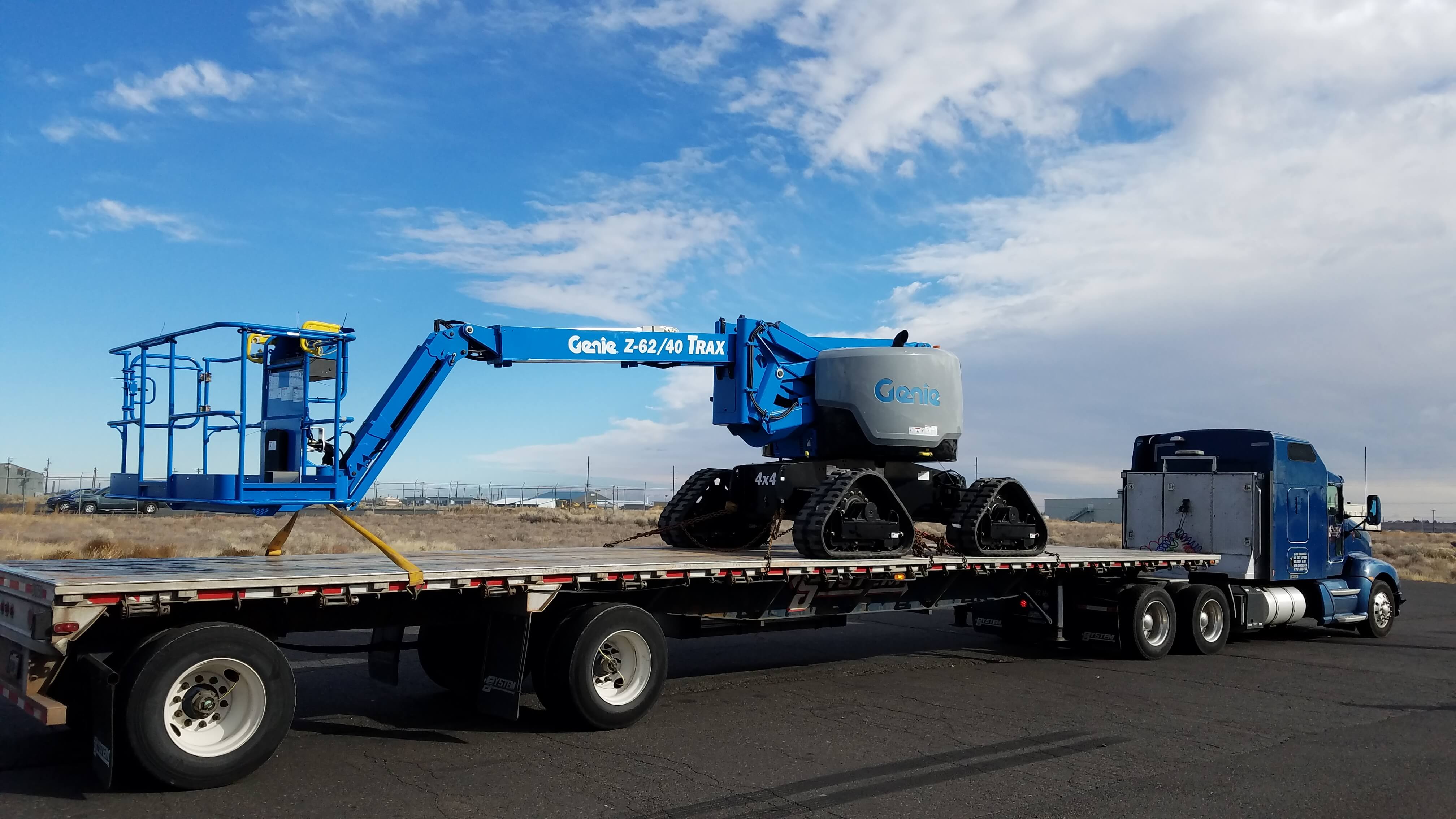

Z-62/40 and Z-62/40 TraX
Ideal for outdoor construction and industrial applications, the Genie® Z®-62/40 & Z-62/40 TraXTM articulating boom lifts with rough terrain capabilities provide lifting versatility with a combination of up, out and over positioning capabilities with outreach that’s second to none. Four-wheel steering and exclusive Genie TraX™ track drive system options available.
Overview
- The 5-ft (1.52 m) jib features a 135° range of motion to accurately position workers
- Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height
- 4WD and full-time active oscillating axles provide traction for gradeability up to 45%
- Four-wheel steering and exclusive Genie TraX™ track drive systemoptions available
| Specification | Value |
|---|---|
| Max Working Height | 67 ft 11 in | 20.87 m |
| Max Horizontal Reach | 40 ft 9 in | 12.42 m |
| Max Up and Over Clearance (riser extended) | 25 ft 7 in | 7.8 m |
| Platform Capacity | 500 lb | 227 kg |
- 2024 Spec Sheet Z62_40 and Z62_40TRAX ANSI (SEA)
- 2024 Spec Sheet Z62_40 and Z62_40TRAX CE (SEA)
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
Chassis Options
- Tow package
- 4 wheel steering
Tire Options
- Z-62 Trax: Quadra Track System, requires 4WD
- High floatation tires: requires 4WD; includes additional counterweight
- Rough terrain foam-filled tires (water based)
- Rough terrain foam-filled tires (petroleum based)
- Rough terrain, non-marking air-filled tires
- Rough terrain, non-marking foam-filled tires (water based)
- Rough terrain, non-marking foam-filled tires (petroleum based)
- Tire sealant: air-filled tires only
Engine Options
- 60 hp Ford MSG425, gas/LPG Dual Fuel (not available on Trax)
- 74 hp Deutz Tier 4f TD2.9L4, turbo diesel (standard with Trax)
- Diesel air intake pre-cleaner
- LPG tank, 33.5 lb. capacity: Ford engine only
- LPS fire protection rating: Ford engine only and requires LP only operation
- Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater, hydraulic tank heater
- Ford engine gauge package: oil pressure, temperature and voltage(excludes turbo)
Lift/Turntable Options
- Specialty hydraulic oil (50 gal - cold weather, fire resistant, or biodegradable)
- Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
- Deluxe hostile environment kit : hostile environment kit, center turntable shield, ring gear guard, tail pipe guard, and air pre-cleaner
Platforms
- 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
- 6 ft. dual entry platform with side swing gate
Platform Options
- AC generator, 110V/60Hz, or 220V/50Hz, 3000W, hydraulically driven
- Air line to platform: ½ in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Aircraft protection kit: with swing gate
- Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
- Lockable platform and ground control box covers
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Welder - Select Lincoln or Miller
- Welder ready package
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
