Z-80/60
Articulated Boom Lifts
With outreach that’s second to none, the Genie® Z®-80/60 articulating boom lift delivers outstanding lifting versatility with up, out and over positioning capabilities — ideal for outdoor construction and industrial applications.
Overview
- Genie® Fast Mast™ system lowers the platform to the ground without having to lower the secondary boom; raises primary and secondary booms simultaneously
- Full-time positive traction and full-time 4WD for a smooth ride on rough ground conditions
- Reverse-articulating secondary boom with 29 ft (8.83 m) of up and over reach and zero front arm swing
- Quiet diesel engine options for increased performance, gradeability and terrainability
| Specification | Value |
|---|---|
| Max Working Height | 84 ft | 25.77 m |
| Max Horizontal Reach | 60 ft | 18.29 m |
| Max Up and Over Clearance (riser extended) | 29 ft | 8.83 m |
| Below Ground Reach | 15 ft 10 in | 4.83 m |
| Platform Capacity | 500 lb | 227 kg |
- Z-80/60 - 2023 Spec Sheet ANSI (SEA)
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
Chassis Options
- 4 wheel steering
Tire Options
- Rough terrain, foam-filled tires (petroleum based)
- Rough terrain, non-marking, foam-filled tires (water based)
- Rough terrain, non-marking, foam-filled tires (petroleum based)
- High floatation, rough terrain, air-filled tires: requires 4WD and includes additional counterweight and higher torque wheel drive motors
Engine Options
- 70 hp GM Vortec 3.0L Gas/LPG Dual Fuel
- Diesel air intake pre-cleaner
- LPG tank, 33.5 lb. capacity: Duel Fuel engine only
- Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater, hydraulic tank heater
Lift/Turntable Options
- Specialty hydraulic oil (80 gal - cold weather, fire resistant, or biodegradable)
- Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
- Deluxe hostile environment kit: hostile environment kit, center turntable shield, ring gear guard, tail pipe guard, engine cover flaps and air pre-cleaner
Platforms
- 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
- 6 ft. dual entry platform with side swing gate
Platform Options
- AC generator, 110V/60Hz, 110V/ 50Hz, or 220V/50Hz, 3000W, hydraulically driven
- Air line to platform: ½ in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Aircraft protection kit: with swing gate
- Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
- Lockable platform and ground control box covers
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Welder - Select Lincoln or Miller
- Welder ready package
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
Image and Video Gallery
Related Products, Attachments and Accessories
-
![Genie ZX-135/70 articulating boom lift]()
-
![Z-60 FE]()
Z-60 FE
Two machines in one, the Genie® Z®-60 FE hybrid articulating boom lift is the ideal, environment-friendly solution for increased efficiency and low cost of operation. In ‘all-electric’ mode it offers a full wor...
-

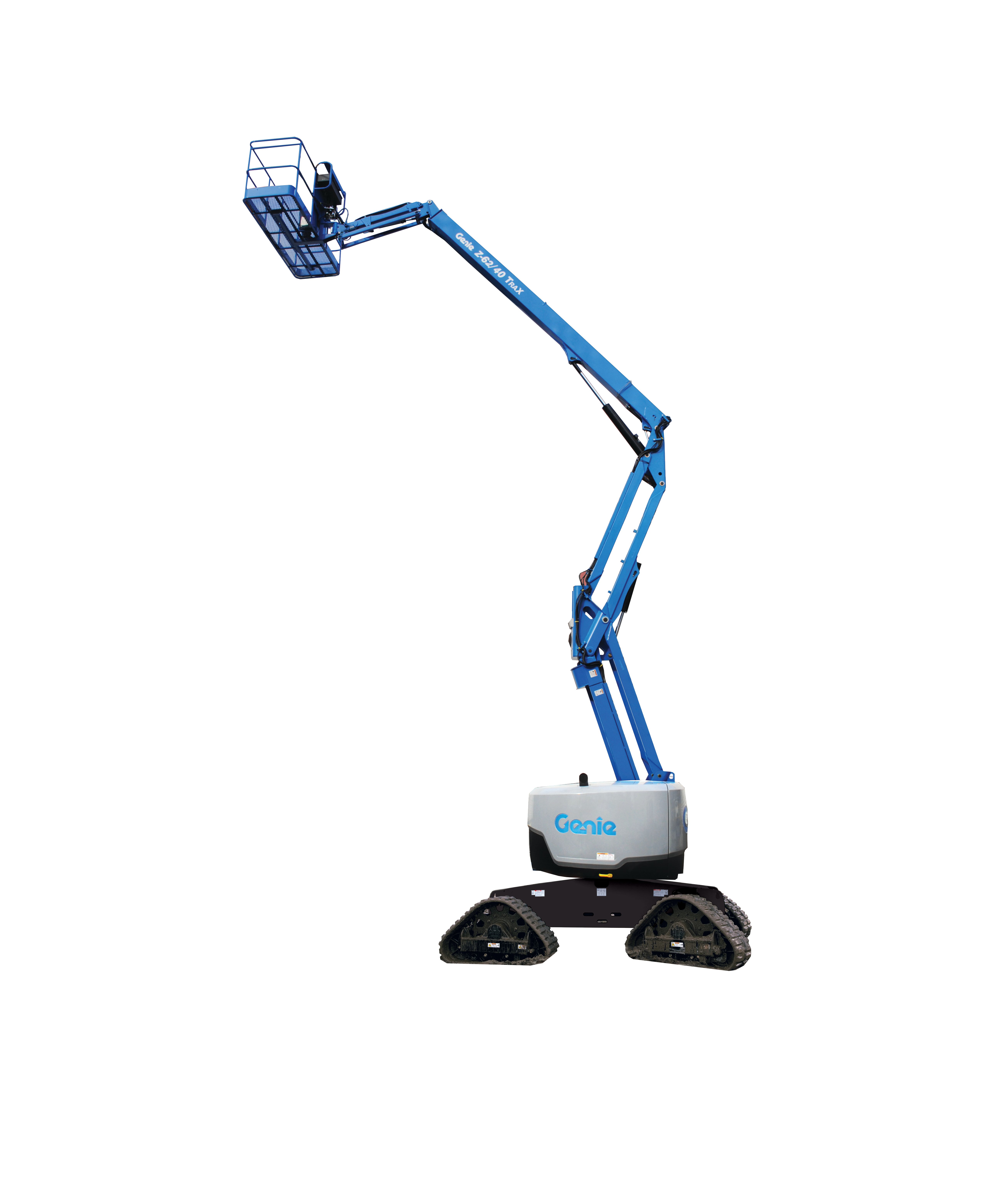

![Genie Z-62/40 articulating boom lift]()
