GS-4069 DC
Equipped with a patented full-time oscillating axle automatically adjusts the axle position based on ground conditions, the Genie® GS™-4069 DC rough terrain slab scissor lift is excellent for indoor and outdoor...
GS-4046
Slab Scissor Lifts
c6650b5960b74d5fa8ef7da203a391b7.jpg?sfvrsn=c4712a8b_1)
Increase productivity in high-rise spaces with the Next-Generation Genie® GS™-4046 slab scissor lift. With a compact footprint ideal for work in narrow aisles, it features the state-of-the-art Genie AC electric E-Drive system for unmatched performance and runtime in high indoor and outdoor jobsites that require a significant amount of driving on level ground.
Overview
- Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
- Quiet, zero-emission electric operation
- Easy to manoeuvre in tight spaces and to drive through standard double doors

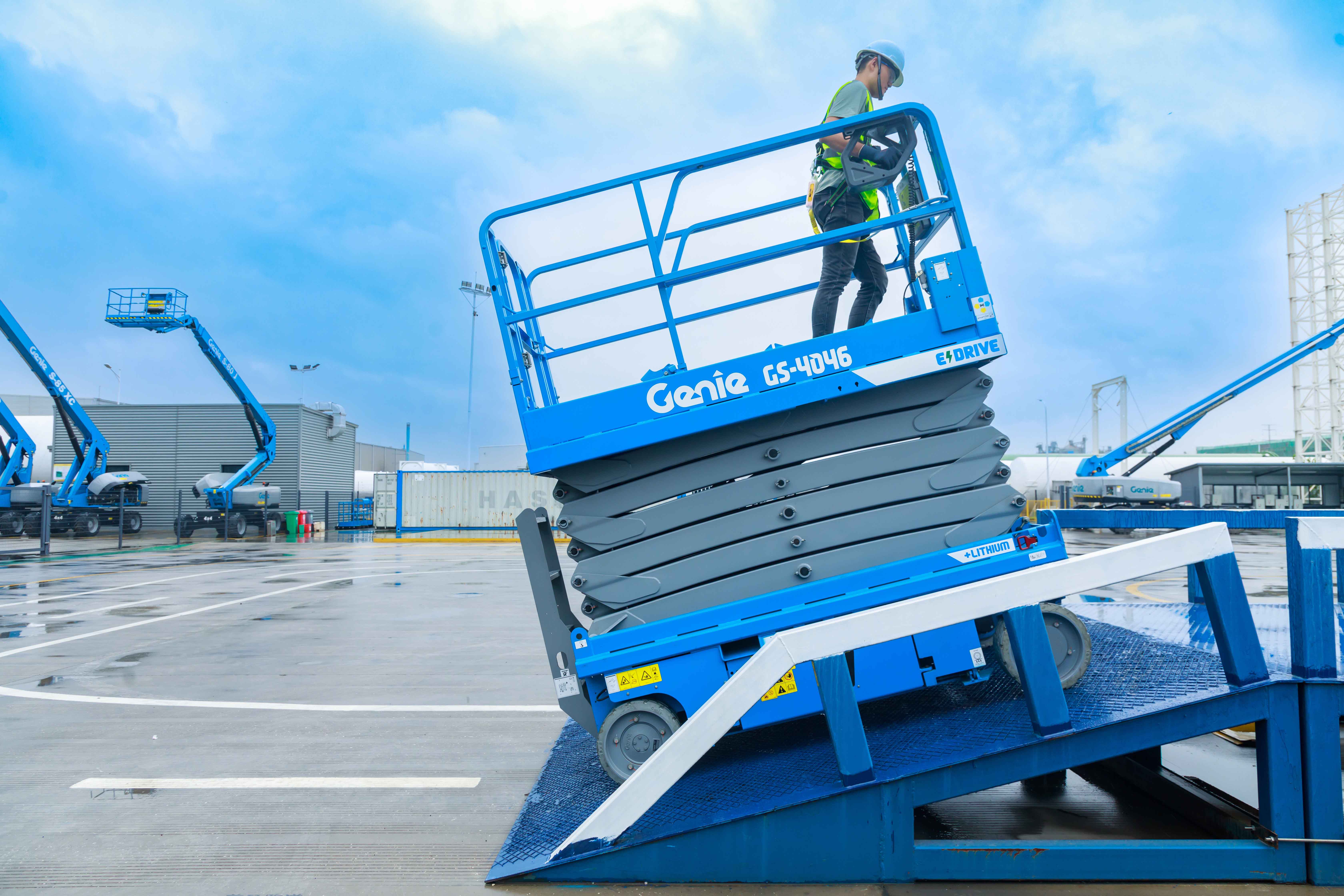

- 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
- 3 person max platform occupancy indoors and 1 person max platform occupancy outdoors
- Large platform workspace with 0.91 m (36 in) roll-out platform extension
- Redesigned, user-friendly platform control box with Smart Link™ dual-zone controls for indoor and outdoor use
- Optional: Genie® Lift Tools™ Spill Guard hydraulic oil containment system

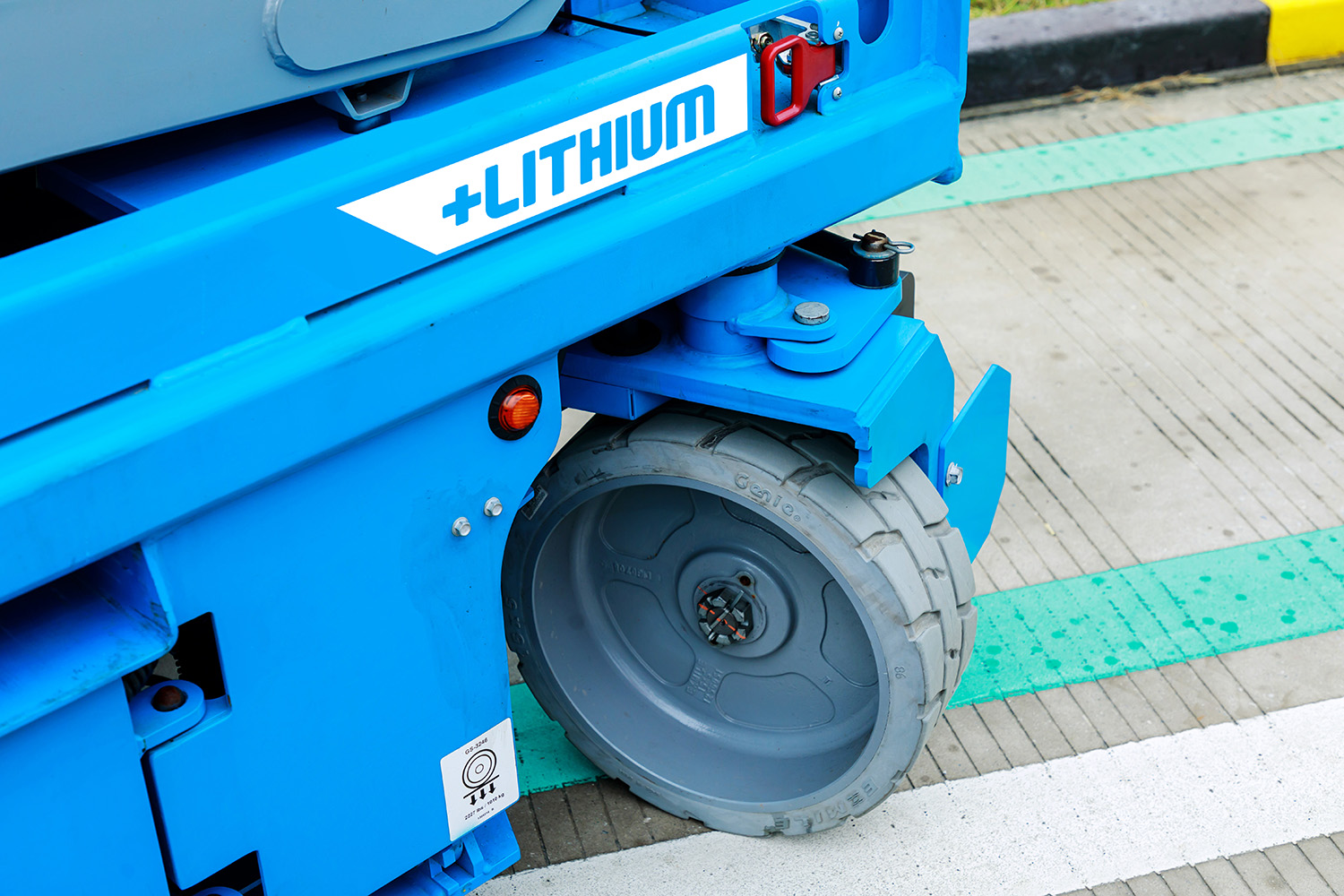

- Optional: Lithium-Ion battery
| Specification | Value |
|---|---|
| Max Working Height | 45 ft 1 in | 13.91 m |
| Platform Capacity | 770 lb | 318 kg |
| Machine Width | 3 ft 10 in | 1.17 m |
| Machine Length | 7 ft 9 in | 2.36 m |
| Weight | 6,268 lb | 3,117 kg |
- GS-4046 Product Specifications 2024 CE
- GS-4046 Product Specifications 2024 ANSI
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
