GS-3246
Slab Scissor Lifts

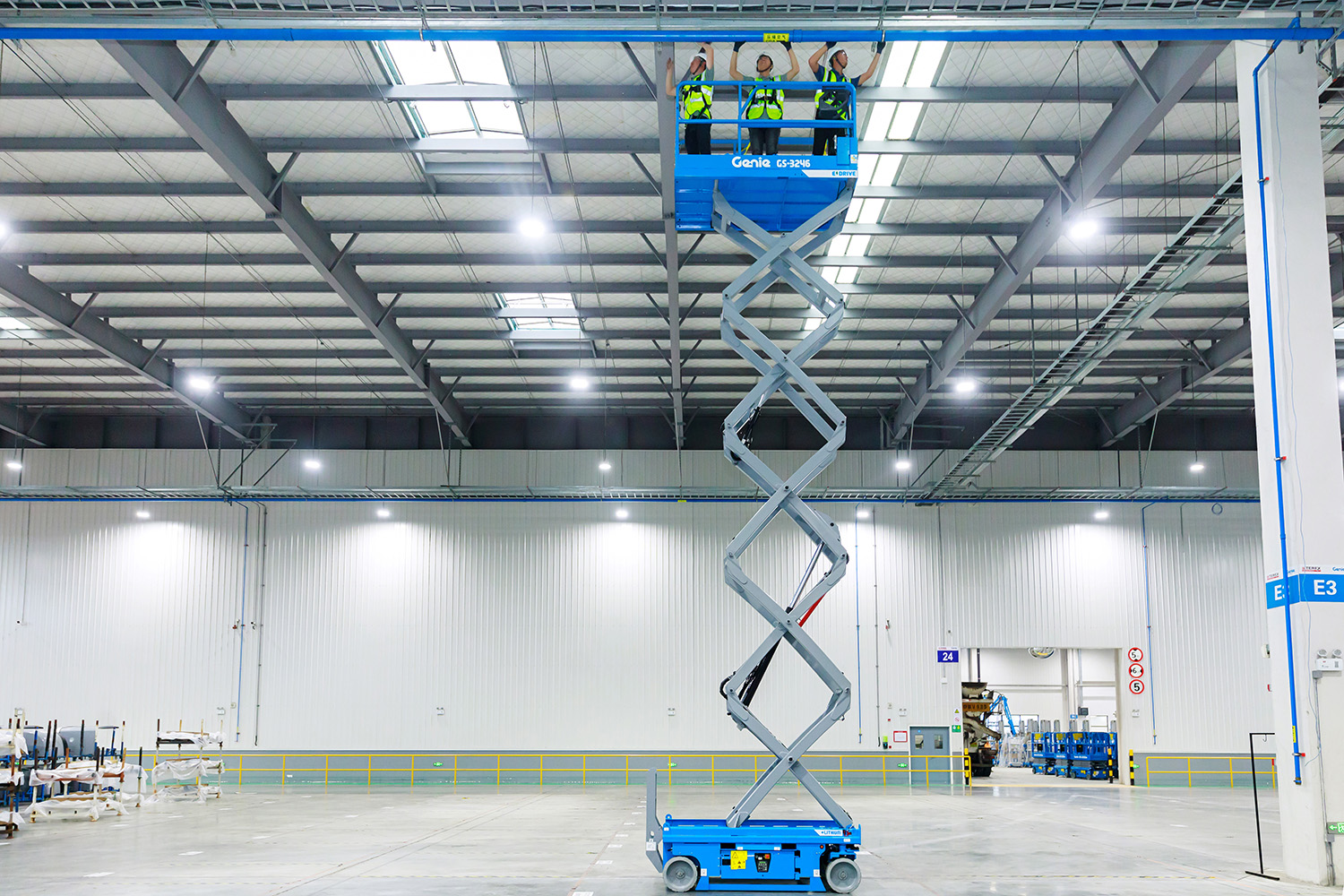

af1a9630b8ff448f9b8477dd60ad86b8.jpg?sfvrsn=5b40db84_1)

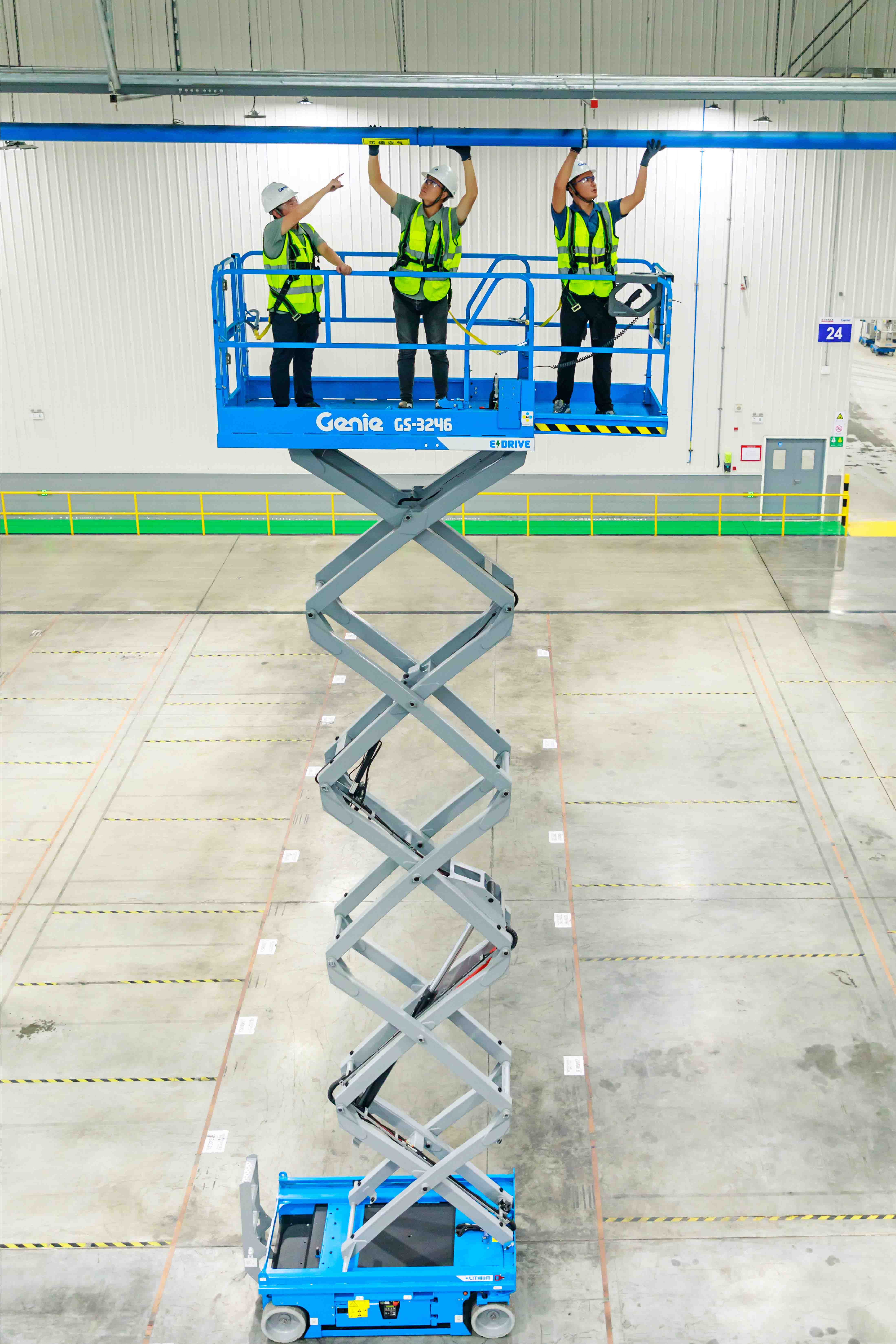

Compact dimensions and zero inside turning radius make the Genie® GS™-3246 slab scissor lift ideal for indoor and outdoor construction, maintenance, and installation tasks on level ground and in tight spaces. Boasting the state-of-the-art Genie AC electric E-Drive system, it offers unmatched efficiency and runtime when a significant amount of driving is required.
Overview
- Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
- Quiet, zero-emission electric operation
- Easy to manoeuvre in tight spaces and to drive through standard double doors
- 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
- Large platform workspace with 0.91 m (36 in) roll-out platform extension
- Swing out components trays for easy access
- Redesigned, user-friendly platform control box with Smart Link™ dual-zone controls for indoor and outdoor use
- Optional: Genie® Lift Tools™ Spill Guard hydraulic oil containment system

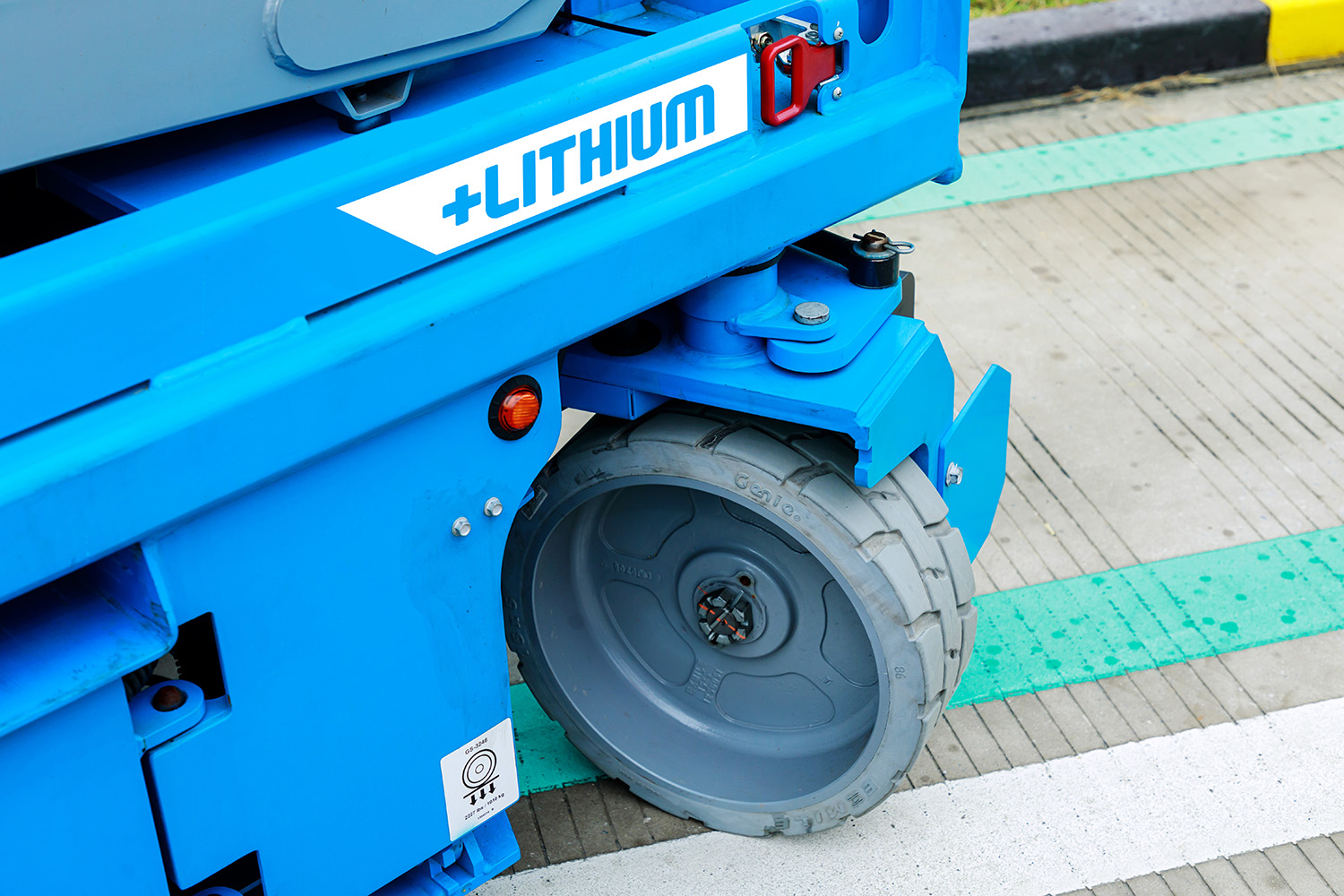

- Optional: Lithium-Ion battery
| Specification | Value |
|---|---|
| Max Working Height | 37 ft 6 in | 11.60 m |
| Platform Capacity | 700 lb | 318 kg |
| Machine Width | 3 ft 10 in | 1.17 m |
| Machine Length | 7 ft 9 in | 2.36 m |
| Weight | 4,867 lb | 2,208 kg |
- GS-3232 & GS-3246 Product Specifications 2024 ANSI
- GS-3232 & GS-3246 Product Specifications 2024 CE
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
Image and Video Gallery

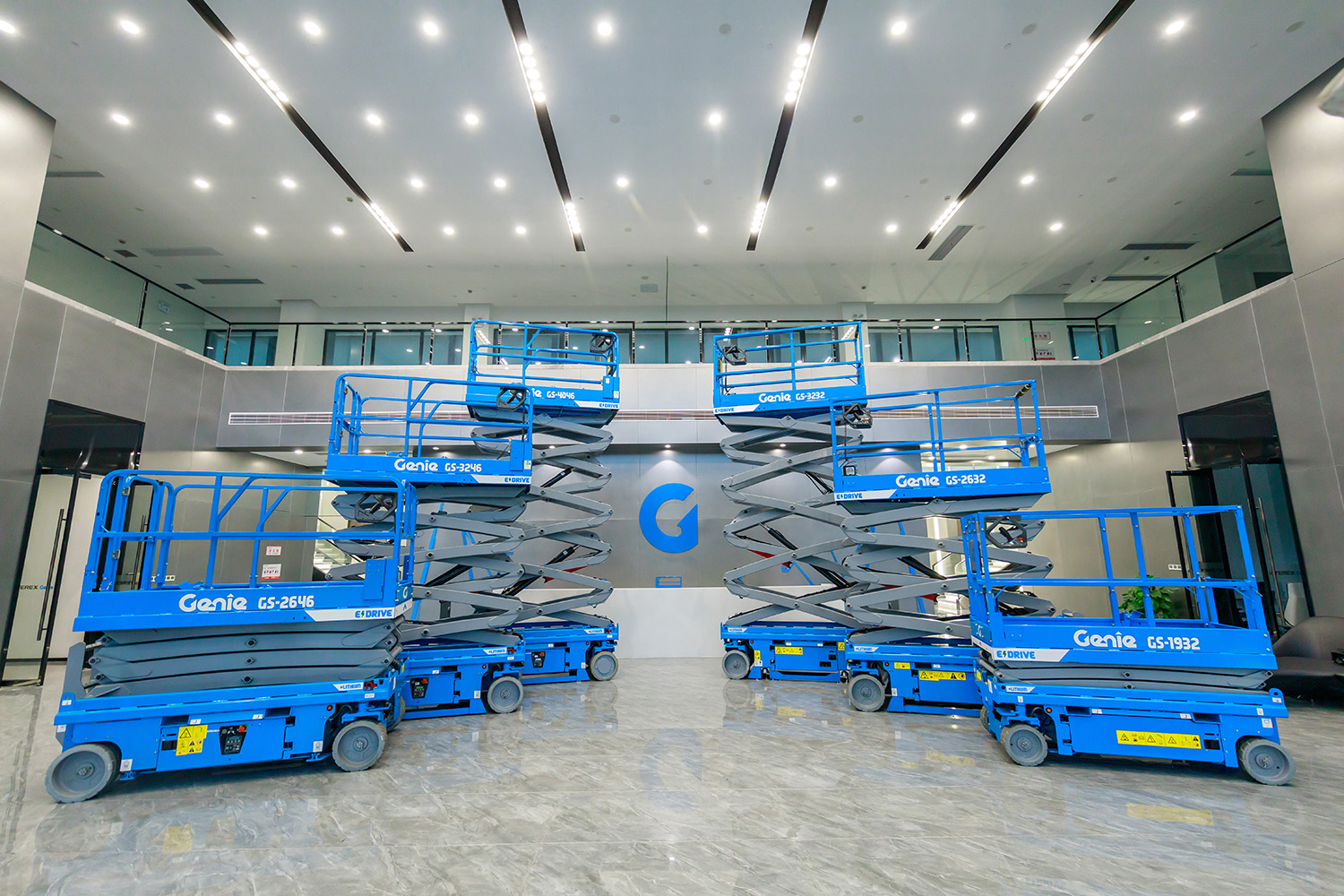

04d5ab01f3ea471bbaf79cd1b345420e.jpg?sfvrsn=1d7d29a8_1)

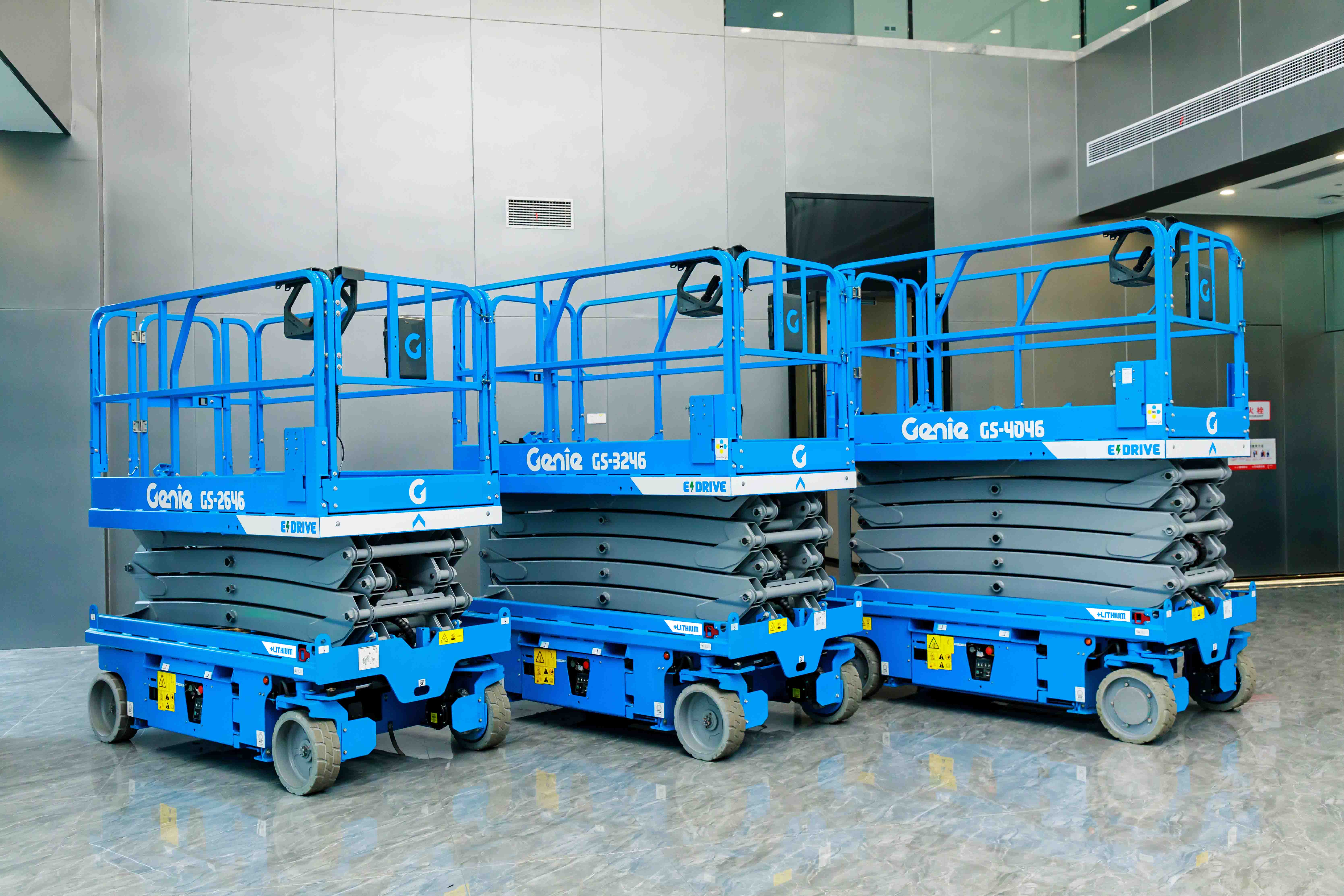

1a2b171e1a9b4008b73f8770a3abfdb2.jpg?sfvrsn=ce639abb_1)
