GS-3232
Slab Scissor Lifts
739ddddf111f436b8ddca63a33de2340.jpg?sfvrsn=a25a45e0_1)
The Genie® GS™-3232 slab scissor lift is an electric model ideal for operation in emission and sound-sensitive indoor and outdoor jobsites where space is limited. The standard, state-of-the-art Genie AC electric E-Drive system offers unmatched efficiency and runtime on installation, maintenance and construction jobs, especially when a significant amount of driving is required.
Overview

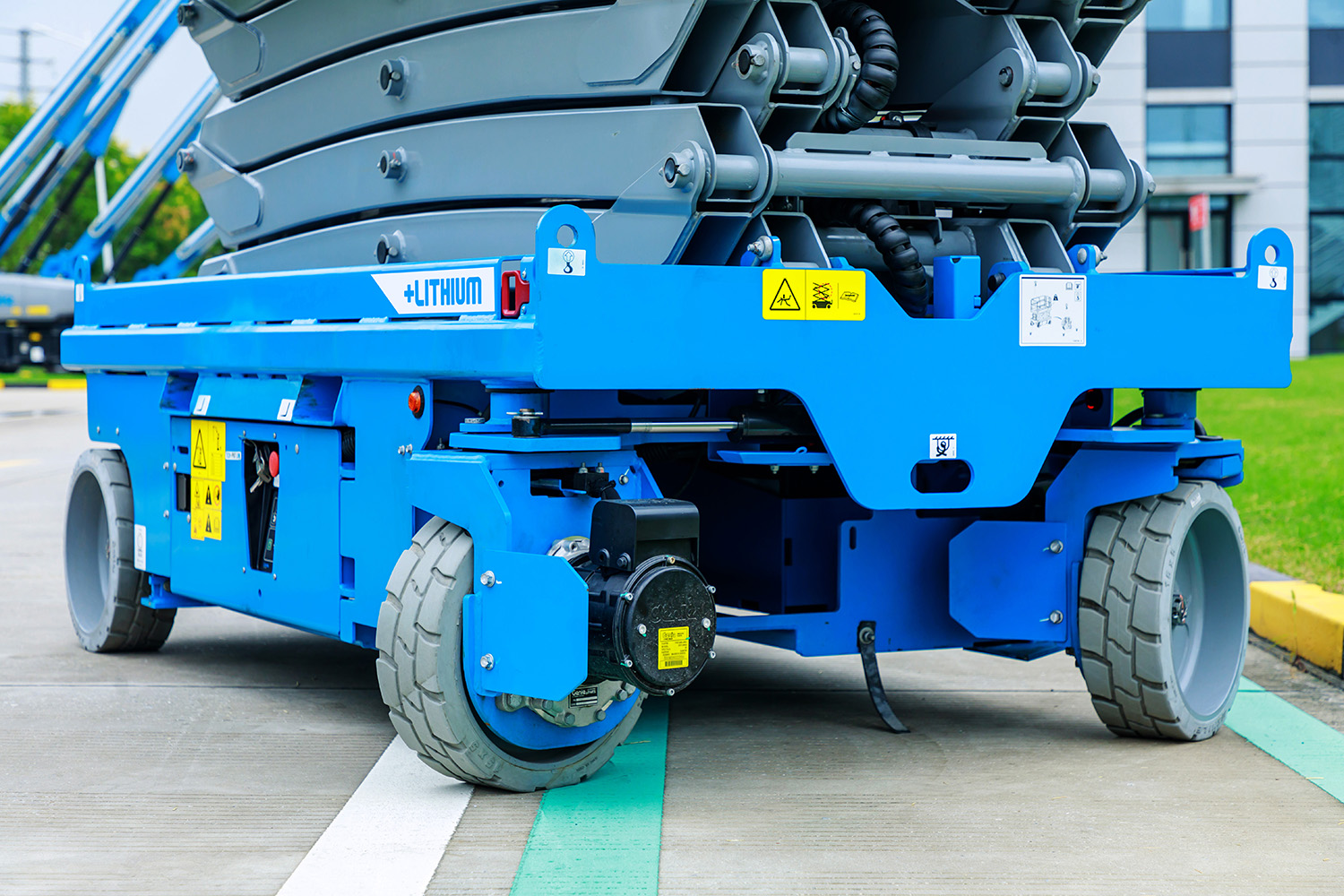

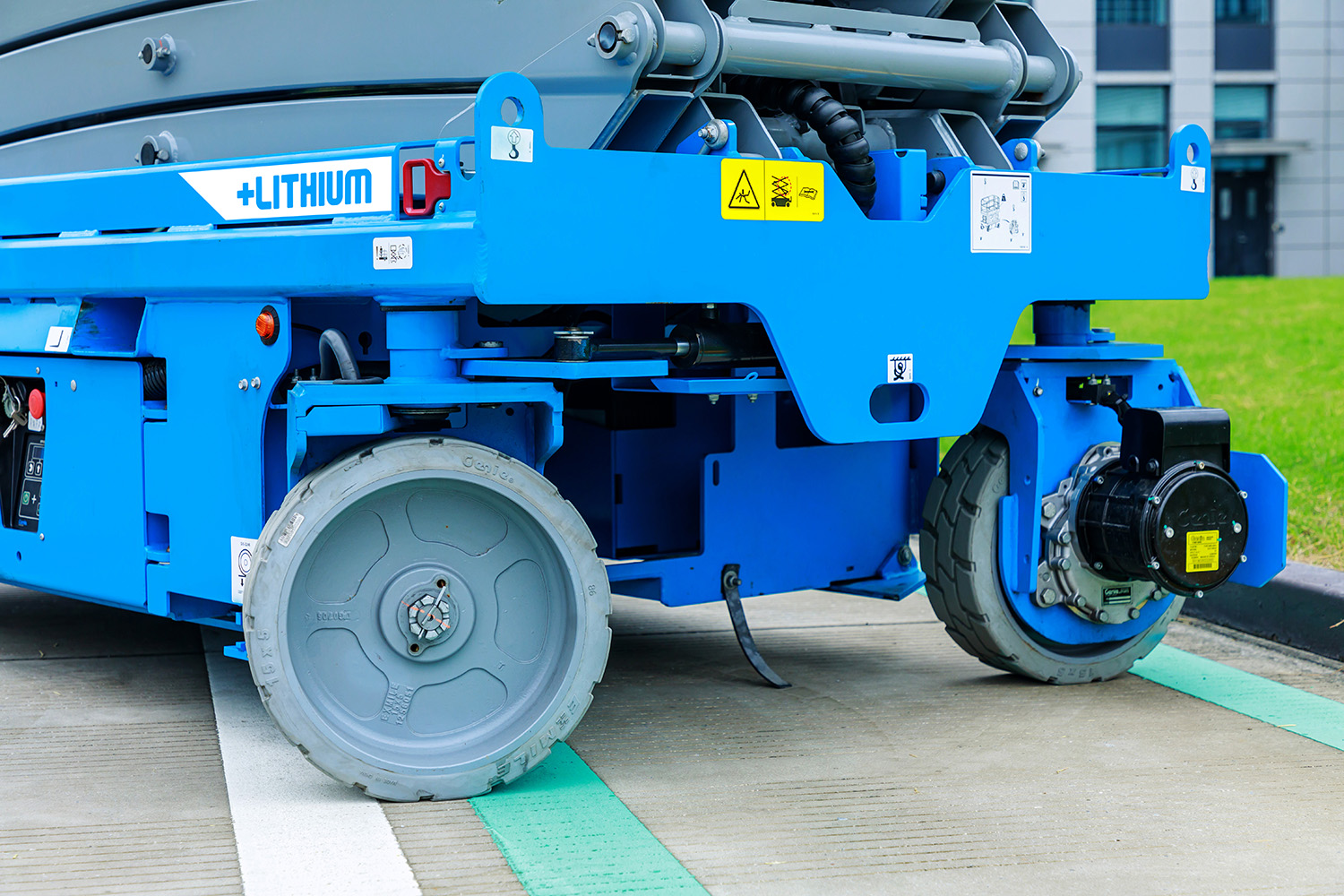

- Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
- Quiet, zero-emission electric operation

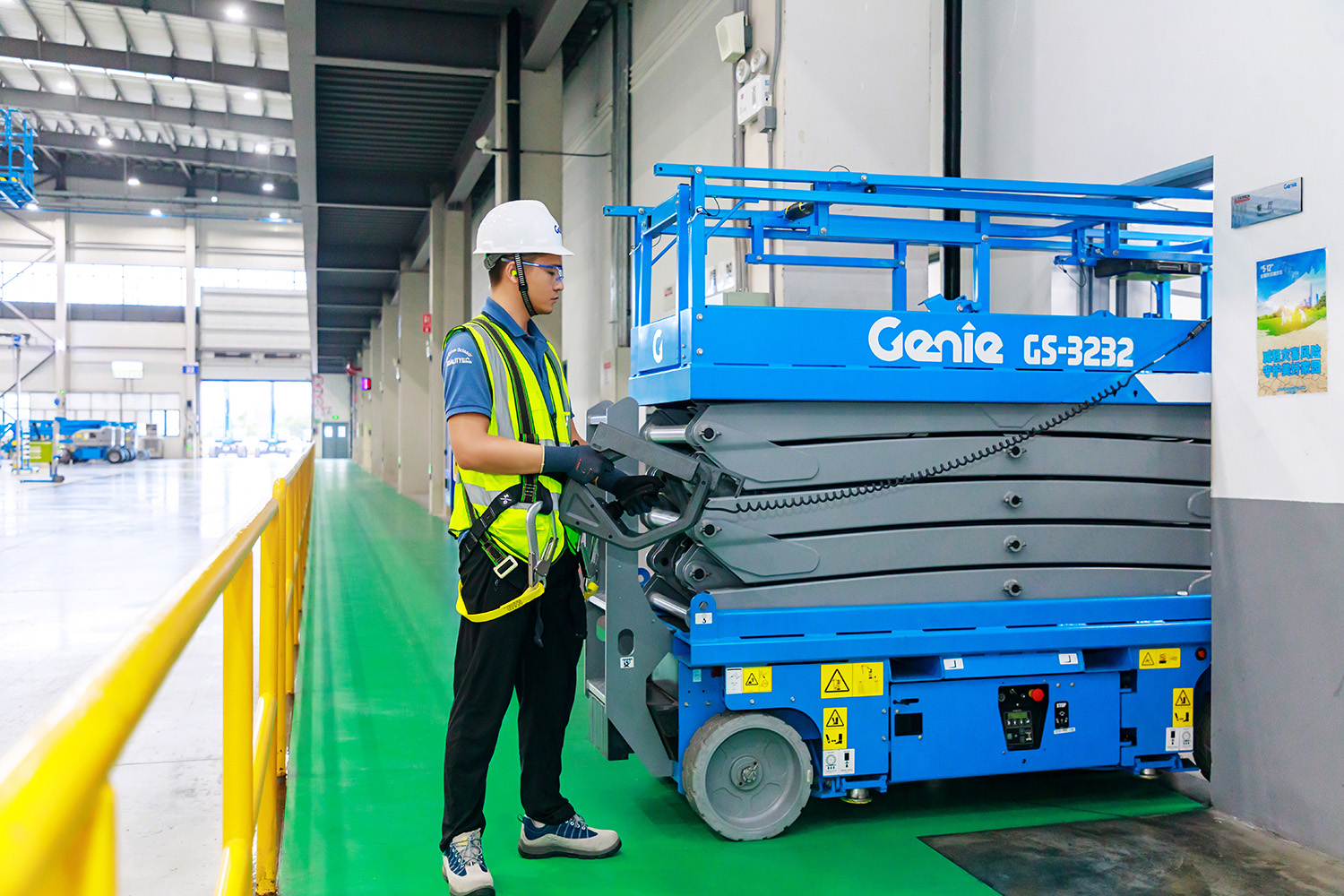

- Easy to manoeuvre in tight spaces
- Automatic leveling hydraulic outriggers level machine on slopes up to 5˚

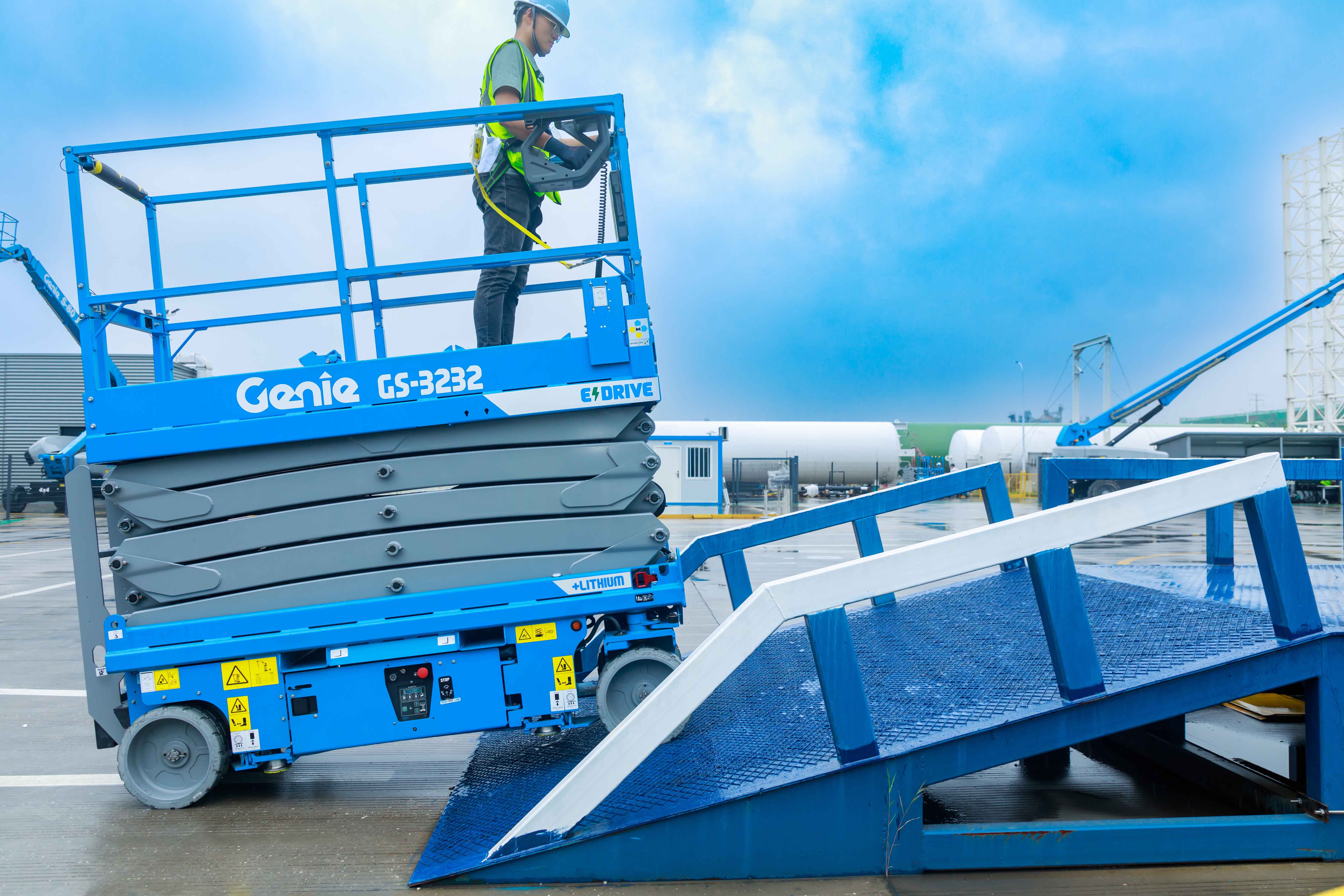

- 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
- Large platform workspace with 0.91 m (36 in) roll-out platform extension
- Swing out components trays for easy access
- Redesigned, user-friendly platform control box with Smart Link™ dual-zone controls for indoor and outdoor use
- Optional: Genie® Lift Tools™ Spill Guard hydraulic oil containment system

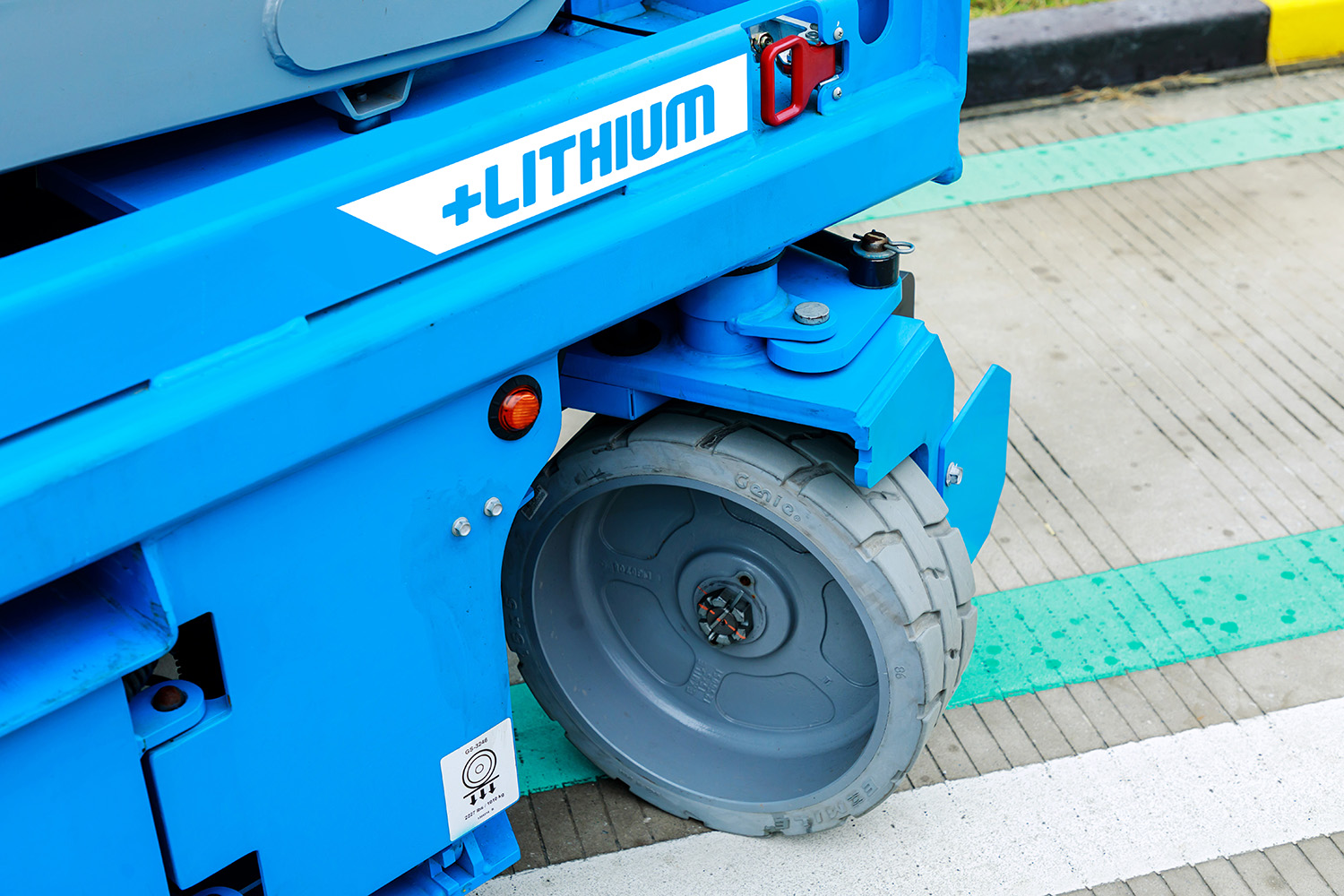

- Optional: Lithium-Ion battery
| Specification | Value |
|---|---|
| Max Working Height | 37 ft 8 in | 11.60 m |
| Platform Capacity | 500 lb | 227 kg |
| Machine Width | 2 ft 8 in | 0.81 m |
| Machine Length | 7 ft 9 in | 2.36 m |
| Weight | 5,404 lb | 2,451 kg |
- Scissor Lift Brochure 2019
- GS-3232 & GS-3246 Product Specifications 2024 ANSI
- GS-3232 & GS-3246 Product Specifications 2024 CE
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
