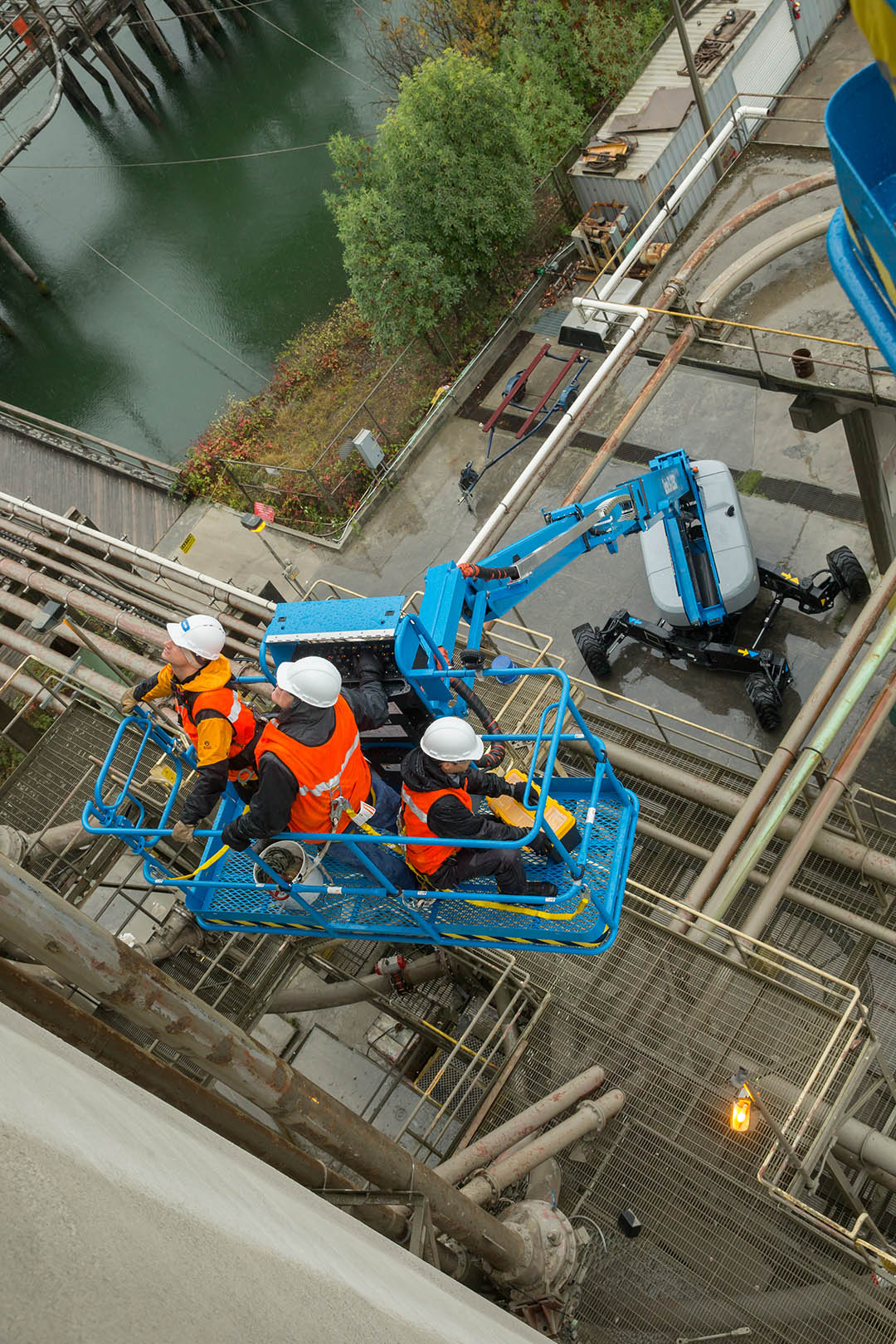

SX-125 XC
Telescopic Boom Lift
-(1).jpg?sfvrsn=f826353e_19)
Perfect for heavy lifting in construction, bridge inspections and maintenance, stadium and sports arena, oil and gas, industrial, telecommunications and utility applications, the Genie® SX™-125 XC™ telescopic boom lift works in more applications that require higher capacities thanks to its industry-leading dual lift capacity.
Overview
• Mini Genie X-Chassis® design for easy transport
• 1.52 m (5 ft) robust articulating jib
• Dual lifting capacity of 300 kg (660 lb) and 454 kg (1,000 lb) to lift increased loads and up to 3 operators
• Impressive below-grade capabilities (2.69 m / 8 ft 10 in)
• Automatic envelope control and chassis tilt sensor technology for smooth operation
• Zero-load field calibration and onboard diagnostics maximize serviceability
| Specification | Value |
|---|---|
| Max Working Height | 131 ft | 40.10 m |
| Max Horizontal Reach | 80 ft | 24.38 m |
| Below Ground Reach | 8 ft 10 in | 2.69 m |
| Platform Capacity | 660 lb Unrestricted, 1000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted |
| Machine Width and Length | 12 ft 11 in / 46 ft 9 | 3.94 m / 14.25 m |
- SX-105 XC & SX-125 XC Product Specifications 2023
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
