Z-45/25J DC
Articulated Boom Lifts

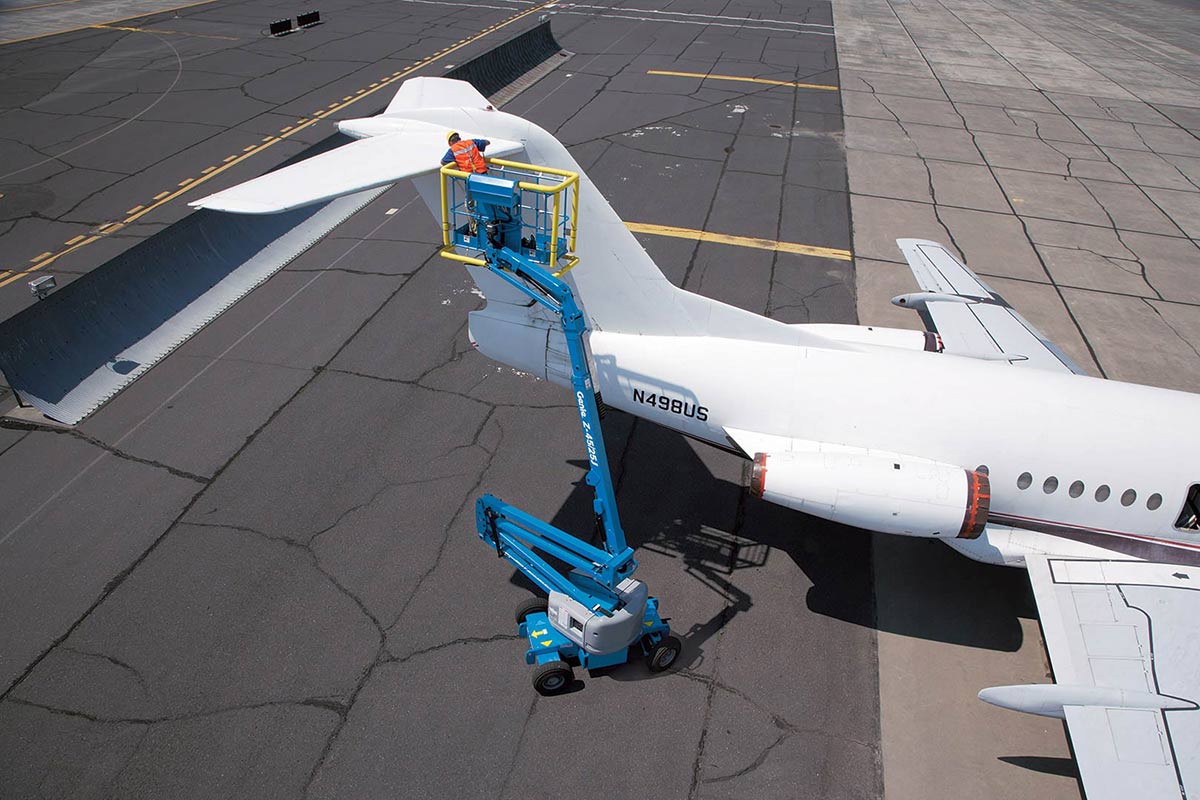

The Genie® Z®-45/25J DC electric articulating boom lift offer quiet, emission-free operation. With this Genie electric boom lift, operators can easily work close to buildings or around obstacles, and access overhead work from aisles and other congested areas.
Overview
• Zero tailswing and tight turning radius for easy manoeuvring in confined jobsites
• 30% gradeability and 4.8 km/h (3 mph) travel speed for excellent drive performance
• 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
• 160° hydraulic platform rotation and self-levelling platform for easy operation
• Large 1.83 m (6 ft) all-steel platform lifts up to 227 kg (500 lb)
| Specification | Value |
|---|---|
| Max Working Height | 51 ft 9 in | 15.94 m |
| Max Horizontal Reach | 25 ft 1 in | 7.65 m |
| Max Up and Over Clearance (riser extended) | 23 ft 9 in | 7.24 m |
| Platform Capacity | 500 lb | 227 kg |
- Z-45/25J DC - Product Specifications - 2022 - EN-GB
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
