GS-4046
.jpg?sfvrsn=ba0badf9_1)
Increase productivity in high-rise spaces with the Next-Generation Genie® GS™-4046 slab scissor lift. With a compact footprint ideal for work in narrow aisles, it features the state-of-the-art Genie AC electric E-Drive system for unmatched performance and runtime in high indoor and outdoor jobsites that require a significant amount of driving on level ground.
Overview
Overview
- Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
- Quiet, zero-emission electric operation
- Easy to manoeuvre in tight spaces and to drive through standard double doors

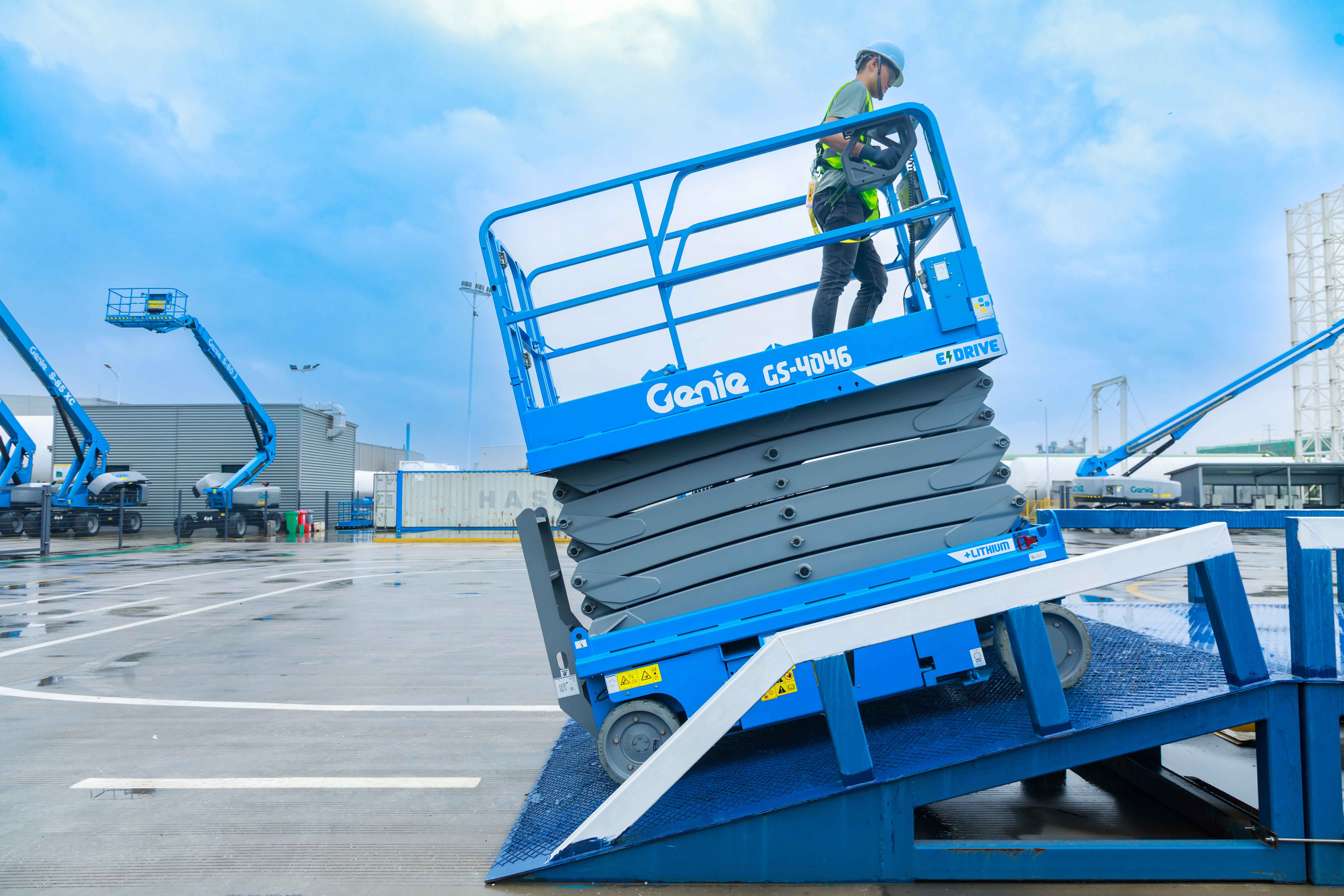

- 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
- 3 person max platform occupancy indoors and 1 person max platform occupancy outdoors
- Redesigned, user-friendly platform control box with Smart Link™ dual-zone controls for indoor and outdoor use
- Optional: Genie® Lift Tools™ Spill Guard hydraulic oil containment system

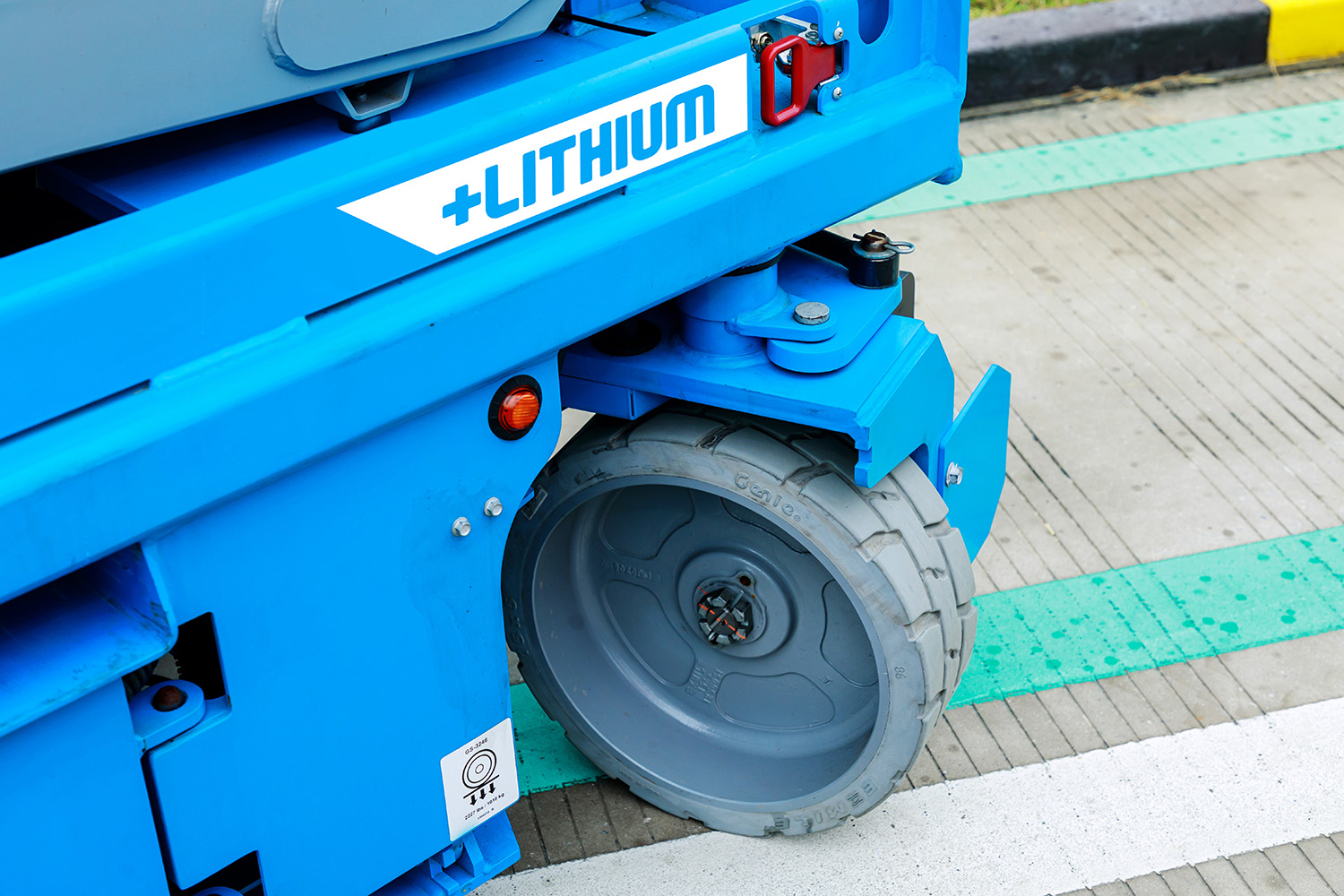

- Optional: Lithium-Ion battery
| Specification | Value |
|---|---|
| Max Working Height | 45 ft 1 in | 13.91 m |
| Platform Capacity | 700 lb | 318 kg |
| Machine Width | 3 ft 10 in | 1.17 m |
| Machine Length | 7 ft 9 in | 2.36 m |
| Weight | 6,268 lb | 2,843 kg |
- GS-4046 Product Specifications 2024 AU
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
