GS-2646
Slab Scissor Lifts
.jpg?sfvrsn=b284d04c_1)

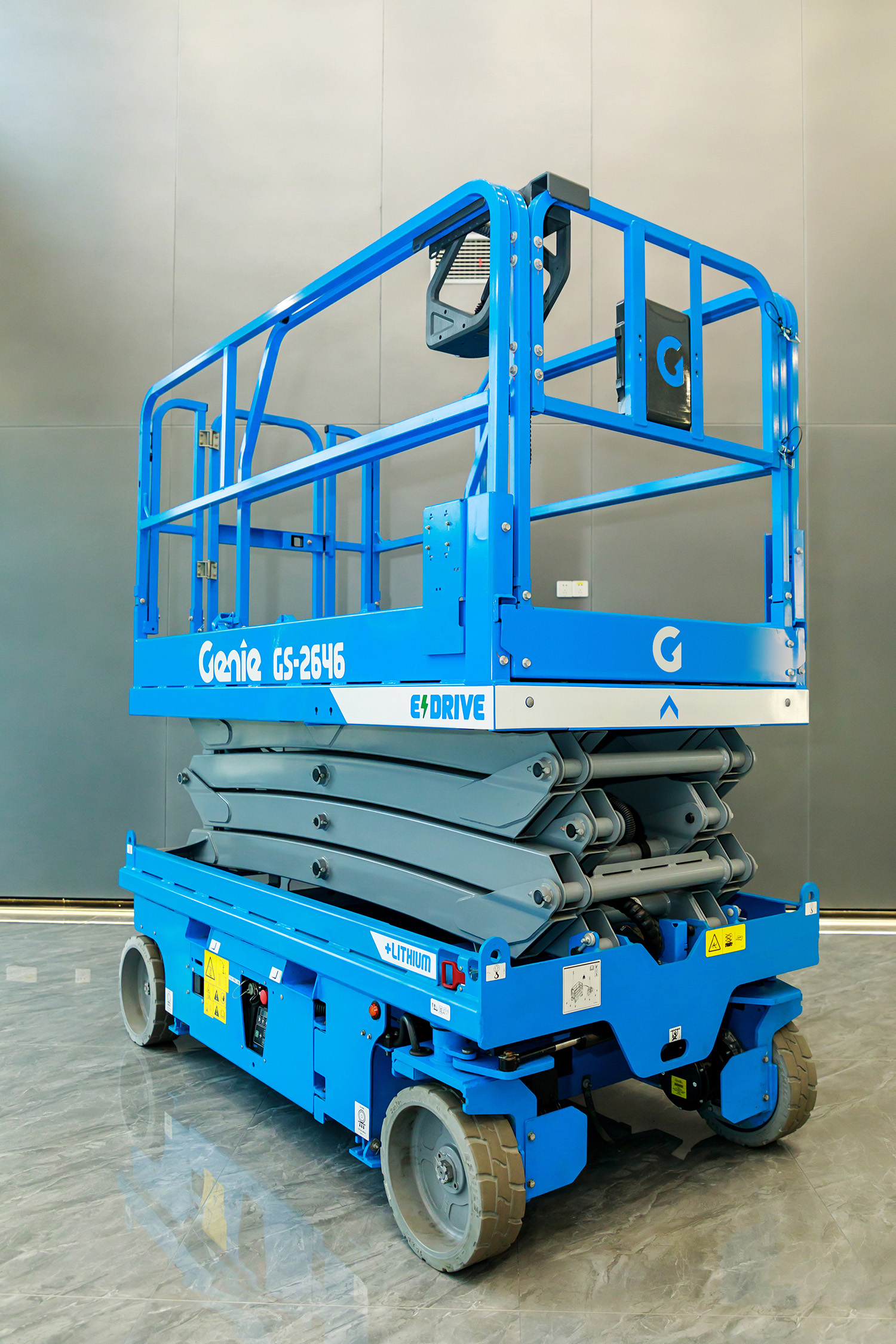

The Genie® GS™-2646 E-Drive slab scissor lift is suitable for work indoors and outdoors on firm, level surfaces where space is limited. Its state-of-the-art Genie AC electric E-Drive system offers unmatched efficiency and runtime on installation, maintenance and construction jobs where a significant amount of driving is required.

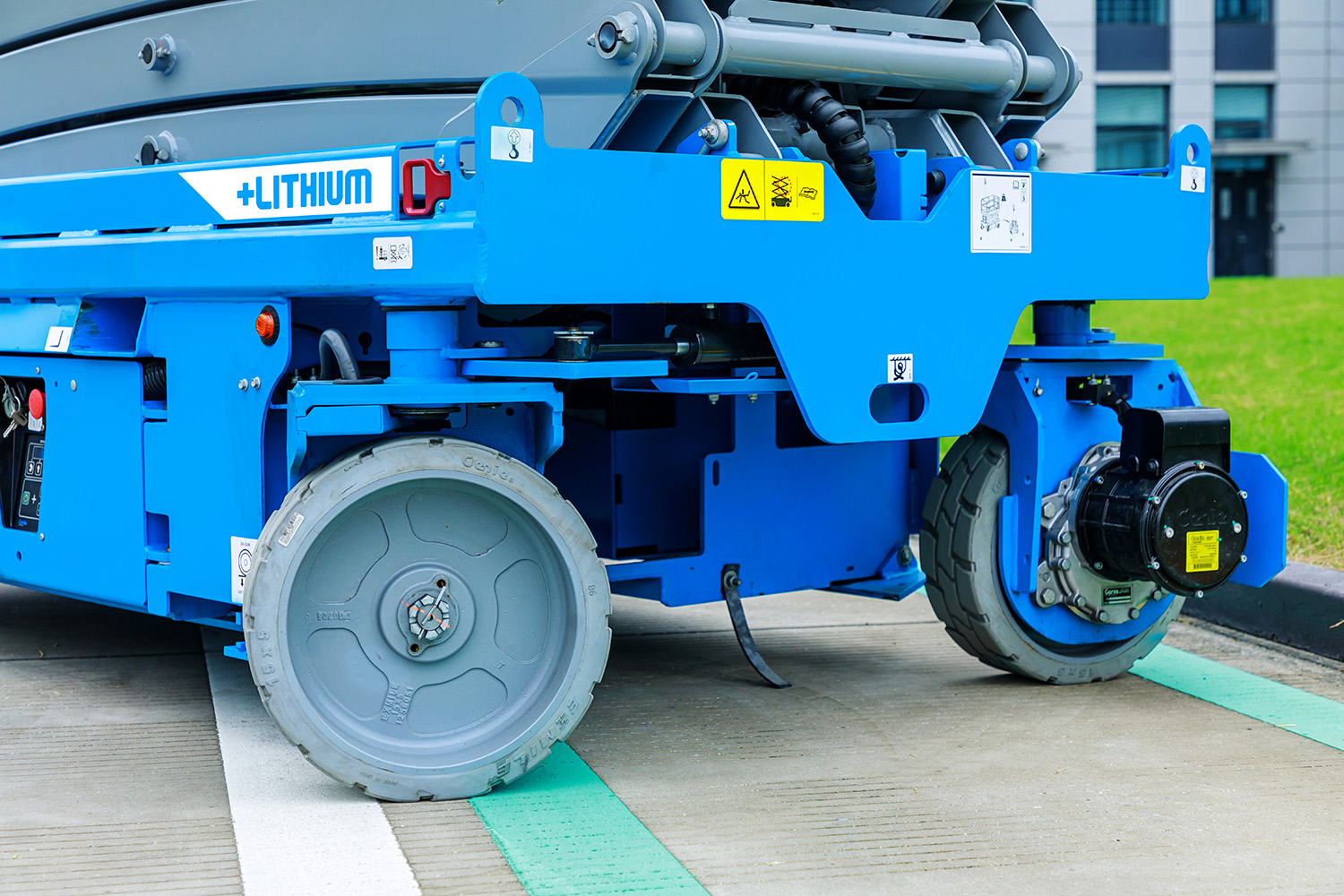

Overview- Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
- Quiet, zero-emission electric operation
- Front-wheel drive and zero inside turning radius for easy positioning
- 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
- Large platform workspace with 0.91 m (36 in) roll-out platform extension
- Swing out components trays for easy access
- Redesigned, user-friendly platform control box with Smart Link™ dual-zone controls for indoor and outdoor use
- Optional: Genie® Lift Tools™ Spill Guard hydraulic oil containment system
- Optional: Lithium-Ion battery
| Specification | Value |
|---|---|
| Max Working Height | 31 ft 9 in | 9.85 m |
| Platform Capacity | 1,000 lb | 454 kg |
| Machine Width | 3 ft 10 in | 1.17 m |
| Machine Length | 7 ft 9 in | 2.36 m |
| Weight | 4,286 lb | 1,944 kg |
- GS-2632 & GS-2646 Product Specifications 2024 AU
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
