Z-45/25J RT
Articulated Boom Lifts

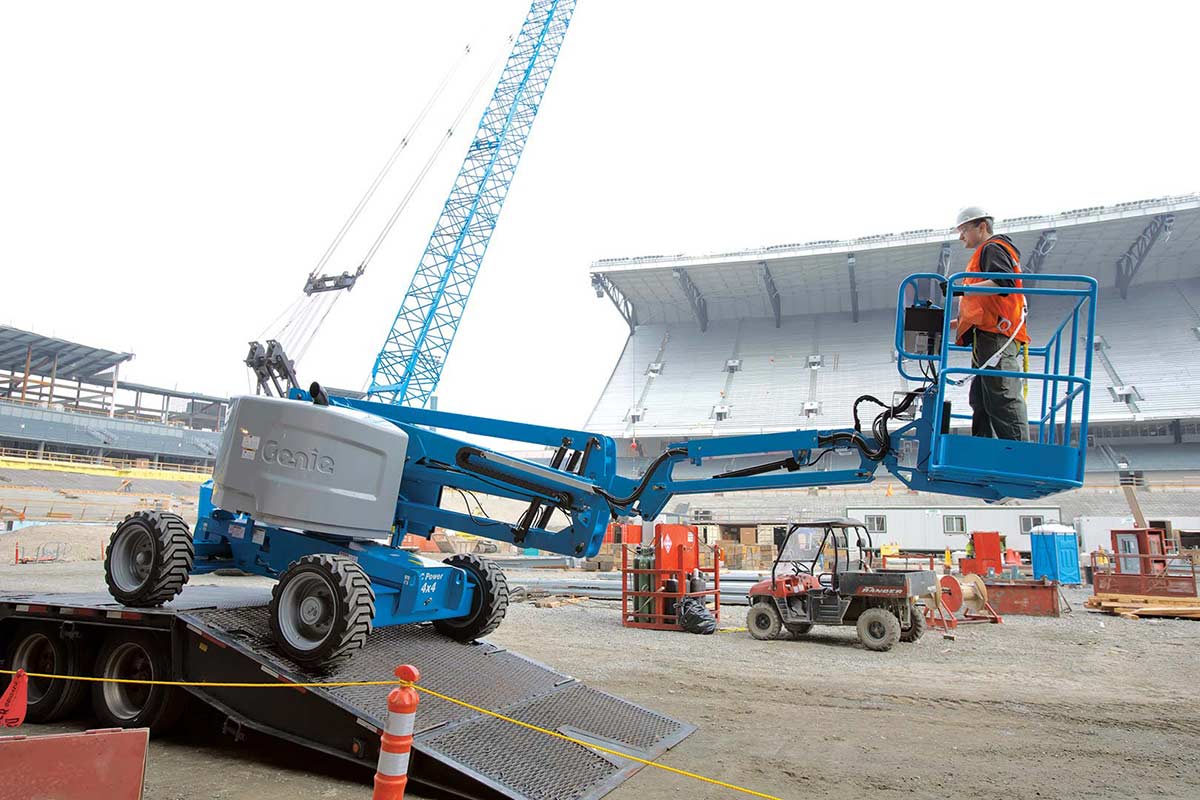

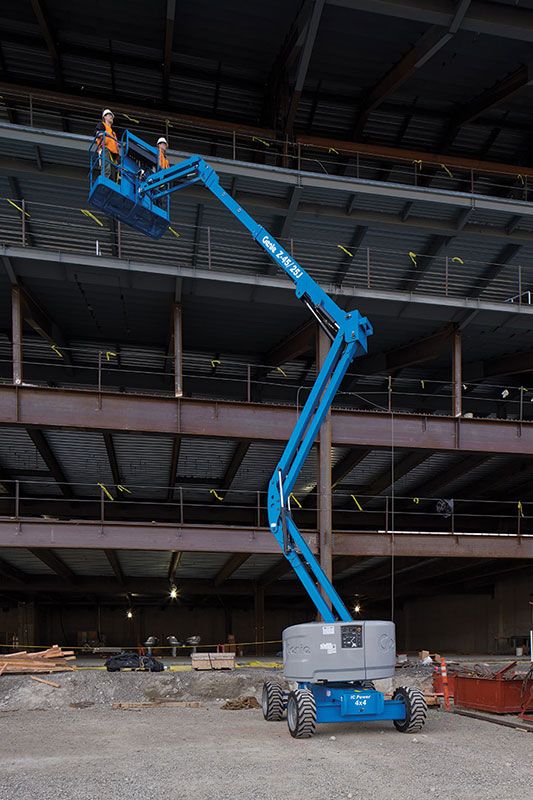

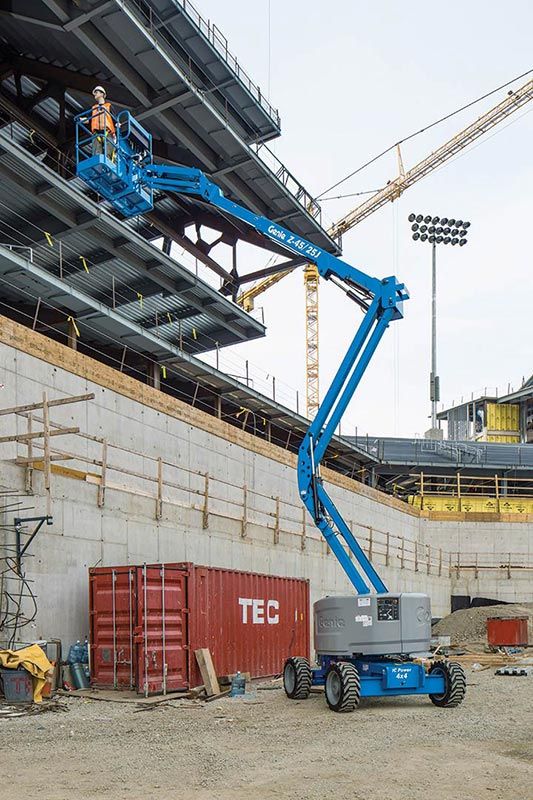

Ideal for outdoor construction and industrial applications, the Genie® Z®-45/25J RT articulating boom lifts provide lifting versatility with a combination of up, out and over positioning capabilities with outreach that’s second to none. These models’ tight turning radius and zero tailswing make for easy maneuvering in confined work areas.
Overview
- Full-time active swing shaft for easy handling of rough ground site applications
- All-wheel drive, 45% climbing force, excellent all-terrain capability
- The double parallelogram structure and full-scale control system allow the equipment to be accurately positioned and driven smoothly
- The 1.52 m short arm can work vertically in a range of 135° for more precise job positioning
- The 160° hydraulic rotary turntable and self-leveling platform make equipment operation easier
| Specification | Value |
|---|---|
| Max Working Height | 52 ft 1 in | 16.05 m |
| Max Horizontal Reach | 24 ft 7 in | 7.49 m |
| Max Up and Over Clearance (riser extended) | 23 ft 5 in | 7.14 m |
| Platform Capacity | 500 lb | 227 kg |
- Z-45/25J RT - 2022 Product Specifications (SEA)
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
Chassis Options
- Tow package
Tires Options
- High floatation tires: requires 4WD
- Rough terrain foam-filled tires (water based)
- Rough terrain foam-filled tires (petroleum based)
- Rough terrain, non-marking air-filled tires
- Rough terrain, non-marking foam-filled tires (water based)
- Rough terrain, non-marking foam-filled tires (petroleum based)
- Tire sealant: air-filled tires only
Engine Options
- 60 hp Ford MSG425 gas/LPG Dual Fuel
- Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater and hydraulic tank heater
- Ford engine gauge package: oil pressure, temperature and voltage
Lift/Turntable Options
- Specialty hydraulic oil (28 gal - cold weather, fire resistant, or biodegradable)
- LPG tank, 33.5 lb. capacity: Ford engine only
- Hostile environment kit - cylinder bellows, boom wiper seals, lockable platform control box covers and air pre-cleaner
Platforms
- 6 ft. dual entry platform with ½ height mesh inserts and side swing gate
- 4 ft. steel platform
Platform Options
- AC generator, 110V/60Hz or 220V/50Hz, 2200W: includes Hydraulic oil cooler
- Air line to platform: ? in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Aircraft protection kit with swing gate
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform control box cover
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Hydraulic oil cooler: standard on 4WD
- Traveling fall arrest anchor system: requires 6ft platform
