TZ-50

Trailer Mounted Boom Lifts

Genie TZ-50 trailer mounted boom lift

For the ultimate in reach and range, the Genie® TZ™-50 trailer mounted boom offers outstanding up, out and over capabilities in a compact, lightweight package that is easy to maneuver in congested work areas.

Overview

  • Ground and platform controls use symbols to simplify operation
  • Optional Drive and Set™ feature lets operators drive the unit from the platform when fully lowered
  • 359˚non-continuous turntable rotation for versatile positioning
  • Illuminated outrigger indicators
  • Tilt alarm/sensor for added safety
Specification Value
Max Working Height 55 ft 6 in | 17.09 m
Horizontal Reach 29 ft 2 in | 8.89 m
Platform Capacity 500 lbs | 227 kg
Up and Over Clearance 22 ft | 6.7 m
Weight 4,400 lb | 1,996 kg

Chassis Options

  • Drive and set option includes high capacity battery
  • Non-marking outrigger foot pads
  • Spare tire
  • Wheel chocks

Hitch Options

  • 2 inch ball coupler (lever lock or Bulldog™)
  • 2 5/16 inch ball coupler (lever lock or Bulldog™)
  • 2 1/2 inch (6.53 cm) I.D. pintle ring coupler
  • Clevis coupler

Lift/Turntable Options

  • Battery charge indicator (BCI)
  • Flashing beacon
  • High capacity battery
  • Horn

Platform Options

  • 160 degree hydraulic platform rotation
  • Fluorescent tube caddy
  • Tool tray
Range of motion - Genie TZ-50 trailer-mounted boom lift

Related News


Aerial Pros Tile Thumbnail

Advantages of Li-Ion Batteries

Electric scissor lifts of today are typically powered by lead-acid batteries, which are comprised of a number of lead plates in a bath of acid.

Continue Reading

...
Aerial Pros Tile Thumbnail

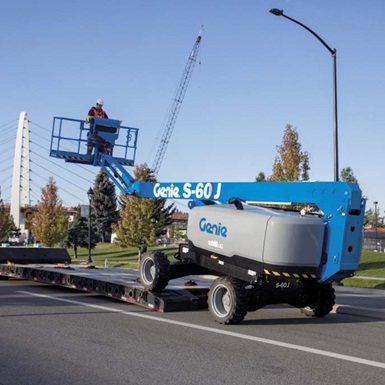

Tips for Transporting a Boom Lift

Booms lifts are common equipment on a variety of different jobsites. But before you can start working with a boom, you have to get it to the jobsite. To do this safely and efficiently, there are some important considerations.

Continue Reading

...
Aerial Pros Tile Thumbnail

Extreme Height MEWP Applications

Over the past two decades, as jobsite needs have continued to evolve, manufacturers like Genie® have developed boom lifts that can reach higher, lift more, and tackle more extreme applications, providing more and more options for accessing tall, hard-to-reach jobsites.

Continue Reading

...
Aerial Pros Tile Thumbnail

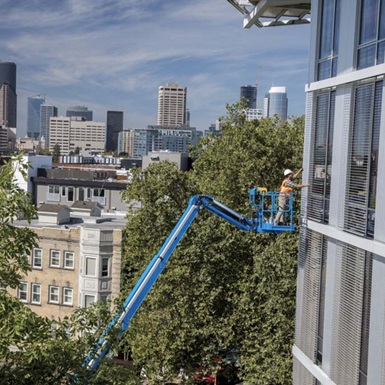

Quality By Design
