Z-34/22 IC
Articulated Boom Lifts
Ideal for outdoor construction and industrial applications, the engine-powered Genie® Z®-34/22 IC articulating boom lift provides lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none.
Overview
- Zero tailswing and nose swing in all positions allow excellent manoeuvrability in confined areas
- Two speed hydraulic motors drive and efficient power transmission for optimum speed and torque on rough terrain
- 4WD and up to 45% gradeability for superior terrainability
- Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
- 4 ft (1.22 m) articulating jib with a 139° vertical rotation and 180° hydraulic platform rotation to accurately position workers
| Specification | Value |
|---|---|

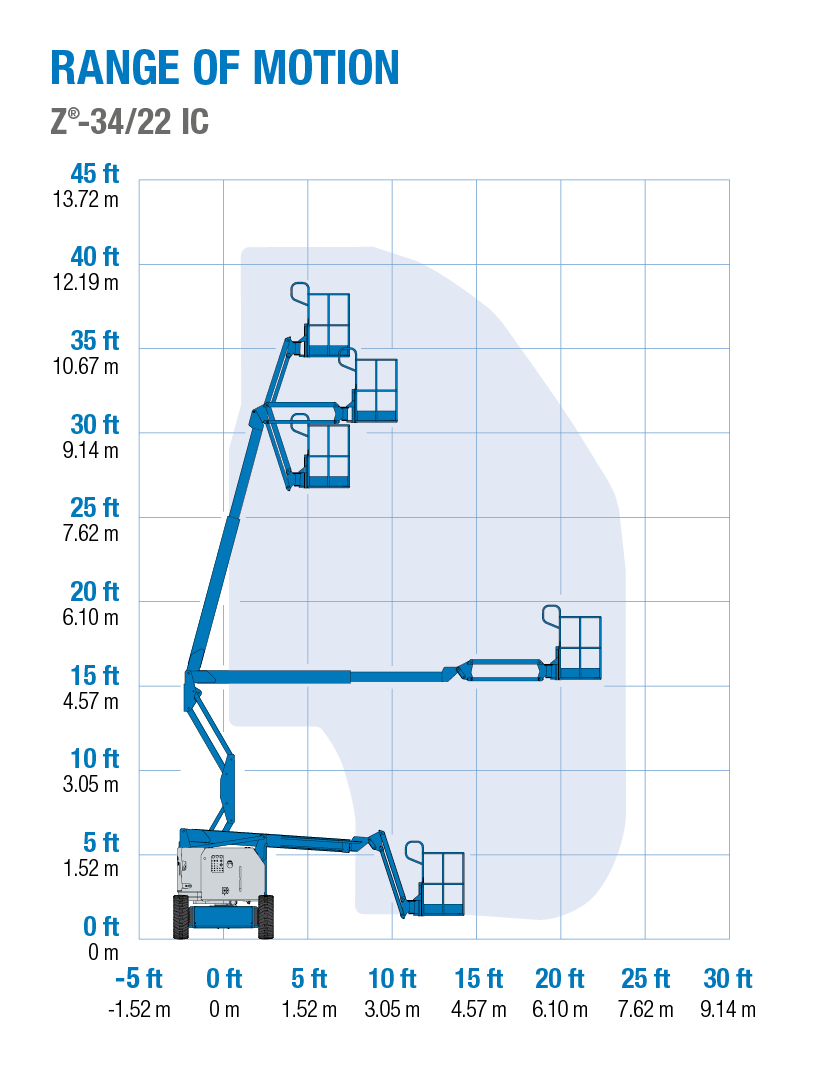

| Max Working Height | 40 ft 7 in | 12.54 m |
| Max Horizontal Reach | 22 ft 3 in | 6.78 m |
| Max Up and Over Clearance (riser extended) | 15 ft 1 in | 4.60 m |
| Platform Capacity | 500 lb | 227 kg |
- 2022 Spec Sheet Z34-22IC ANSI (SEA)
- To view earlier versions of this specification sheet, please click here and look up for your machine Operator Manual by serial number.
The relevant specification data will be on the last page.
Tire Options
- 4WD Rough-terrain foam-filled tires (water based)
- Tire sealant: air-filled tires only
Engine Options
- 28 hp GM, gas / LPG Dual Fuel, including gauge package
- Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater
- Engine gauge package, Kubota: oil pressure, temperature and voltage
Lift/Turntable Options
- AC generator, 110V/60Hz or 220V/50Hz, 2200W, hydraulically driven
- Specialty hydraulic oil (22 gal - cold weather, fire resistant, or biodegradable)
- LPG tank, 33.5 lb. capacity: GM gas/LPG engine only
- Hostile environment kit: cylinder bellows, boom wiper seals and platform control box cover
Platforms
- 4 ft. platform
- 4ft. or 4 ft. 8 in. platform with ½ height mesh inserts and swing gate
Platform Options
- Aircraft protection kit : 4ft. 8in. platform foam padding and padded disable system
- Entry toe boards
- Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
- Lockable platform control box cover
- Platform auxiliary top rail
- Platform swing gate
