GR-20J

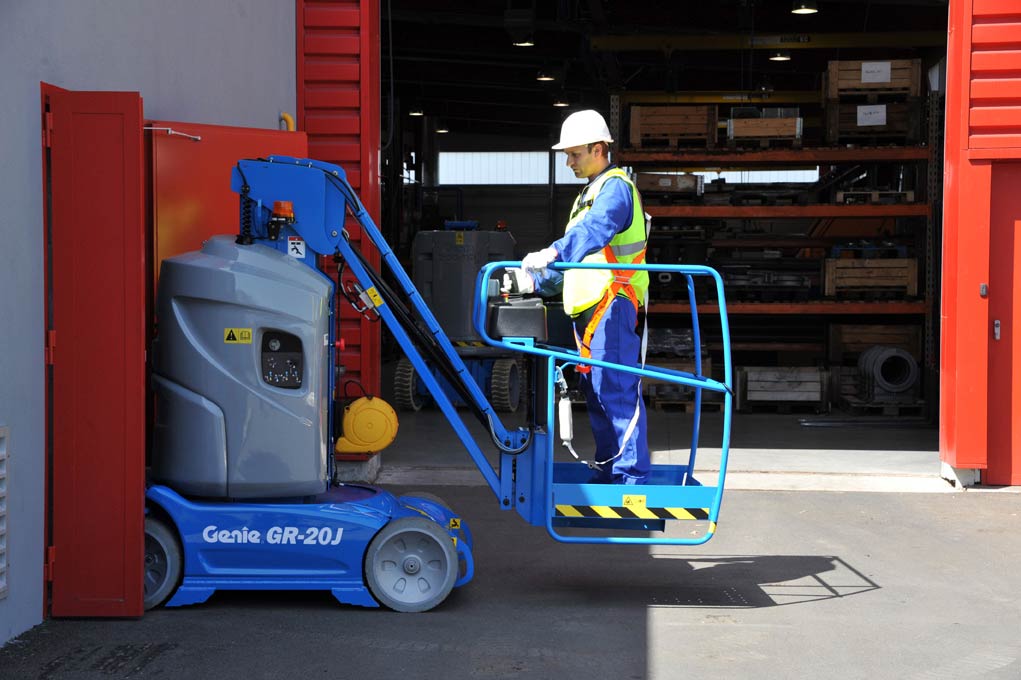

Genie GR-20J vertical mast lift

The Genie® Runabout® GR-20J™ lift is a jib machine that offers outreach capability to get virtually any job done, allowing for exceptional range of motion and precise positioning. These capabilities combined with the efficient electric drive motors and a tight inside turning radius make the Genie Runabout GR-20J lift the solution for congested, hard-to-reach jobsite applications.

Overview

  • Indoor and outdoor use
  • Compact dimensions to fit through industrial doorways
  • 25% gradeability
  • Narrow inside turning radius
  • Driveable when fully elevated
  • Hydraulic turntable rotation for precise positioning
  • Durable, maintenance-free steel hydraulic mast
  • 140º rotation jib for precise up-and-over access and exceptional range of motion
  • Proportional lift and drive controls
  • Robust steel platform to accommodate up to 2 operators (indoors)
Specification Value
Working Height 25 ft 3 in | 7.70 m
Capacity 440 lb | 200 kg
Stowed Height 6 ft 6 in | 1.99 m
Machine Width 3 ft 3 in | 99 cm
Weight 4,960 lb | 2,250 kg
